Products > Drilling > Drill Chamfer Tools > T-A Pro® > T-A Pro® Drill and Chamfer - Overview

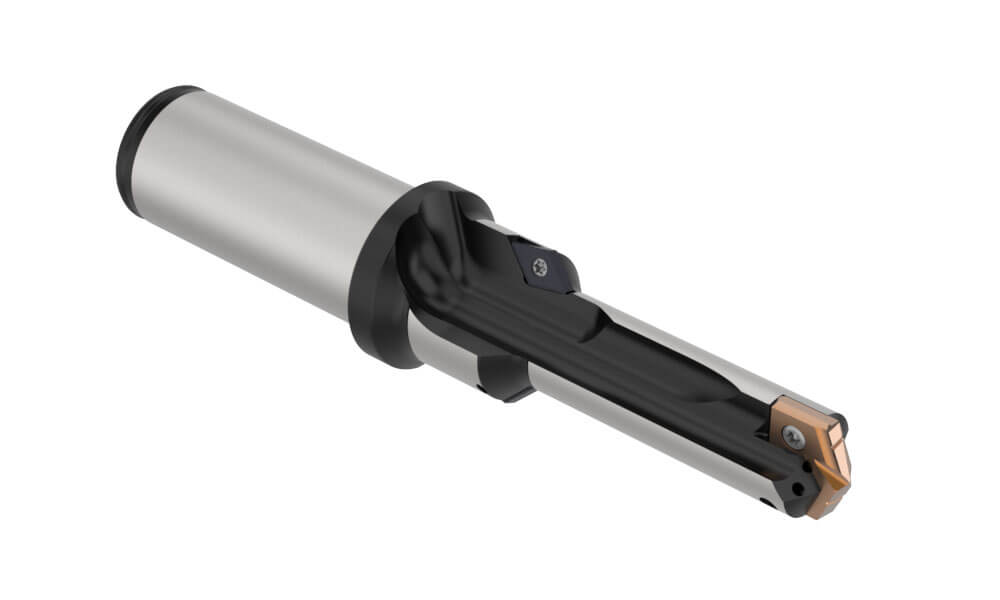

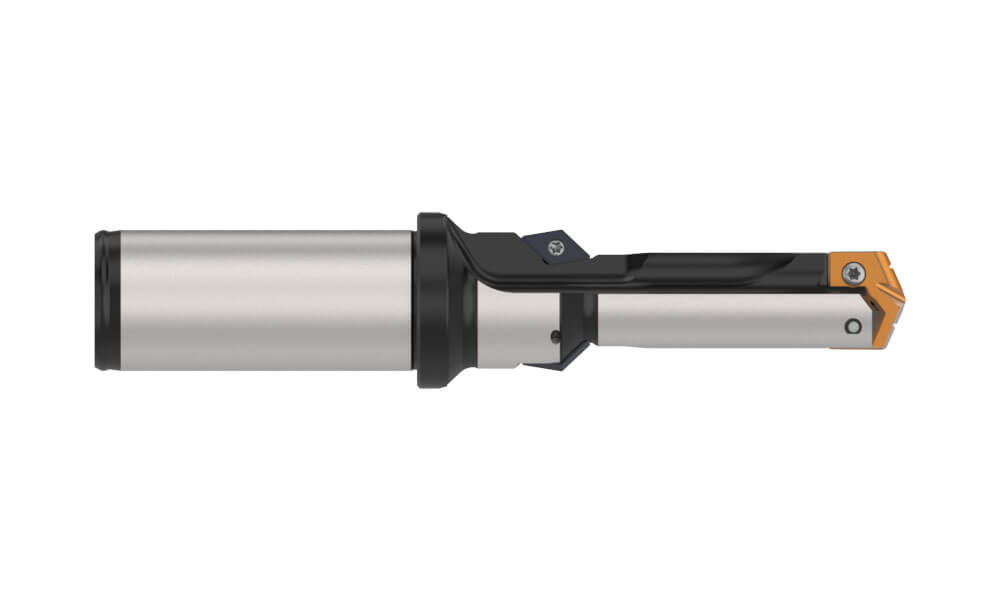

T-A Pro® Drill and Chamfer
The T-A Pro drill and chamfer holders provide the ability to drill and chamfer a hole in a single operation, eliminating the need for secondary operations like chamfering and/or deburring. These holders offer a competitive advantage with the large range of diameters that can be drilled and chamfered with a single tool—delivering more flexibility out of a single drill body without sacrificing performance.

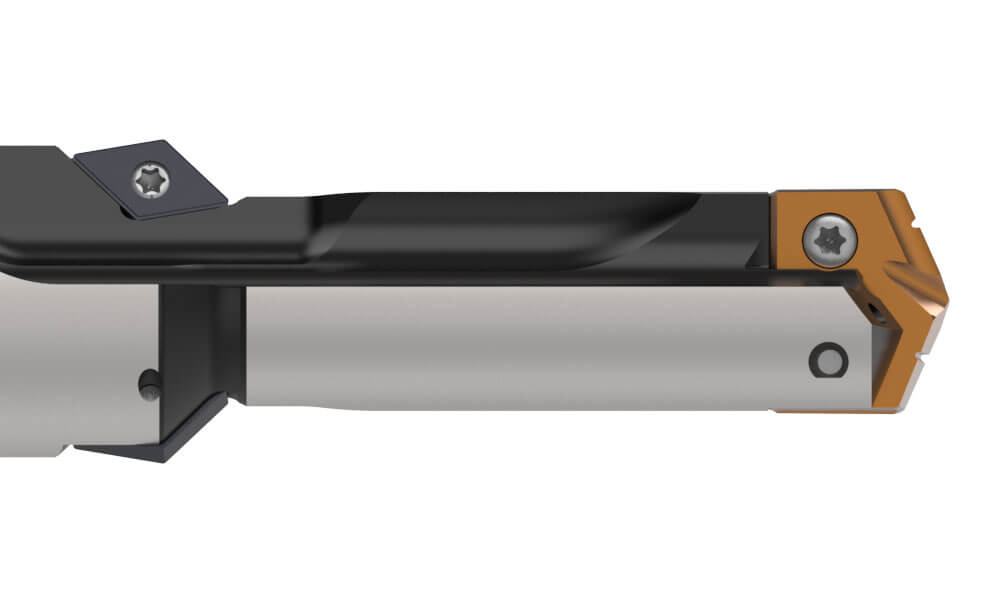

  • Provide a 0.040"(1.0 mm) x 45°(minimum) chamfer for various thread specifications.
  • Chamfer/edge break the top of the hole to reduce secondary deburring.
  • Flute length of the tool being at a minimum 2xD offers ability to pre-drill for extended length holders from 10xD to 15xD.
Advantages
  • Drill and chamfer in a single operation.
  • Large range of diameters that can be drilled and chamfered with a single tool.
  • Targeted around standard thread sizes offers selection guides for easier user reference.
Features
  • Thread specifications: UN | ISO | NPT | NPS | BSPP | BSPT | BSW.

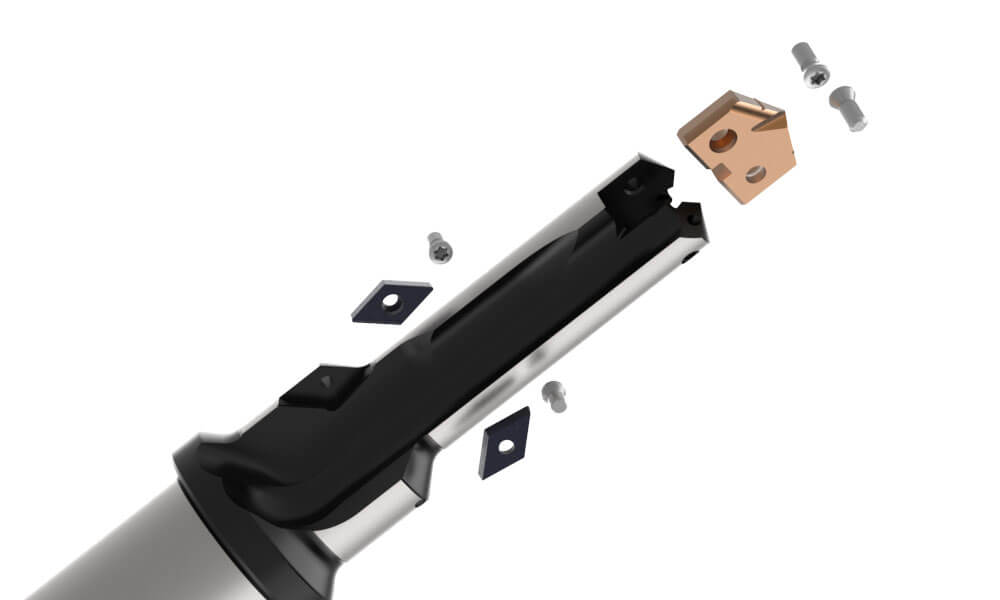

  • Compatible with all T-A Pro inserts.
  • Customized solutions tailored to specific applications are available.
Contact Engineering Support
Recommended Materials
Materials
x
Key Icon Steel
Material Key Icon High Temp Alloy
Key Icon Stainless Steel
Material Key Icon Hardened Steel
Key Icon Cast Iron
Material Key Icon Non-Ferrous
KeyIcon Reference

Material Key Icon
Material Key Icon
Material Key Icon
Material Key Icon
Material Key Icon



Recommended Industries
Industries
x
Key Icon Medical
Industry Key Icon Renewable Energy/ Energy
Key Icon Automotive
Industry Key Icon Aerospace
Key Icon Firearms
Industry Key Icon Agriculture
Key Icon Oil and Gas
Industry Key Icon Marine
Key Icon General Production
Industry Key Icon Heavy Equipment
Key Icon Hydraulics
Industry Key Icon Tool, Mold, and Die
Key Icon Structural Steel Fabricator
Key Icon Reference
Industry
Industry
Industry
Industry
Industry
Industry
Industry
Industry
Industry



Technical Information
Product Specifications
Diameter Range
0.3739" - 1.8820" (9.50 mm - 47.80 mm)
ISO Material
Steels (P), Cast Irons (K), NonFerrous Materials (N), Stainless Steel (M)
Coating
AM300®, AM200®, AM460, TiAlN, TiCN
Flute Options
Straight
Shank Options
Flange (with or without flat)
Coolant
Coolant Through

Product Nomenclature
T-A Pro Drill Chamfer Holders
Holder
x
HTA=T-A Pro Holder
HTA
Series
x
Y = Y Series
Z = Z series
0 = 0 series
1 = 1 series
2 = 2 series
3 = 3 series
Z
Body Diameter Size
x
A = A body diameter
C = C body diameter
A
Drill Chamfer
x
C45 = Drill Chamfer Holder
C45
-
Shank Designator
x
Imperial
075 = 3/4"
100 = 1"
125 = 1-1/4"
150 = 1 1/2"
Metric
20 = 20mm
25 = 25mm
32 = 32mm
40 = 40mm
075
Shank Code
x
F = Flanged Shank (with flat)
C = Cylinderical Shank (no flat)
FM = Flanged Shank - metric (with flat)
​CM = Cylinderical Shank - metric (no flat)
F
Replaceable Insert Drilling
Literature Thumbnail

View Pdf
Download Pdf
Email Pdf
Literature Order Number: A25-TAP

Recommended Cutting Data
T-A Pro® Carbide
T-A Pro® High-Speed Steel
