APX™ Drill    360 Icon

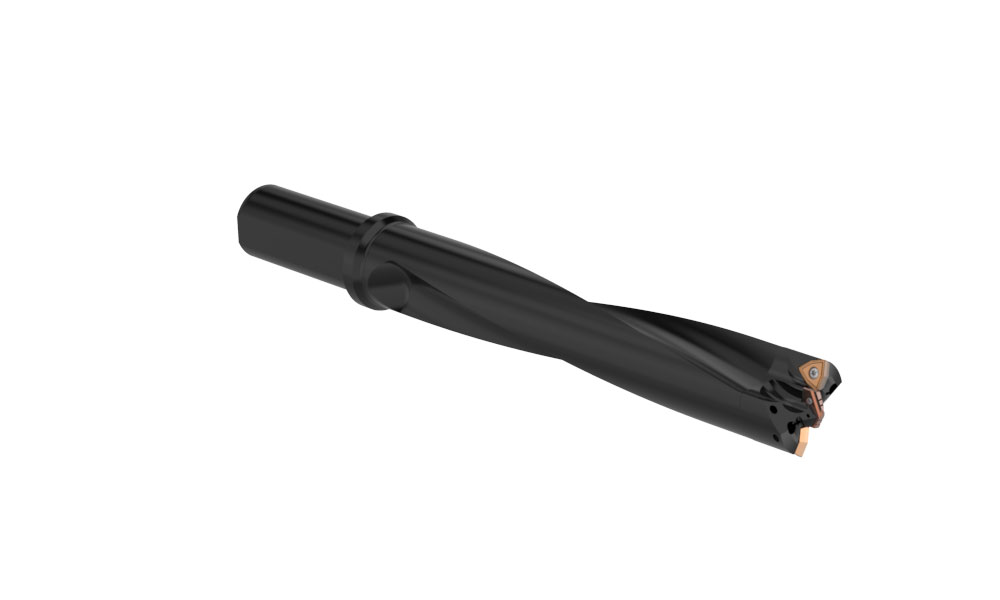

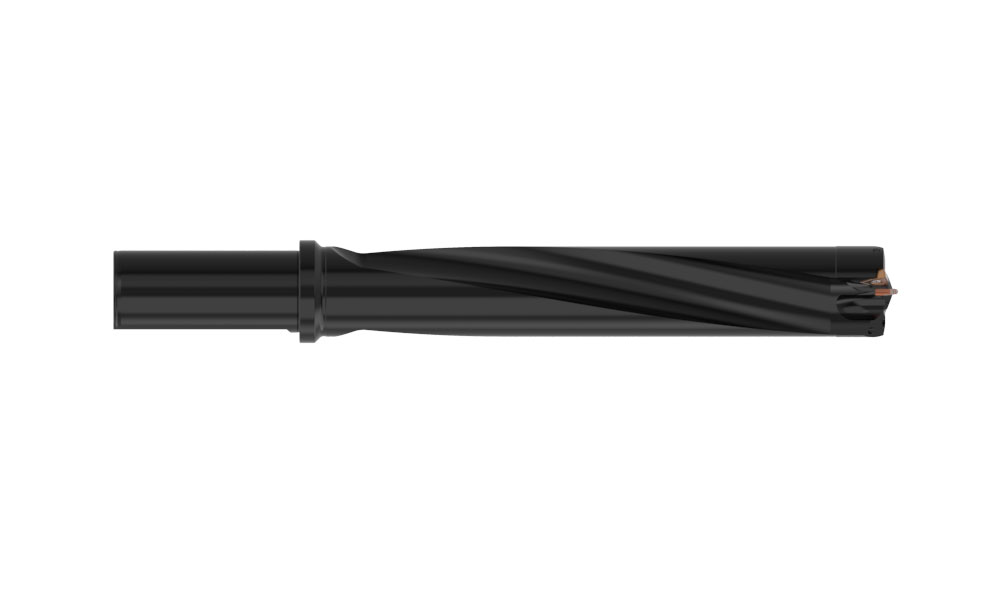

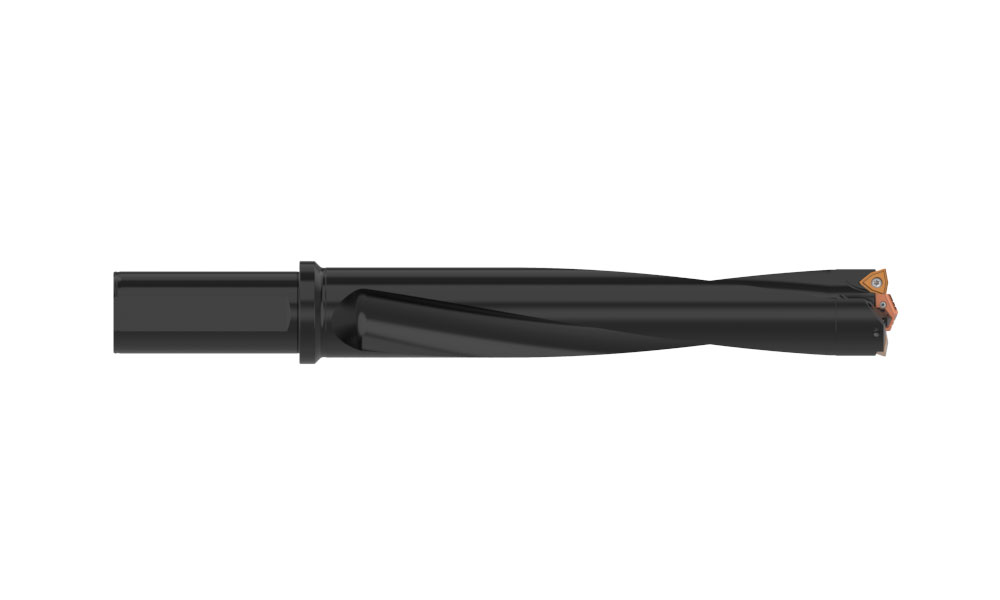

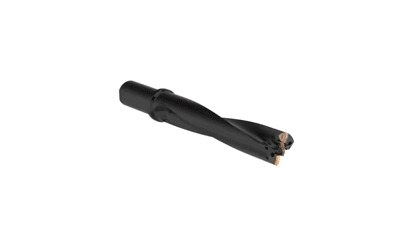

Allied's APX delivers the strength and versatility needed for any deep hole drilling application. The APX geometry is designed to increase penetration rates and tool life, providing the lowest cost per hole among deep hole drilling lines.


Watch Video
Advantages

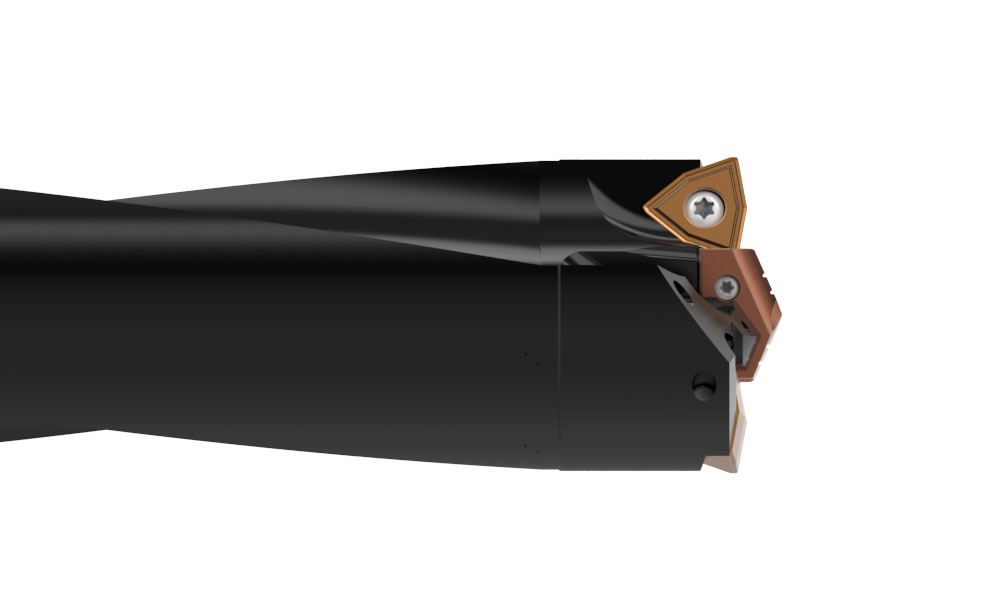

  • Can be used with either the GEN3SYS® or T-A® pilot insert to stabilize the tool through the cut, while utilizing the outboard carbide inserts to achieve the final cutting diameter
  • Allows for higher spindle speeds and taking advantage of the power curve on modern CNC machines for maximum penetration rates on deep holes
Features
  • Utilizes Standard GEN3SYS® and T-A® Inserts
  • Deep Hole Drilling
Recommended Materials
Materials
x
Key Icon Steel
Material Key Icon High Temp Alloy
Key Icon Stainless Steel
Material Key Icon Hardened Steel
Key Icon Cast Iron
Material Key Icon Non-Ferrous
KeyIcon Reference

Material Key Icon
Material Key Icon



Recommended Industries
Industries
x
Key Icon Medical
Industry Key Icon Renewable Energy/ Energy
Key Icon Automotive
Industry Key Icon Aerospace
Key Icon Firearms
Industry Key Icon Agriculture
Key Icon Oil and Gas
Industry Key Icon Marine
Key Icon General Production
Industry Key Icon Heavy Equipment
Key Icon Hydraulics
Industry Key Icon Tool, Mold, and Die
Key Icon Structural Steel Fabricator
Key Icon Reference
Industry
Industry
Industry



Technical Information

Product Specifications
Product Type

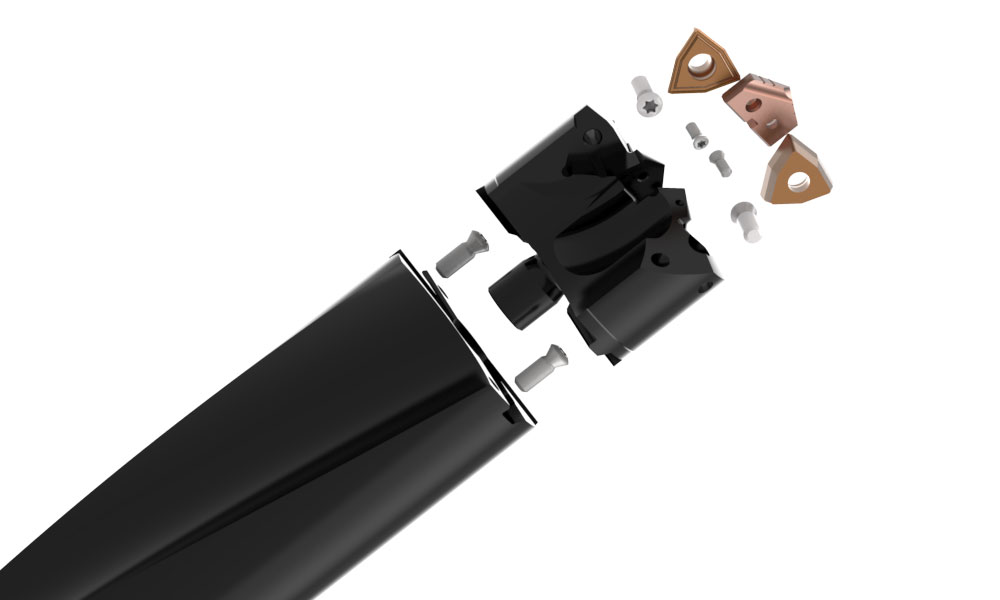

Modular Indexable Drill System
Diameter Range
1.299" - 4.000" (33.00mm - 101.6mm)
Coating
TiN, TiAlN, TiCN
Modular Head
T-A Pilot, GEN3SYS® Pilot
IC Insert
Trigon with AM300® Coating
Holder
APX Body
Flute Options
Helical
Shank Options
Flanged Shank, CV40, CV50
Drill Depth
3xD 5xD 8xD 10xD
Coolant
Coolant Through

Product Nomenclature
APX Drill Holders
APX Holder
x
W = Holder
W
Series
x
33 = 33 series
38 = 38 series
44 = 44 series
51 = 51 series
57 = 57 series
63 = 63 series
70 = 70 series
76 = 76 series
83 = 83 series
89 = 89 series
95 = 95 series
38
Drill Length
x
03 = 3xD
05 = 5xD
08 = 8xD
10 = 10xD
05
Flute Style
x
H = Helical
H
-
Shank
x
150F = 1-1/2" flanged straight shank
200F = 2" flanged straight shank
40FM = 40mm flanged straight shank
50FM = 50mm flanged straight shank
CV40 = CAT40 integral shank
CV50 = CAT50 integral shank
200F
APX Drill Heads
APX Head
x
V = Head
V
Series
x
33 = 33 series
38 = 38 series
44 = 44 series
51 = 51 series
57 = 57 series
63 = 63 series
70 = 70 series
76 = 76 series
83 = 83 series
89 = 89 series
95 = 95 series
38
Pilot Series
x

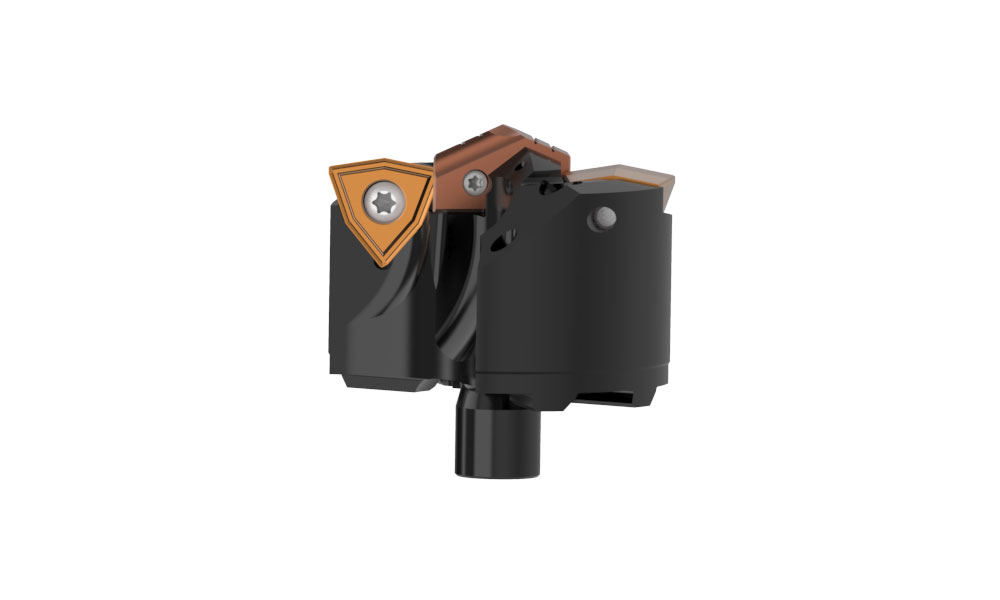

T-A Pilot Insert:
00 = 0 series
01 = 1 series
02 = 2 series

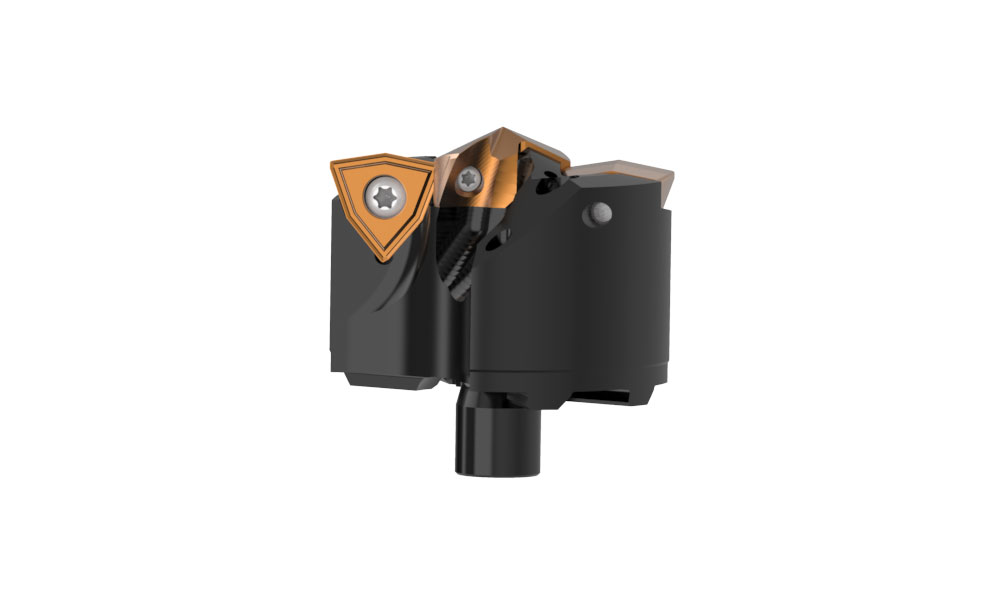

GEN3SYS XT Pilot Insert:
15 = 15 series
17 = 17 series
18 = 18 series
20 = 20 series
22 = 22 series
24 = 24 series
26 = 26 series
29 = 29 series
32 = 32 series
15
Effective Cutting
x
D = Double effective
S = Single effective
D
-
Major Diameter
x
0116 = Inch
1.5153 = Decimal
68 = Metric
0116
Deep Hole / Large Diameter Drilling
