Products > Drilling > Replaceable Insert Drills > GEN3SYS® XT Pro > Overview
GEN3SYS® XT Pro    360 Icon

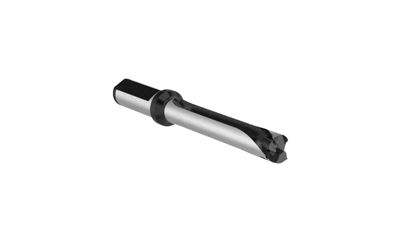

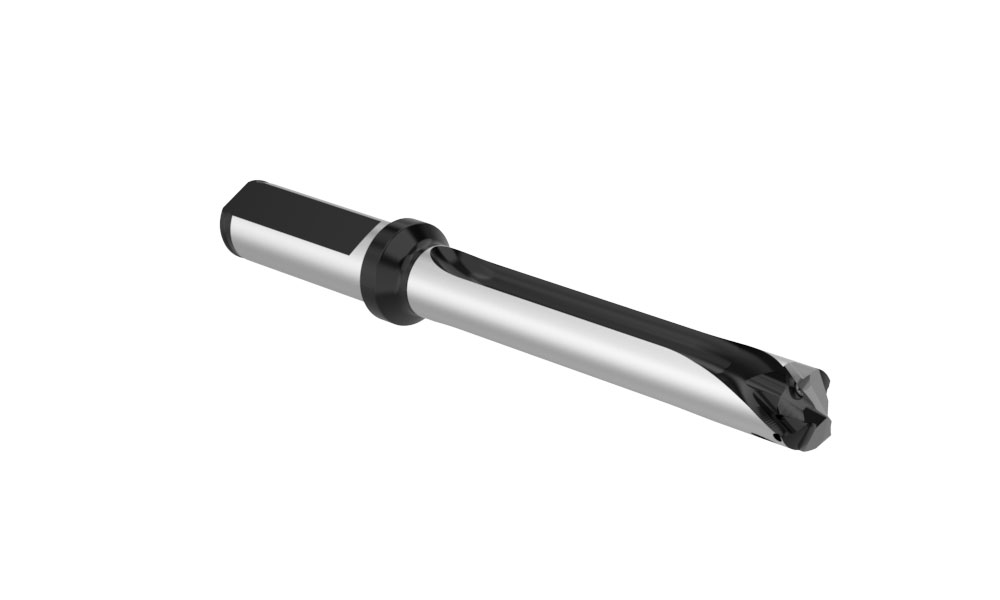

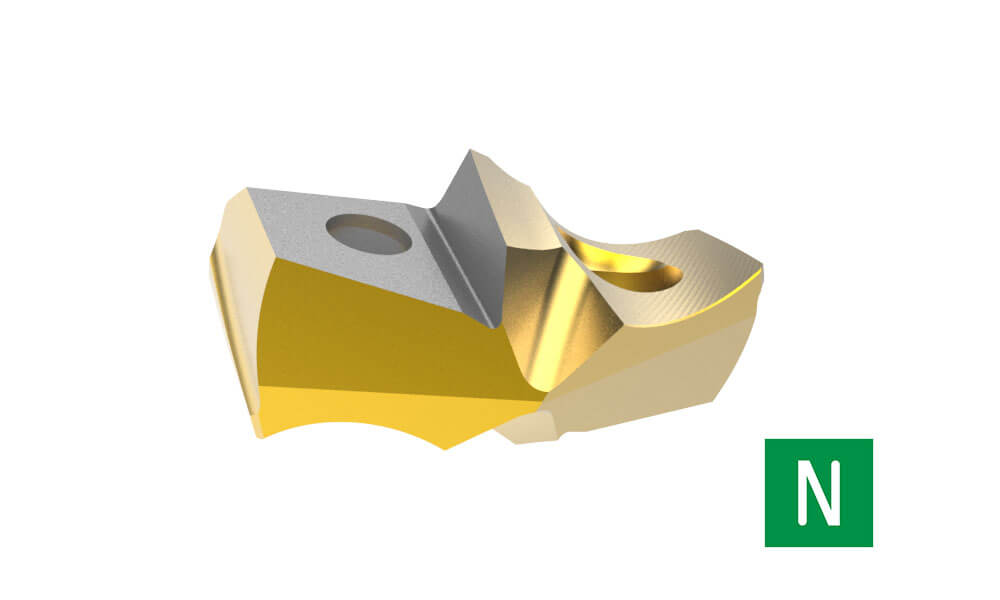

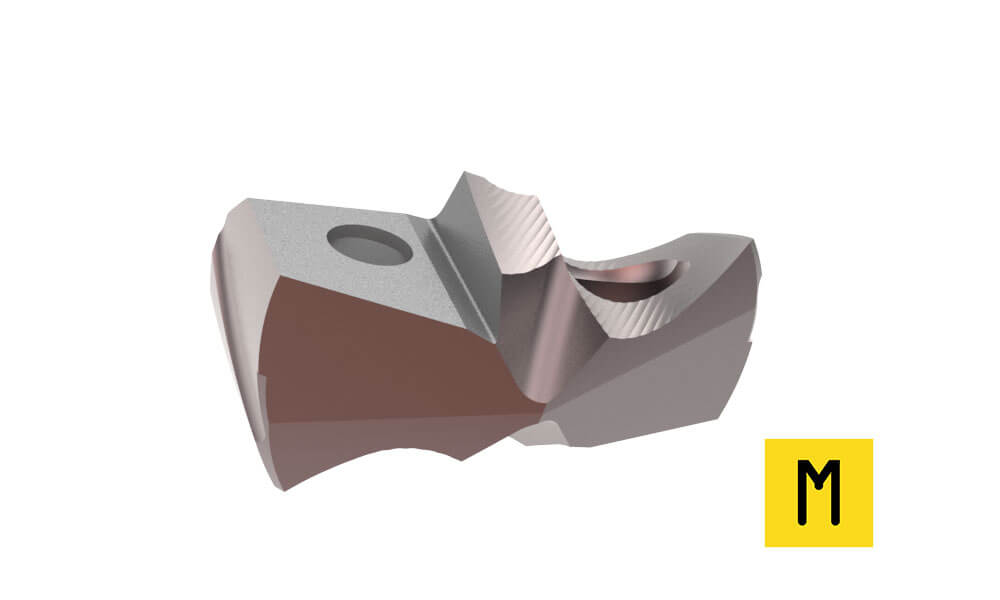

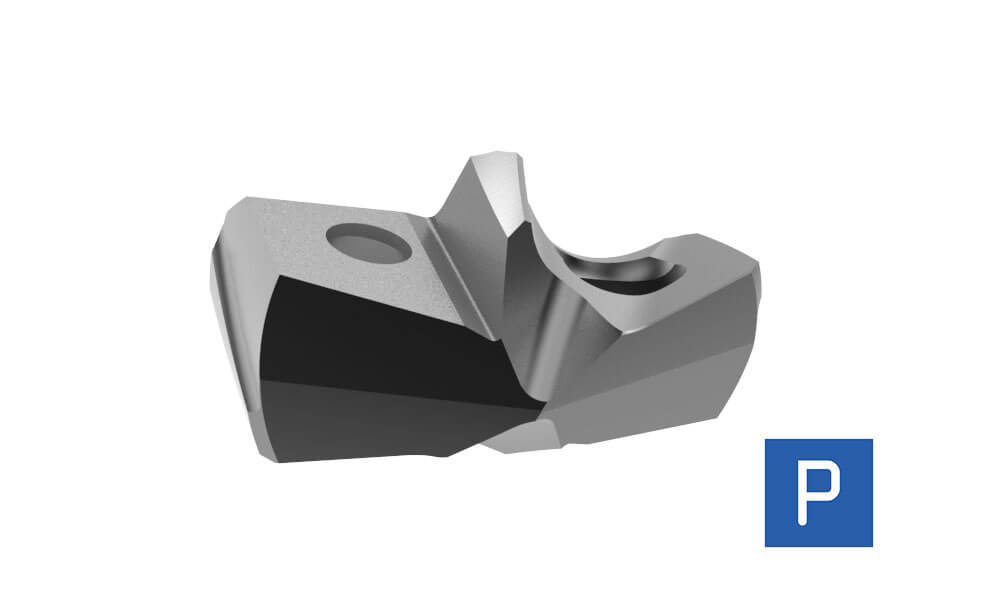

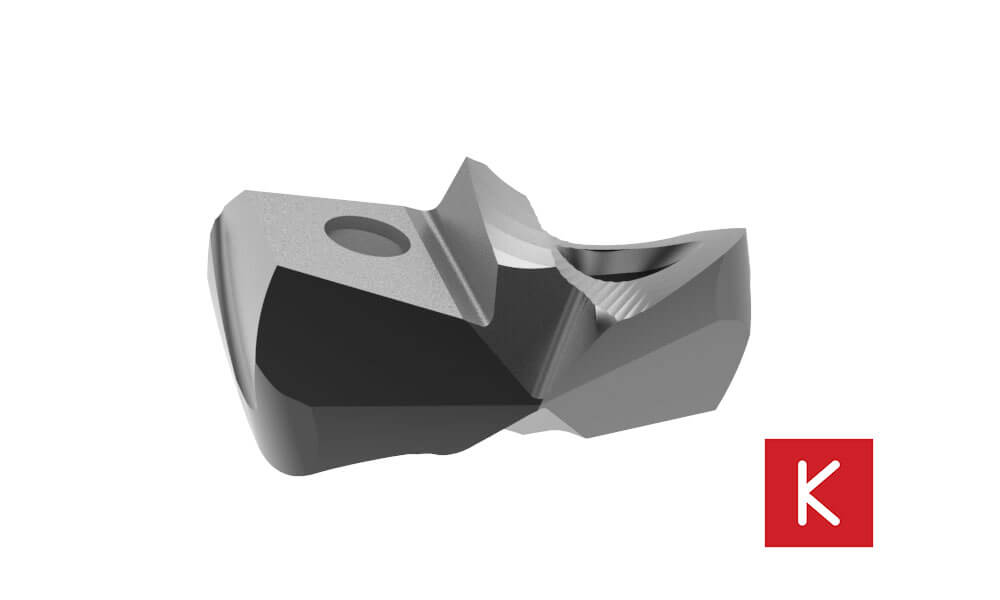

The material-specific XT Pro insert combines a substrate, coating, and geometry specifically designed to achieve optimal results in different ISO material classes. With quick connectivity to existing GEN3SYS drill insert holders, the XT Pro insert can be interchanged with previous XT inserts with ease, resulting in minimal setup times so you can immediately increase your productivity.

Watch Video
Advantages
Features
  • AM400 series coatings (AM420 and AM440)

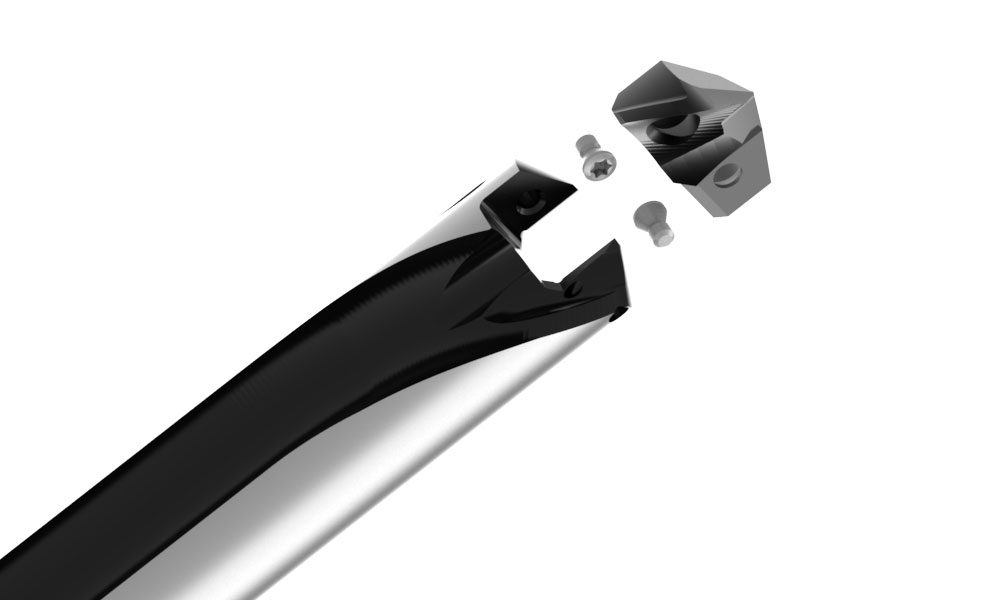

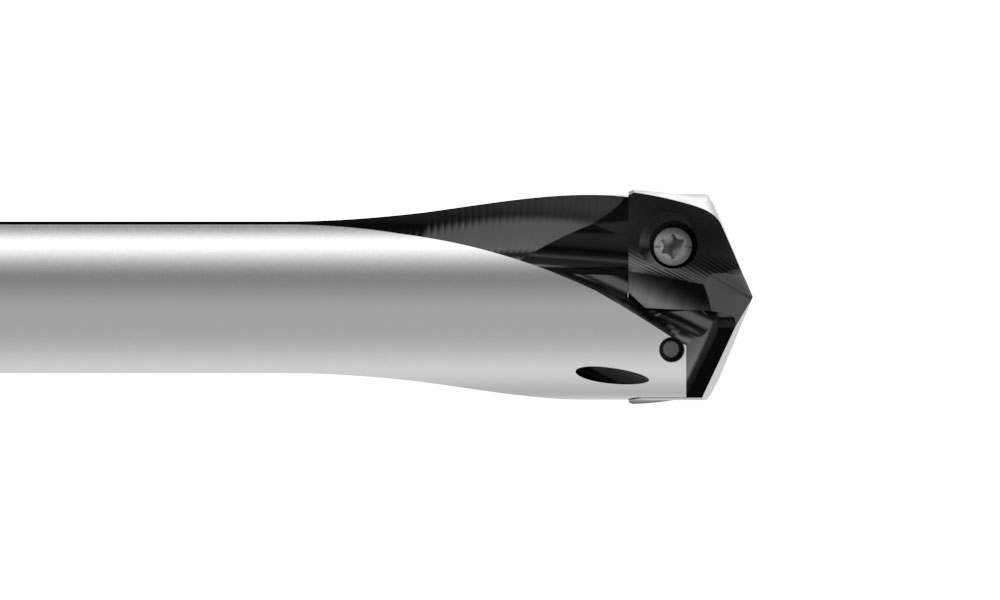

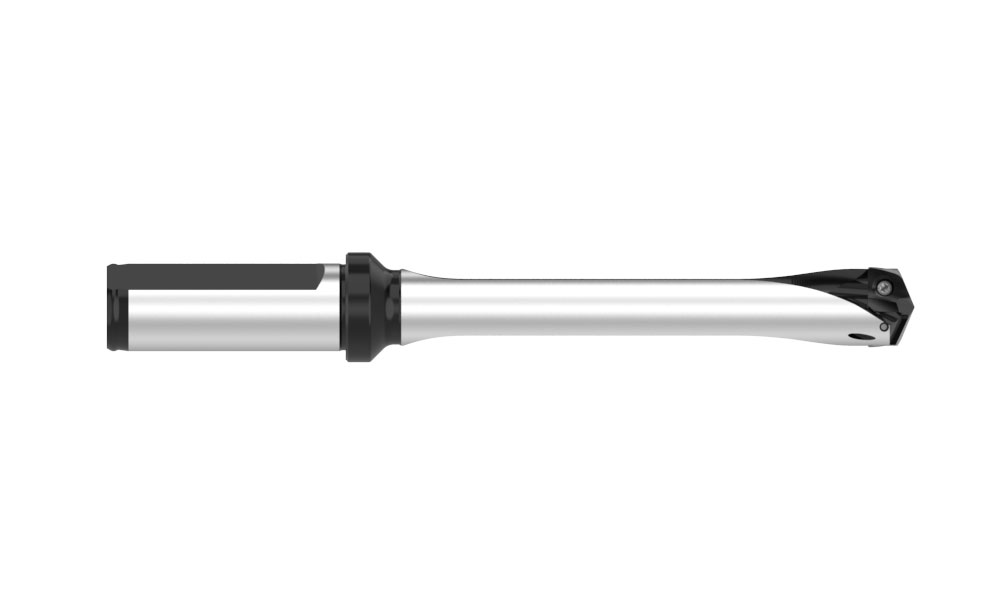

  • Holder design includes dual gun drills
  • Holder features additional coolant outlets

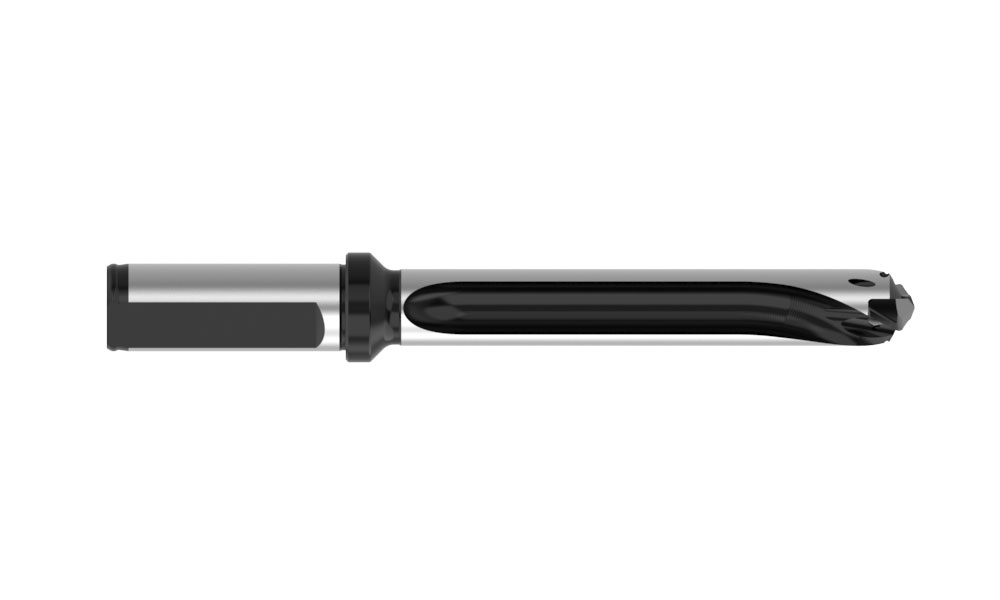

  • Holder has increased flute area
  • 3xD, 5xD, 7xD, 10xD and 12xD lengths
Contact Engineering Support
Recommended Materials
Materials
x
Key Icon Steel
Material Key Icon High Temp Alloy
Key Icon Stainless Steel
Material Key Icon Hardened Steel
Key Icon Cast Iron
Material Key Icon Non-Ferrous
KeyIcon Reference

Material Key Icon
Material Key Icon
Material Key Icon
Material Key Icon



Recommended Industries
Industries
x
Key Icon Medical
Industry Key Icon Renewable Energy/ Energy
Key Icon Automotive
Industry Key Icon Aerospace
Key Icon Firearms
Industry Key Icon Agriculture
Key Icon Oil and Gas
Industry Key Icon Marine
Key Icon General Production
Industry Key Icon Heavy Equipment
Key Icon Hydraulics
Industry Key Icon Tool, Mold, and Die
Key Icon Structural Steel Fabricator
Key Icon Reference
Industry
Industry
Industry
Industry
Industry
Industry
Industry
Industry



Technical Information
Product Specifications
Product Type
Replaceable Drill Insert
Diameter Range
0.4311" - 1.3780" (11.00 mm - 35.00 mm)
ISO Material
Steel, Cast Iron, Nonferrous
Coating
AM420®, AM440®, AM460, TiN
Holder
GEN3SYS® Standard, GEN3SYS® XT Pro
Flute Options
Straight
Shank Options
Flange and Cylindrical / flat and no flat
Drill Depth
3xD 5xD 7xD 10xD 12xD
Coolant
Enhanced Coolant Through

Product Nomenclature
XT Pro Insert
- Can be used with GEN3SYS® XT holders
XT Pro Drill Insert
x
XT = XT Pro Insert
XT
ISO Material / Geometry
x
P = Steel
K = Cast iron
N = Non-ferrous
P
Series
x
11 = 11 series
12 = 12 series
13 = 13 series
14 = 14 series
15 = 15 series
16 = 16 series
17 = 17 series
18 = 18 series
20 = 20 series
22 = 22 series
24 = 24 series
26 = 26 series
29 = 29 series
32 = 32 series
11
-
Diameter (mm)
x
Diameters are in millimeter increments
11.00
XT Pro Holder
Holder
x
HXT = XT Pro Holder
HXT
Length
x
03 = 3x Diameter
05 = 5x Diameter
07 = 7x Diameter
10 = 10x Diameter
12 = 12x Diameter
03
Series
x
11 = 11 series
12 = 12 series
13 = 13 series
14 = 14 series
15 = 15 series
16 = 16 series
17 = 17 series
18 = 18 series
20 = 20 series
22 = 22 series
24 = 24 series
26 = 26 series
29 = 29 series
32 = 32 series
12
Flute
x
S = Straight
S
-
Shank Diameter
x
Imperial (inch)
063 = 5/8"
075 = 3/4"
100 = 1"
125 = 1-1/4"
150 = 1-1/2"
Metric (mm)
16 = 16mm
20 = 20mm
25 = 25mm
32 = 32mm
20
Shank Style
x
F = Flanged with flat
FM = Flanged metric with flat
C = Cylindrical (no flat)
CM = Cylindrical metric (no flat)
FM
High Penetration Drilling
