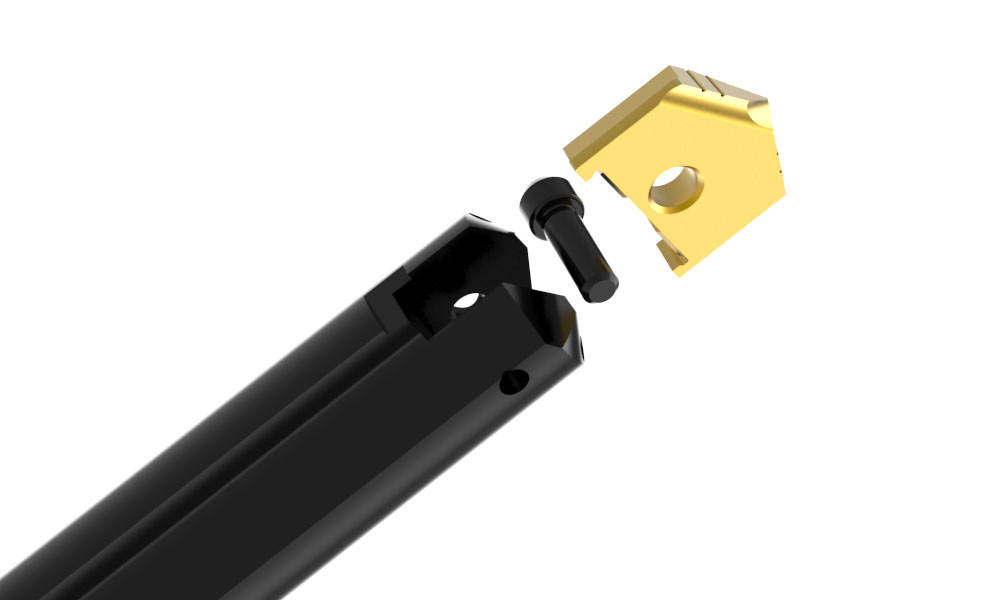

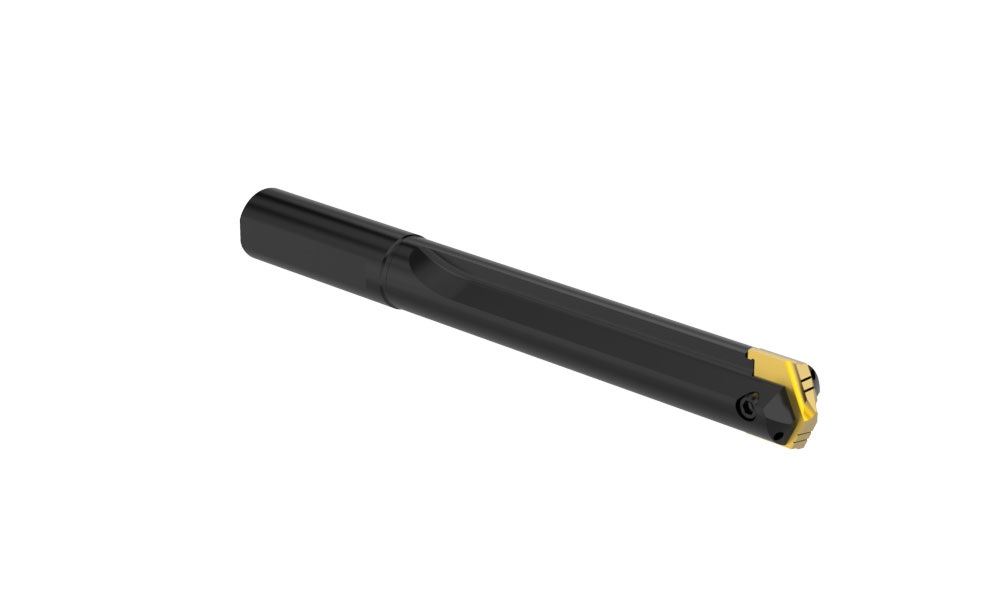

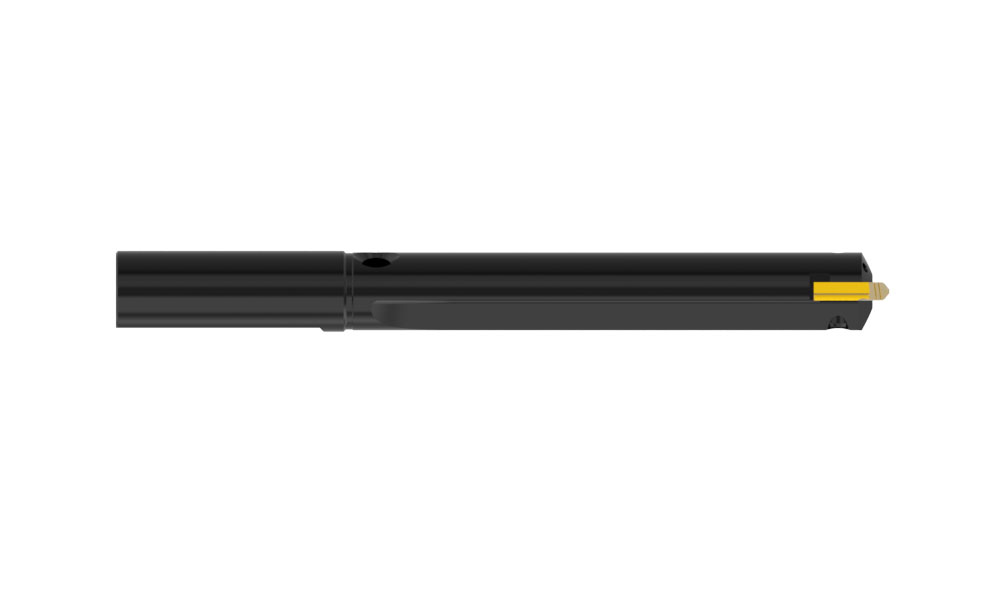

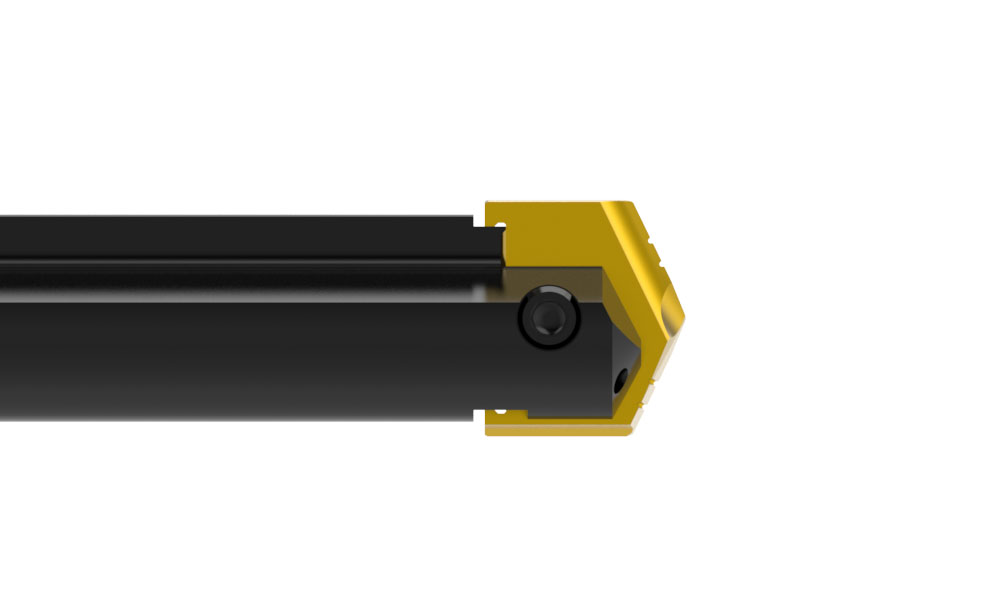

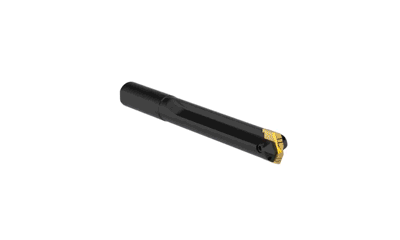

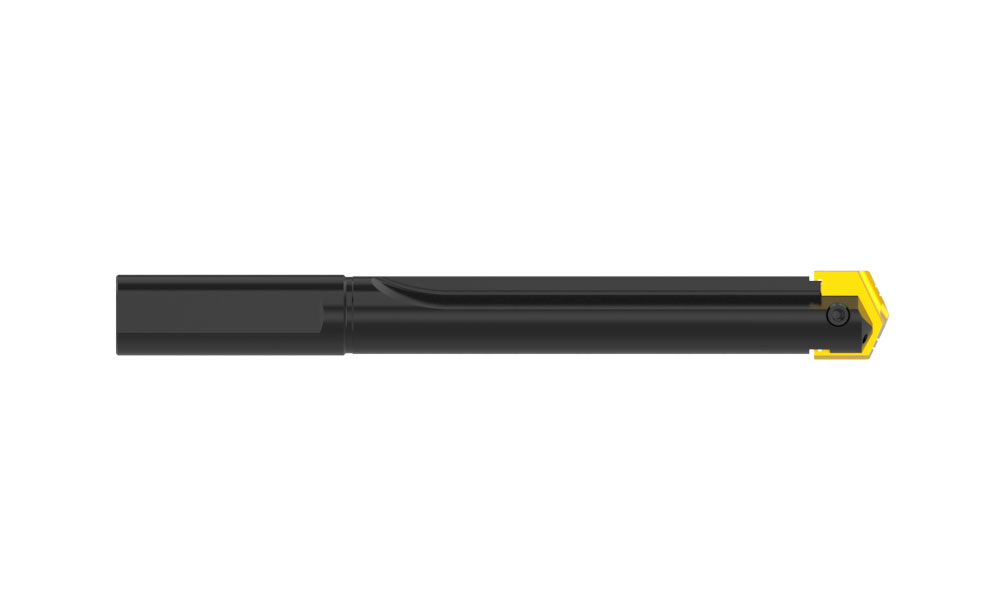

High Performance Spade Drills (HP) were designed for end-users who had Universal Style holders, but were looking for improved performance. HP spade drills fit into the Universal holders, but offer the high-tech geometry and performance benefits of the Original T-A® drill inserts.
Advantages
  • Unique tool geometry reduces thrust up to 30% when compared to uncoated Universal style spade drills
  • Increased tool life when compared to uncoated Universal style spade drills
  • Reduced tool cost
Features
  • Single piece design in A-C series
  • 2-piece design in D-H series
  • TiN, TiCN, TiAlN coatings
  • Web Thin geometry
Recommended Materials
Materials
x
Key Icon Steel
Material Key Icon High Temp Alloy
Key Icon Stainless Steel
Material Key Icon Hardened Steel
Key Icon Cast Iron
Material Key Icon Non-Ferrous
KeyIcon Reference

Material Key Icon
Material Key Icon
Material Key Icon
Material Key Icon



Recommended Industries
Industries
x
Key Icon Medical
Industry Key Icon Renewable Energy/ Energy
Key Icon Automotive
Industry Key Icon Aerospace
Key Icon Firearms
Industry Key Icon Agriculture
Key Icon Oil and Gas
Industry Key Icon Marine
Key Icon General Production
Industry Key Icon Heavy Equipment
Key Icon Hydraulics
Industry Key Icon Tool, Mold, and Die
Key Icon Structural Steel Fabricator
Key Icon Reference
Industry
Industry
Industry
Industry
Industry
Industry
Industry
Industry



Technical Information

Product Specifications
Product Type
Replaceable Drill Insert
Diameter Range
0.9688" - 5.0000" (24.6mm - 127mm)
Insert Material
High Speed Steel
Coating
TiN, TiAlN, TiCN
Holder
Universal
Flute Options
Straight
Shank Options
Straight, Taper, NMTB
Depth of Cut
Stub, Short, Standard, Long, XL
Coolant
Coolant, No Coolant, Through Shank Coolant

Product Nomenclature
High Performance Insert
Spade Drill Insert
x
1 = Spade Drill Insert
1
Material
x
02 = High speed steel
02
Series
x
1 = A series
2 = B series
3 = C series
4 = D series
5 = E series
6 = F series
7 = G series
8 = H series
8
Coating
x
T = TiN
A = TiAlN
N = TiCN

T
-
Diameter (by 1/32")
x
0406 = Inch
4.3593 = Decimal
0406
High Performance Holder
Spade Drill Holder
x
2 = Spade Drill Holder
2
Classification
x
Straight Shank
02 = Stub #125 (NC)
04 = Short #150 (NC)
06 = Short #100 (C)
08 = Standard #200 (C)
10 = Long #250 (C)
Taper Shank
14 = Short #300 (NC)
15 = Short #300 (TSC)
16 = Short #400 (C)
18 = Standard #500 (C)
20 = Long #600 (C)
22 = XL #700 SR (C)

50 NMTB Shank
24 = Short #300 (NC)
26 = Short #400 (C)
28 = Standard #500 (C)
22
Series
x
1 = A series
2 = B series
3 = C series
4 = D series
5 = E series
6 = F series
7 = G series
8 = H series

8
Holder Style
x
1 = Universal
1
-
Shank Size and Configuration
x
Straight Shank
0750 = 0.750" Straight Shank
1000 = 1.000" Straight Shank
1250 = 1.250" Straight Shank
1500 = 1.500" Straight Shank
2000 = 2.000" Straight Shank
3000 = 3.000" Straight Shank
Taper Shank
0002 = #2 Morse Taper Shank
0003 = #3 Morse Taper Shank
0004 = #4 Morse Taper Shank
0005 = #5 Morse Taper Shank
0006 = #6 Morse Taper Shank
NMTB Shank
0050 = 50 NMTB Shank
0006
Replaceable Insert Drilling System
Literature Thumbnail

Literature Order Number: AMPC-A4
