T-A®    360 Icon

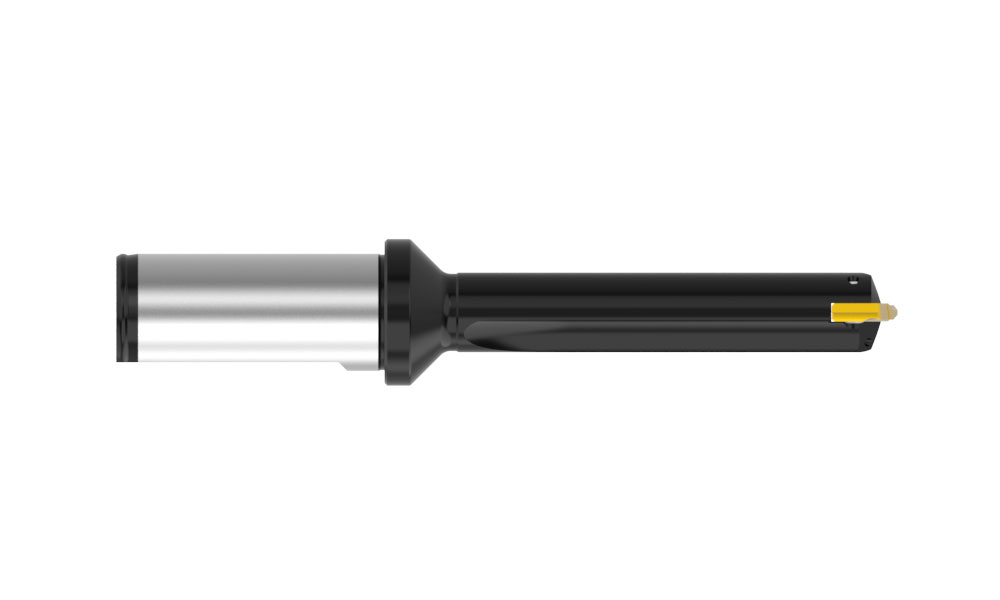

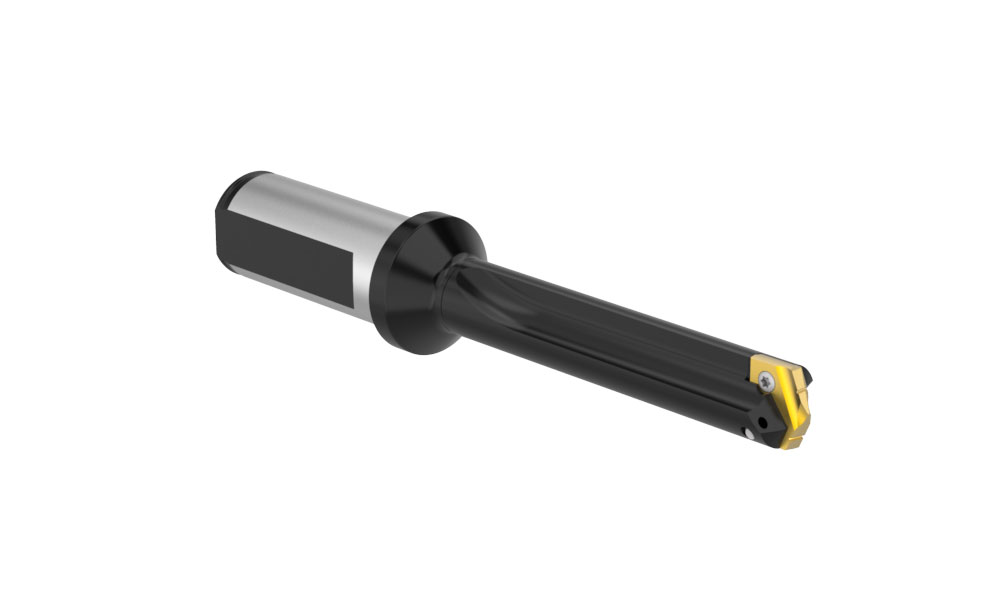

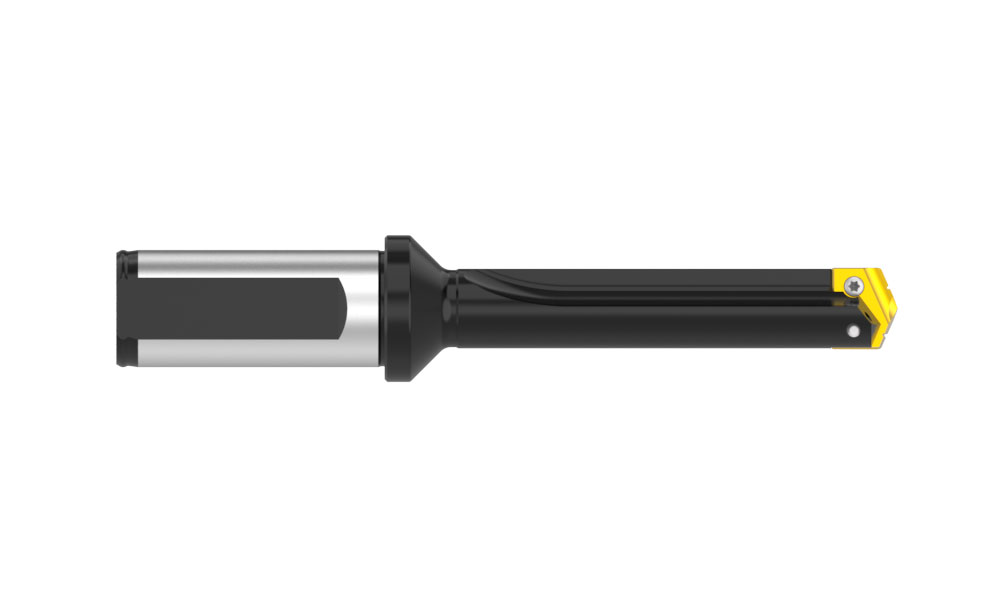

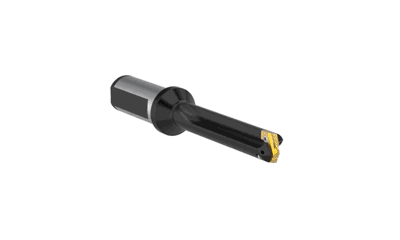

The T-A spade drill is an excellent choice for general purpose drilling. The design provides fast penetration rates that produce good hole size and finish. Standard geometry combines highly efficient and stable cutting action to minimize power consumption. Recommended for use in most steels including 4150, cast irons, high-temperature alloys and aluminum alloys.

Watch Video
Advantages
  • Optimizes chip evacuation
  • Effective heat dispersion
  • Multiple geometry options
  • Accurate positioning
  • Eliminates center drilling
  • Increases point strength
Features
Recommended Materials
Materials
x
Key Icon Steel
Material Key Icon High Temp Alloy
Key Icon Stainless Steel
Material Key Icon Hardened Steel
Key Icon Cast Iron
Material Key Icon Non-Ferrous
KeyIcon Reference

Material Key Icon
Material Key Icon
Material Key Icon
Material Key Icon
Material Key Icon
Material Key Icon



Recommended Industries
Industries
x
Key Icon Medical
Industry Key Icon Renewable Energy/ Energy
Key Icon Automotive
Industry Key Icon Aerospace
Key Icon Firearms
Industry Key Icon Agriculture
Key Icon Oil and Gas
Industry Key Icon Marine
Key Icon General Production
Industry Key Icon Heavy Equipment
Key Icon Hydraulics
Industry Key Icon Tool, Mold, and Die
Key Icon Structural Steel Fabricator
Key Icon Reference
Industry
Industry
Industry
Industry
Industry
Industry
Industry
Industry
Industry



Technical Information

Product Specifications
Product Type
Replaceable Drill Insert
Diameter Range
0.374” - 4.500” (9.50mm - 114.30mm)
Substrate Options
HSS, Super Cobalt, Premium Cobalt, C2(K20), C3(K10), C5(P40)
Coating
TiN, TiAlN, TiCN
Holder
Original T-A Holder
Flute Options
Straight or Helical
Shank Options
Flange, Straight, Morse Taper, ER Collet
Drill Depth
1xD up to 28xD
Coolant
Coolant Through

Product Nomenclature

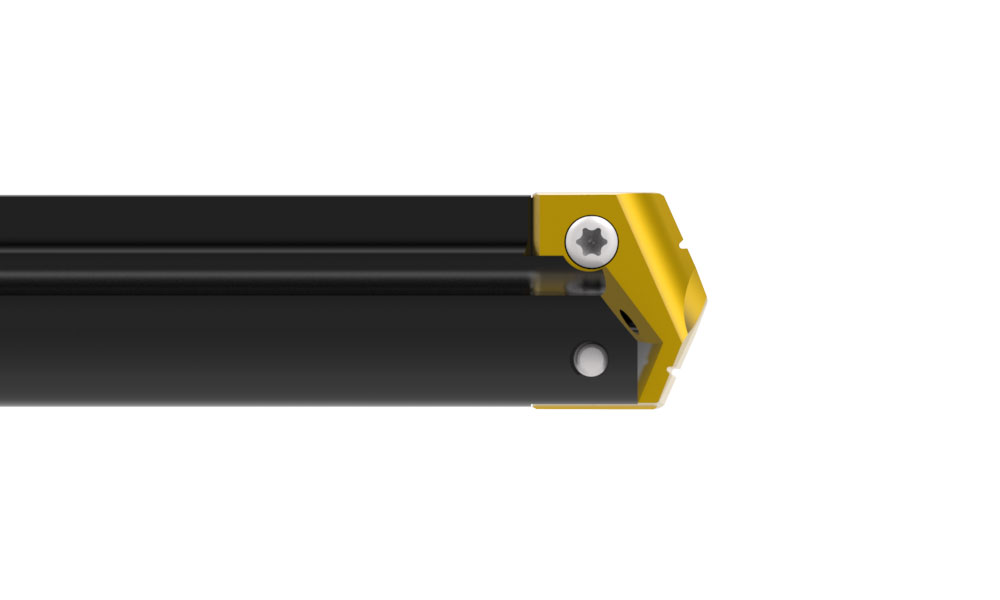

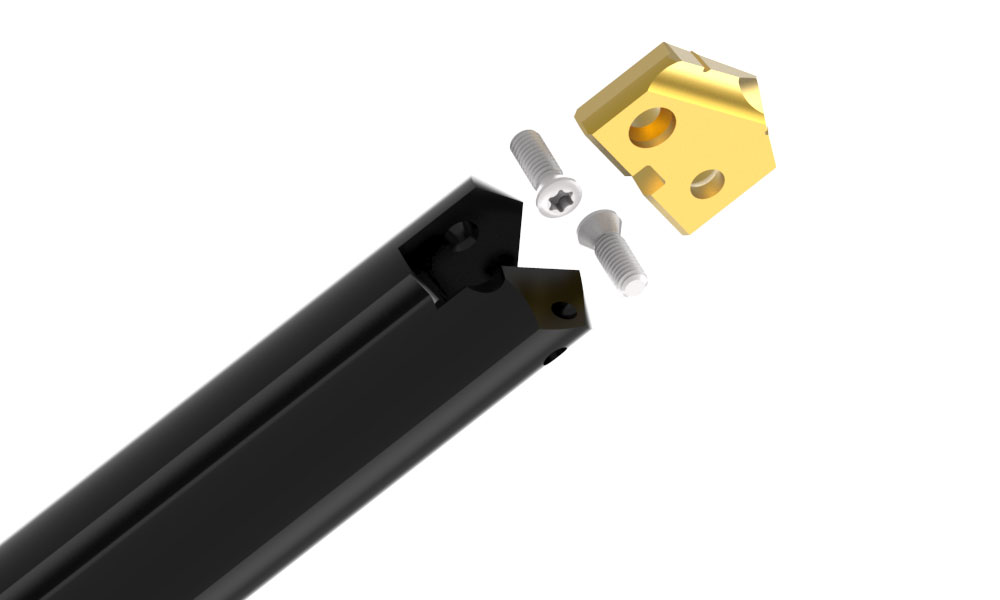

Original T-A Inserts
Insert
x
1 = Original T-A
1
Material
x
3 = HSS
5 = Super Cobalt
8 = Premium Cobalt
C1 = C1 (K35) carbide
C2 = C2 (K20) carbide
C3 = C3 (K10) carbide
C5 = C5 (P40) carbide
8
Series
x
Y = Y series
Z = Z series
0 = 0 series
1 = 1 series
2 = 2 series
3 = 3 series
4 = 4 series
5 = 5 series
6 = 6 series
7 = 7 series
8 = 8 series
2
Coating
x
H = AM200®
A = TiAIN
N = TiCN
T = TiN
T
-
Diameter
x
0017 = Inch
.515 = Decimal
13 = Metric
0031
-
Geometry
x
Blank = Standard
AN = Aluminum
BR = Brass
BT = BT-A Specific
CI = Cast Iron
CN = Cast Iron with Notch Point®
CP = Cam Point
CR = Corner Radius
FB = Flat Bottom
HI = High Impact
HR = High Rake



IN = High Impact with Notch Point®
NC = Standard without Chipbreakers
NP = Notch Point®
RN = High Rake with Notch Point®
SK = Special Corner Prep
SP = 90˚ Spot and Chamfer
SS = 150˚ Structural Steel
TC = Tiny Chip
TW = Thin Wall

TC
Original T-A Holders
- (also used with Gen2 T-A)
Holder
x
2 = T-A Holder
2
Length
x
10 = Stub
20 = Short
30 = Intermediate
40 = Standard
45 = Standard Plus
50 = Extended
60 = Long
65 = Long Plus
70 = XL
90 = 3XL
30
Series
x
Y0 = Y series
Z0 = Z series
00 = 0 series
05 = 0.5 series
10 = 1 series
1.5 = 15 series
20 = 2 series
25 = 2.5 series
30 = 3 series
40 = 4 series
50 = 5 series
70 = 7 series
20
Flute
x
H = Helical
S = Straight
S
-
Shank Designator
x
Morse Taper
002 = 2MT
003 = 3MT
004 = 4MT
005 = 5MT

Imperial
063 = 5/8"
075 = 3/4"
100 = 1"
125 = 1-1/4"
150 = 1 1/2"
175 = 1-3/4"
200 = 2"
300 = 3"
Metric
16 = 16mm
20 = 20mm
25 = 25mm
32 = 32mm
40 = 40mm
50 = 50mm
004
Shank Code
x
I = Imperial Morse Taper
M = Metric Morse Taper
L = Lathe Shank
F = Flanged Shank
FM = Flanged Metric Shank
I
General Purpose Drilling
Literature Thumbnail

Available Online Only

Recommended Cutting Data
Original T-A® Carbide
Original T-A® Flat Bottom Carbide
Original T-A® HSS
Original T-A® Flat Bottom HSS

Additional Resources and Guidelines
