Universal    360 Icon

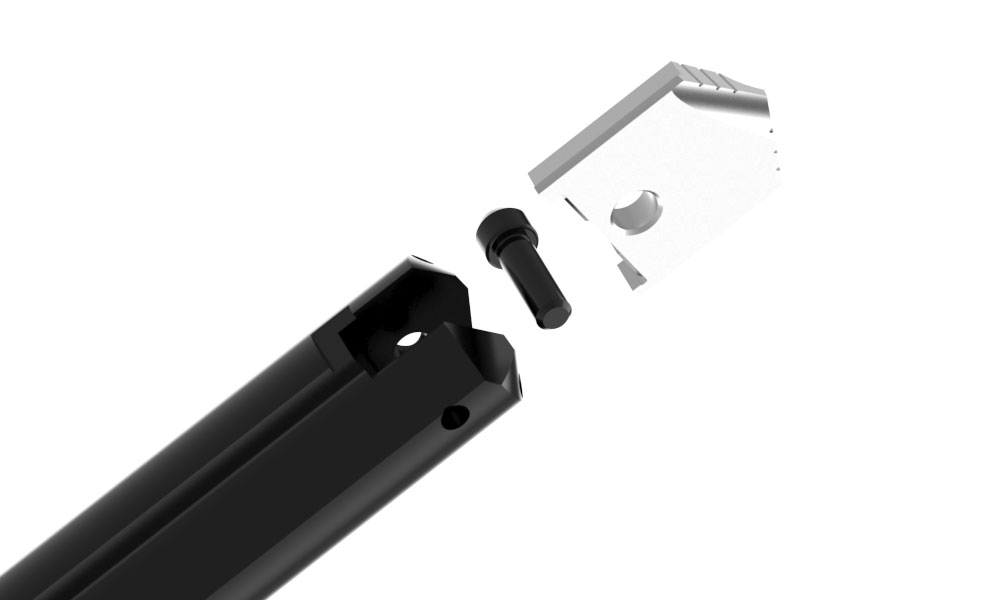

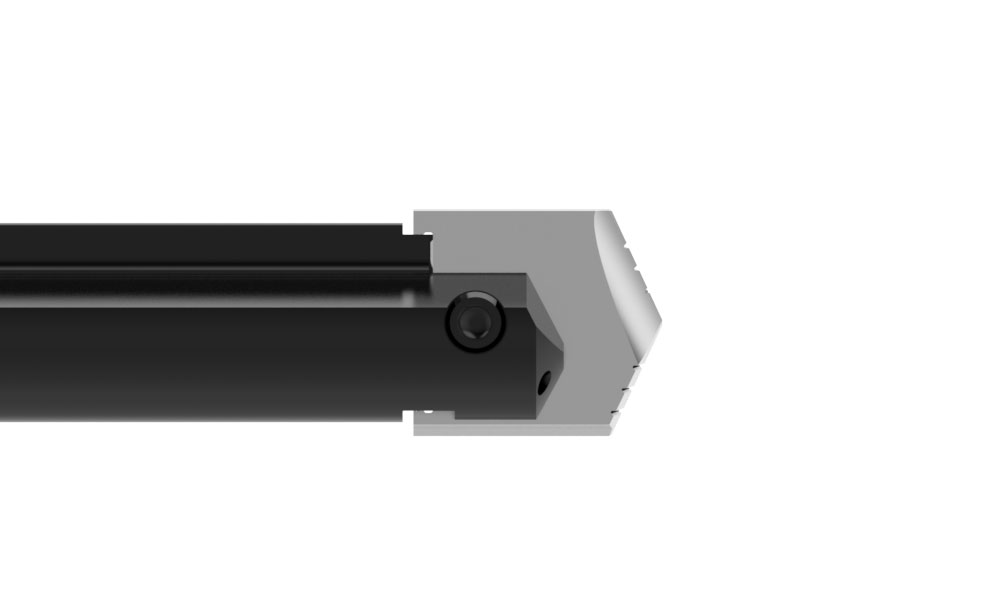

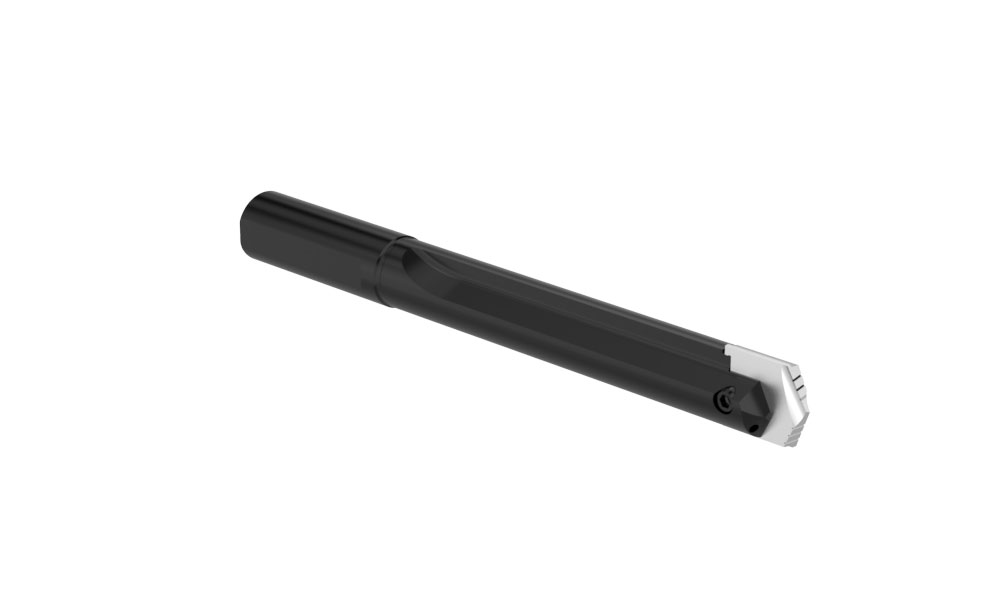

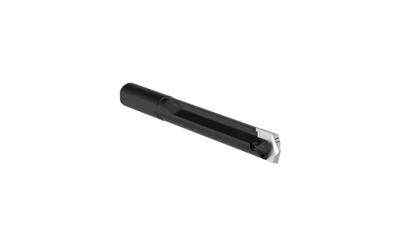

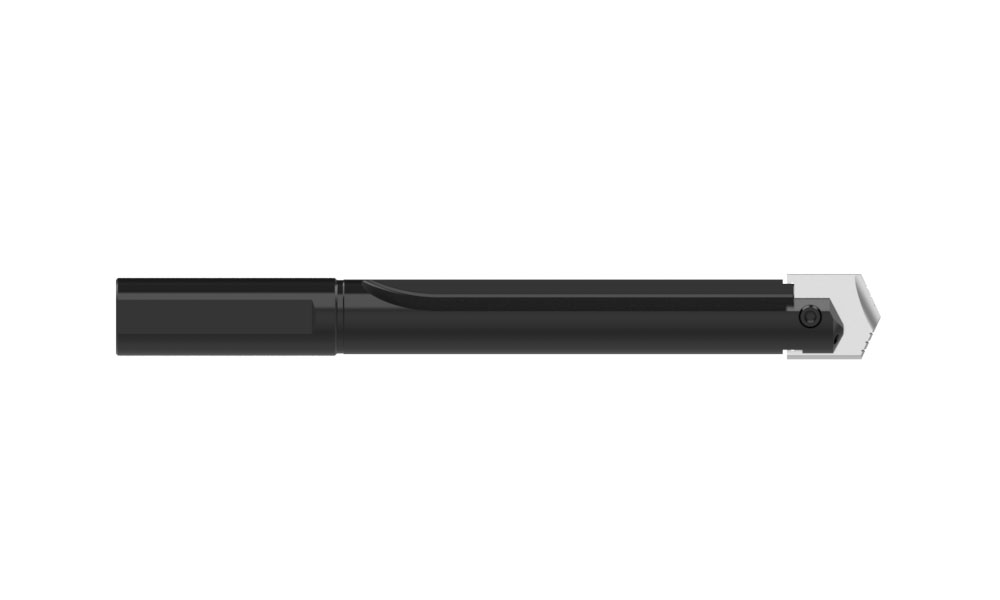

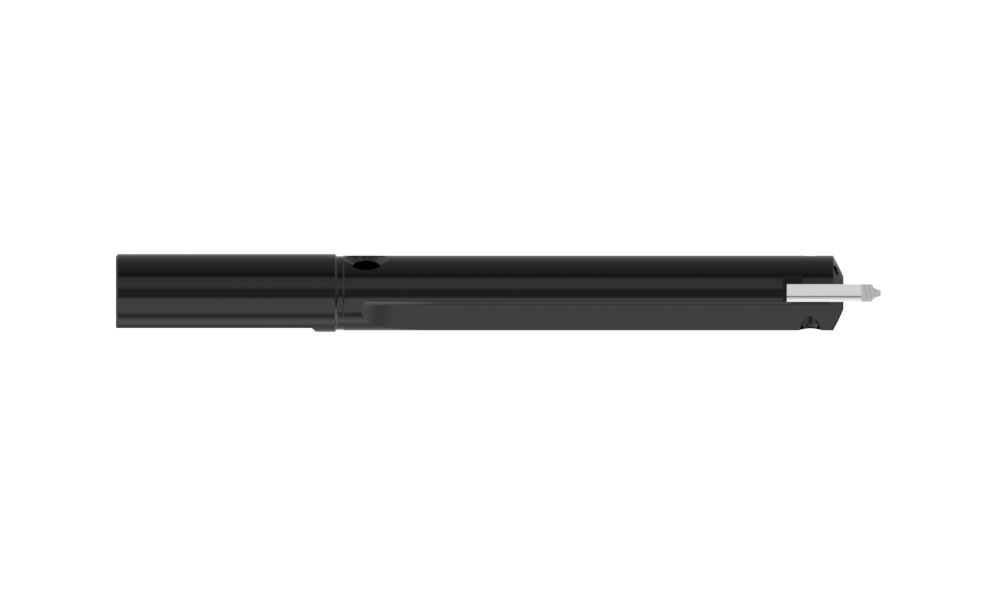

Universal Style Spade Drills and Universal Holders allow end-users a larger diameter range. The diameter size for the Universal Spade Drill ranges from 1" to 8-1/2".
Advantages
  • Accommodate a wide range of diameters
  • 3 Geometries: 130° for standard drilling, 90° spot/chamfer, and flat bottom
Features
  • Holders and inserts manufactured to ANSI spec
Recommended Materials
Materials
x
Key Icon Steel
Material Key Icon High Temp Alloy
Key Icon Stainless Steel
Material Key Icon Hardened Steel
Key Icon Cast Iron
Material Key Icon Non-Ferrous
KeyIcon Reference

Material Key Icon
Material Key Icon
Material Key Icon
Material Key Icon



Recommended Industries
Industries
x
Key Icon Medical
Industry Key Icon Renewable Energy/ Energy
Key Icon Automotive
Industry Key Icon Aerospace
Key Icon Firearms
Industry Key Icon Agriculture
Key Icon Oil and Gas
Industry Key Icon Marine
Key Icon General Production
Industry Key Icon Heavy Equipment
Key Icon Hydraulics
Industry Key Icon Tool, Mold, and Die
Key Icon Structural Steel Fabricator
Key Icon Reference
Industry
Industry
Industry
Industry
Industry
Industry
Industry



Technical Information

Product Specifications
Product Type
Replaceable Drill Insert
Diameter Range
0.9688" - 8.5000" (24.6mm - 215.9mm)
Insert Material
High Speed Steel
Coating
TiN, TiAlN, TiCN
Holder
Universal
Flute Options
Straight
Shank Options
Straight, Taper, NMTB
Drill Depth
Stub, Short, Standard, Long, XL
Coolant
Coolant, No Coolant, Through Shank Coolant

Product Nomenclature
Universal Holder
Spade Drill Holder
x
2 = Spade Drill Holder
2
Classification
x
Straight Shank
02 = Stub #125 (NC)
04 = Short #150 (NC)
06 = Short #100 (C)
08 = Standard #200 (C)
10 = Long #250 (C)
Taper Shank
14 = Short #300 (NC)
15 = Short #300 (TSC)
16 = Short #400 (C)
18 = Standard #500 (C)
20 = Long #600 (C)
22 = XL #700 SR (C)

50 NMTB Shank
24 = Short #300 (NC)
26 = Short #400 (C)
28 = Standard #500 (C)
22
Series
x
1 = A series
2 = B series
3 = C series
4 = D series
5 = E series
6 = F series
7 = G series
8 = H series

8
Holder Style
x
1 = Universal
1
-
Shank Size and Configuration
x
Straight Shank
0750 = 0.750" Straight Shank
1000 = 1.000" Straight Shank
1250 = 1.250" Straight Shank
1500 = 1.500" Straight Shank
2000 = 2.000" Straight Shank
3000 = 3.000" Straight Shank
Taper Shank
0002 = #2 Morse Taper Shank
0003 = #3 Morse Taper Shank
0004 = #4 Morse Taper Shank
0005 = #5 Morse Taper Shank
0006 = #6 Morse Taper Shank
NMTB Shank
0050 = 50 NMTB Shank
0006
Universal Spade Drill Inserts
Spade Drill Insert
x
1 = Spade drill insert
1
Insert Style
x
02 = 130° Spade
04 = Flat Bottom
12 = 90° Spot and Chamfer
02
Series
x
1 = A series
2 = B series
3 = C series
4 = D series
5 = E series

6 = F series
7 = G series
8 = H1 - H2 series
9 = H3 - H9 series
J = J series
8
Material
x
2 = M-2 (J series only)
4 = High speed steel (SPM-M4 HSS)
5 = High speed steel (CPM-T15 HSS)


4
-
Diameter (by 1/32")
x
0406 = Inch
4.3593 = Decimal
0406
Coating
x
Blank = Uncoated
T = TiN
A = TiAIN
N = TiCN

T
Replaceable Insert Drilling System
Literature Thumbnail

Literature Order Number: AMPC-A4
