PCD End mills    360 Icon

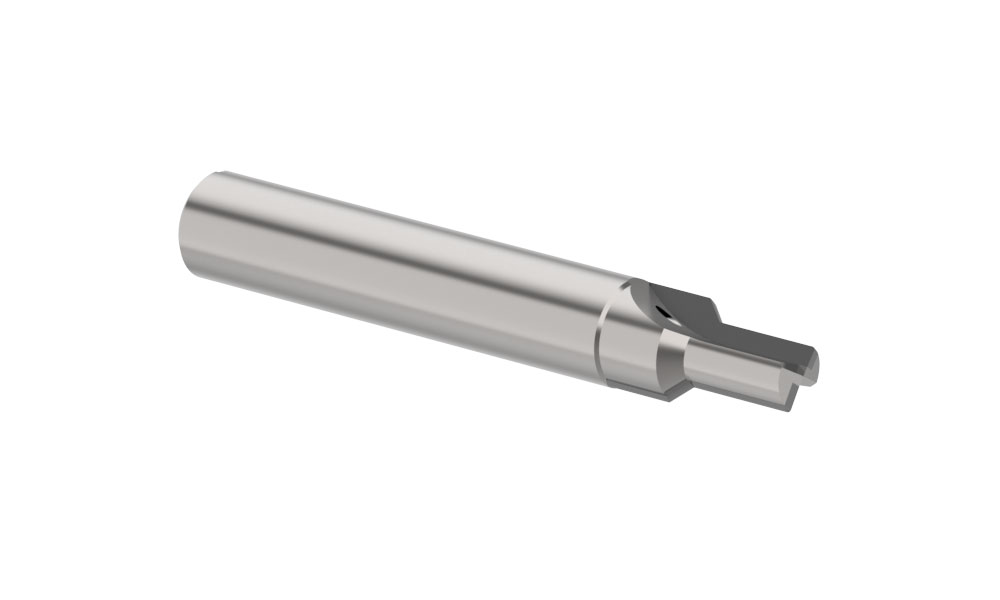

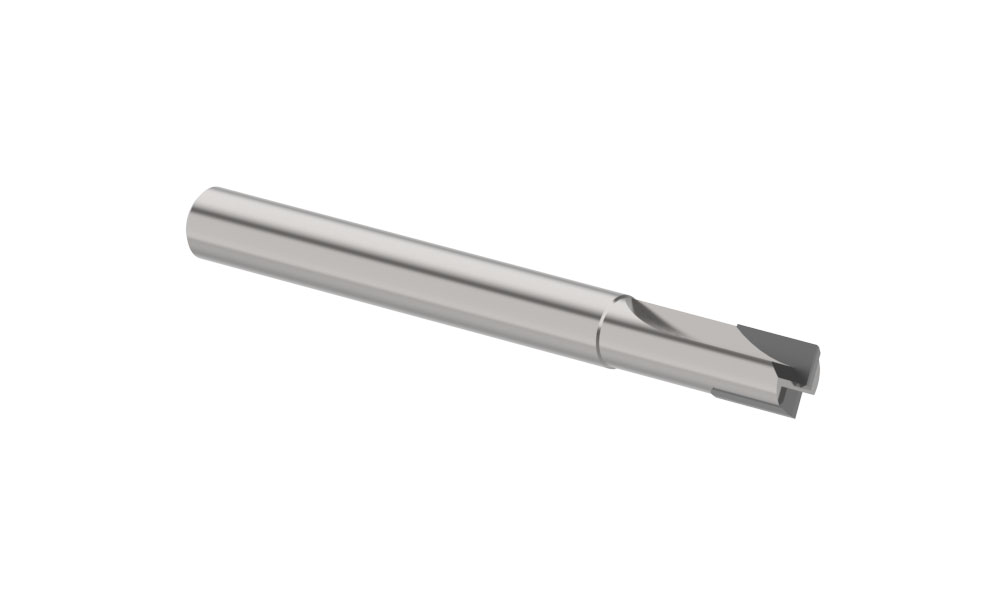

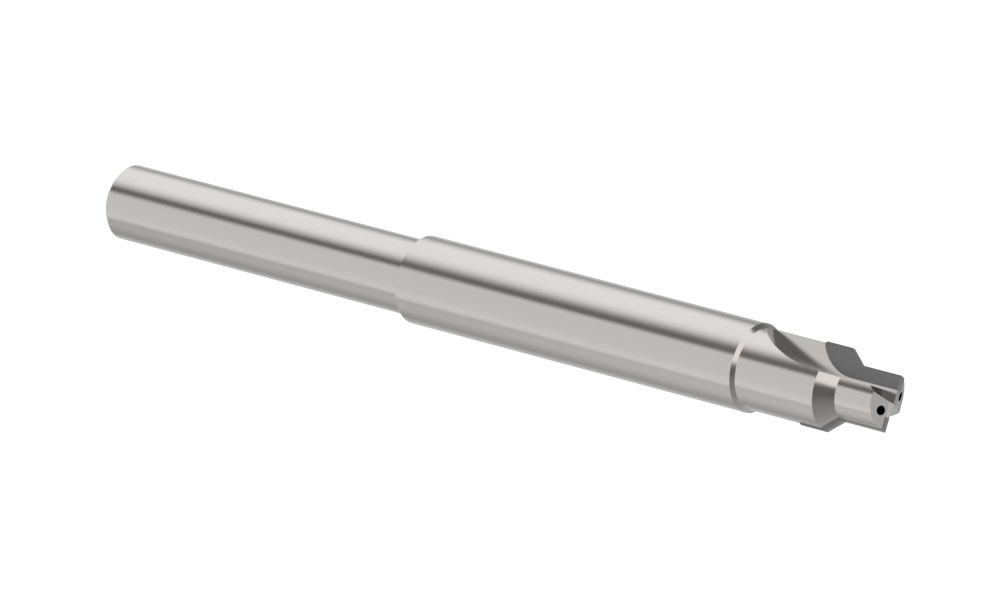

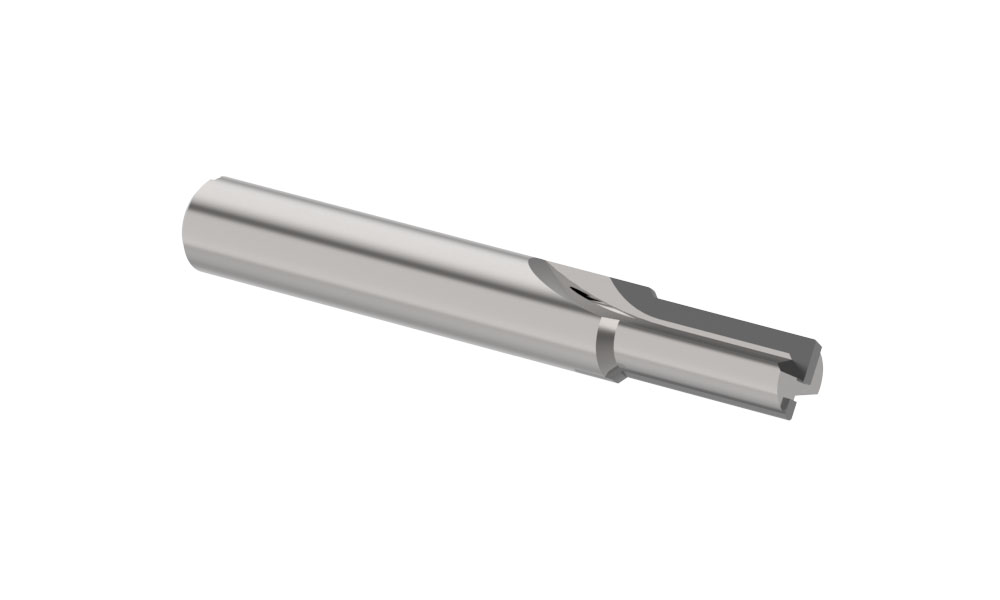

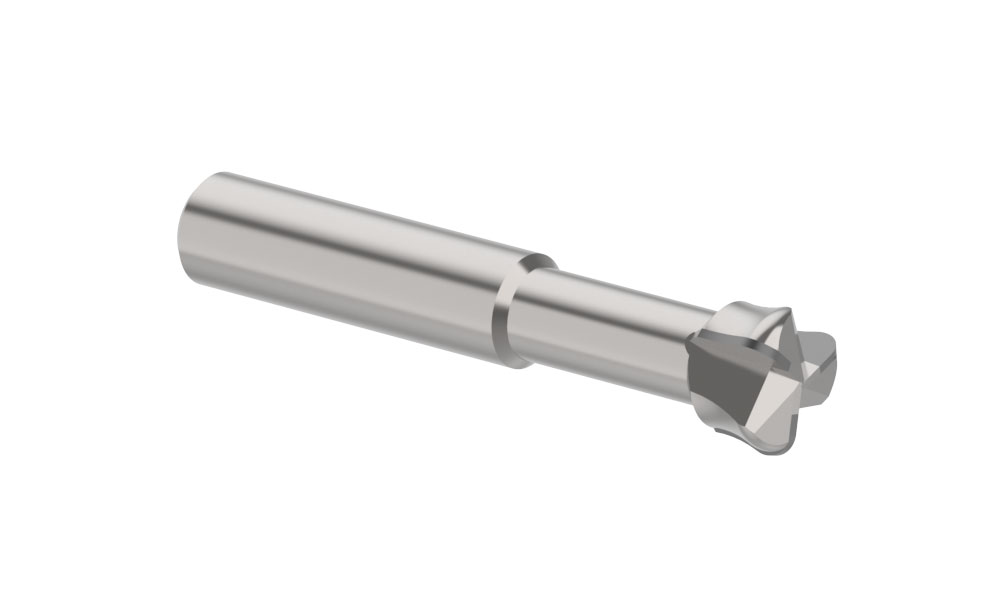

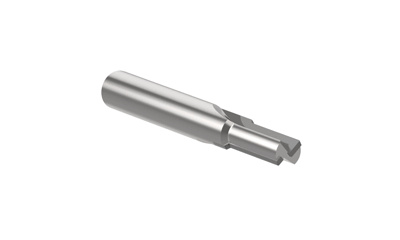

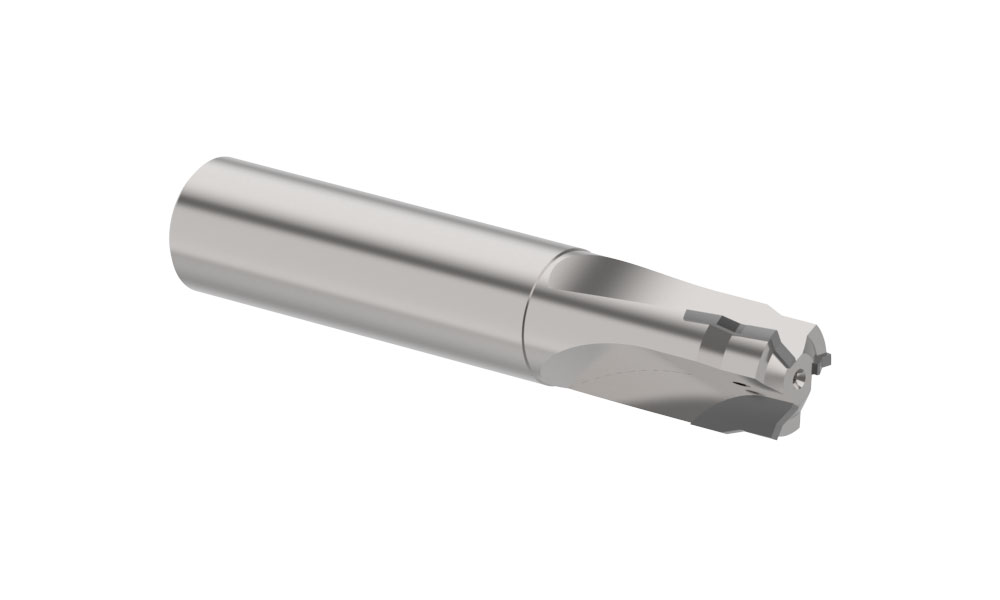

Superion® PCD end mills are carbide bodies with PCD tipped cutting edges which are designed for a variety of aluminums and other non-ferrous materials. PCD end mills have many custom options such as: square end, ball nose, steps, corner radius, and chamfers.
Advantages
  • Allows for higher penetration rates
  • Increases tool life and reduces cycle time
  • PCD grades available by application
Features
  • Straight or shear flutes
  • Internal coolant fed or non-coolant options
  • Superior ground and polished surface finish
  • Multi-flutes available based on application
  • Center cutting
Recommended Materials
Materials
x
Key Icon Steel
Material Key Icon High Temp Alloy
Key Icon Stainless Steel
Material Key Icon Hardened Steel
Key Icon Cast Iron
Material Key Icon Non-Ferrous
KeyIcon Reference

Material Key Icon



Technical Information

Superion®
Literature Thumbnail

Literature Order Number: SOL-SCPCD
