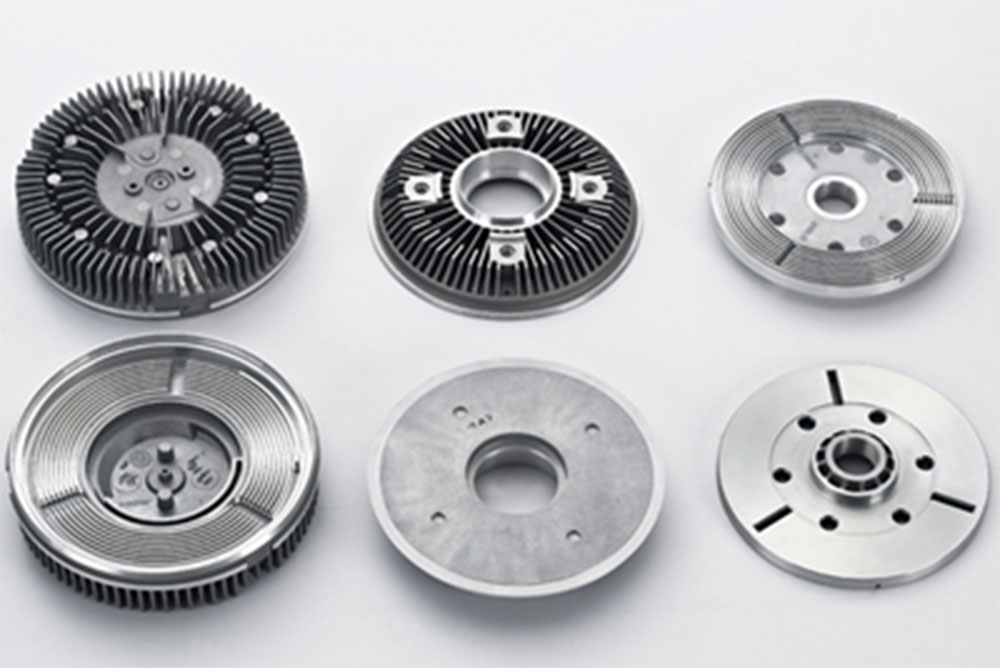

The end-user is machining clutch castings made from 6061 Aluminum, using a horizontal machining center with water soluble coolant.
The customer did not want to use multiple tools for this process. They asked Allied Machine for a solution to complete this application with one tool.
The AccuPort 432 finished the job with one pass and eliminated the need for multiple tooling.
| Product: |
AccuPort 432 |
| Objective: |
Reduce required tooling |
| Industry: |
General machining |
| Part: |
Clutch castings |
| Material: |
6061 Aluminum |
| Hole Ø: |
0.6496" (16.5 mm) |
| Hole Depth: |
0.70" (17.78 mm) |

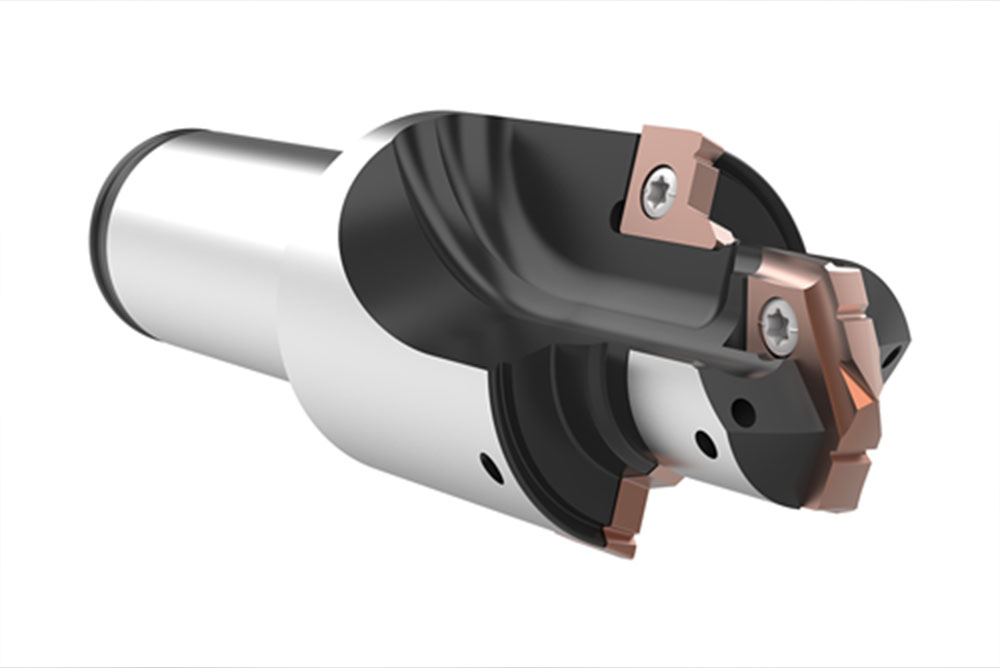

The AccuPort 432 Port Contour Cutter
- Holder: I6149-08R0-20FM
- T-A® Insert: 4C10H-16.5
| Measure |
Competitor |
AccuPort 432 |
| RPM |
3881 |
8232 |
| Feed Rate |
0.012 IPR (0.305 mm/rev) |
0.004 IPR (0.102 mm/rev) |
| Penetration Rate |
46.5 IPM (1181.1 mm/min) |
98.8 IPM (2509.52 mm/min) |
| Cycle Time |
5.13 sec |
5.43 sec |
| Tool Life |
5000 holes |
5000 holes |
| AccuPort 432 offered 41% cost per hole savings over the competitor |
The AccuPort 432 provided:
- 41% cost per hole decrease
- Reduced required tooling
