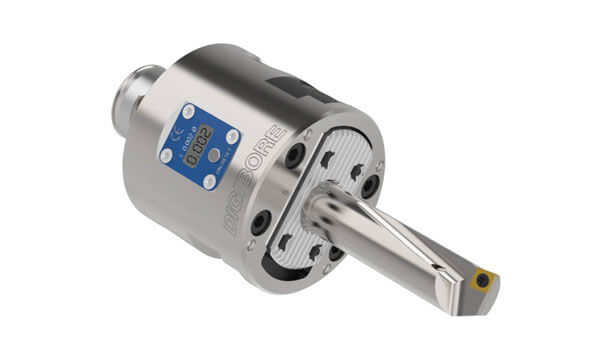

DigiBore Boring Head
The Wohlhaupter® DigiBore boring head provides internal balancing, which makes this tool the stress-free choice to meet your required surface finish. Its digital display allows for quick and accurate diameter corrections at the machine.
Advantages

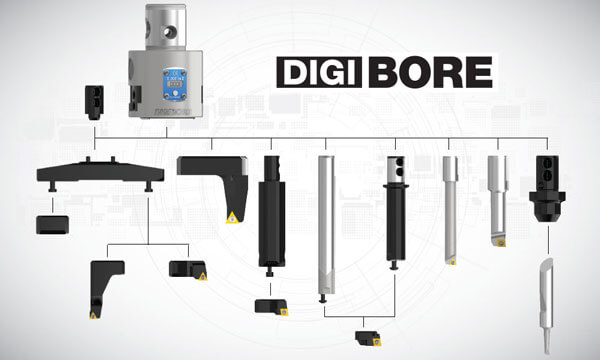

- Bore multiple hole sizes with a broad range of compatible boring components
- Ease the stress of working on different day-to-day projects with boring kits
- Automatic internal balancing improves surface finish, tool life, and accuracy
- Max spindle speed: 16,000 RPM
Features
- Diameter range: 0.118" - 8.189" (3.00 mm - 208.00 mm)
- Offers outside turning capabilities
- Outside turning diameter range: 0.079" - 4.488" (2.00 mm - 114.00 mm)
- Digital readout for simple 0.0001" (0.002 mm) diameter adjustments
- Coolant through
- Max coolant pressure: 580 PSI (40 bar)
- WEEE-Reg.-Nr. DE 15820388

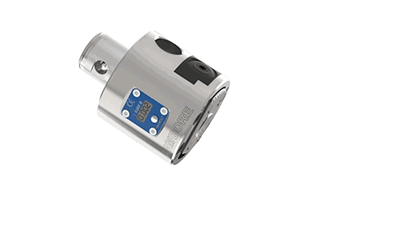

Additional DigiBore Offerings
Wohlhaupter Kits
Technical Information
