AccuPort 432® Solid Carbide
Where To Buy

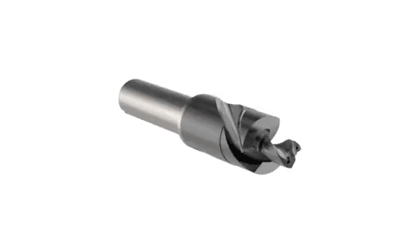

The solid carbide AccuPort 432 offers a high-quality, repeatable, chatter-free portingsolution at smaller tube sizes. Designed with a universal geometry aimed at targeting arange of materials, there is also an opportunity to customize geometries and coatings tooptimize the tool for specific application needs.
Advantages
- Excellent repeatability
- Excellent surface finish
- Eliminates the need for pre-drilling
- Drill and finish form ports in one operation
- Universal geometry
- Custom coating and geometry options available
Features
- #2, #3, and #4 tube sizes
- J1926
- AS5202
- ISO6149
Other AccuPort 432® Products
AccuPort 432® Replaceable Insert
Technical Information
Product Specifications
Product Type
Multifunctional
Port Range
Size 4 - Size 32
Port Spec Options
J1926, I6149, G1731, AS5202
Pilot Inserts
GEN2 T-A®, T-A®
Pilot Insert Material
HSS, Super Cobalt, Premium Cobalt, Carbide C2 (K20), Carbide C5 (P40), Carbide C1 (K35), Carbide C3 (K10)
Pilot Insert Coating
AM300®, AM200®, TiN, TiAlN, TiCN
Form Insert Material
Carbide C5 (P40), Carbide C3 (K35)
Form Insert Coating
AM200®, TiAlN
Holder
AccuPort 432® Holder
Shank Options
Imperial and Metric Flange
Coolant
Through Coolant
