420 (410) Fine Boring Heads

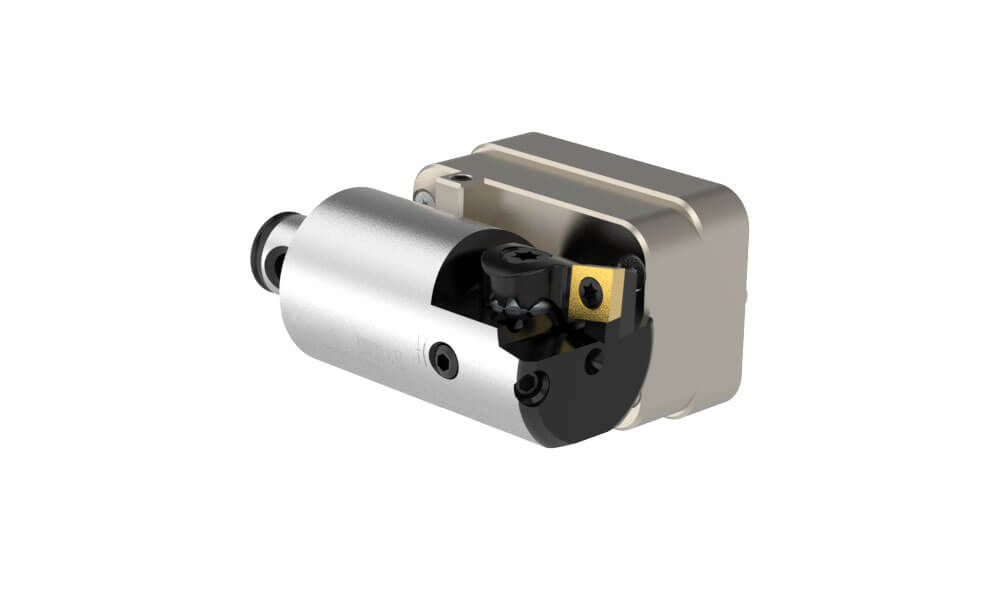

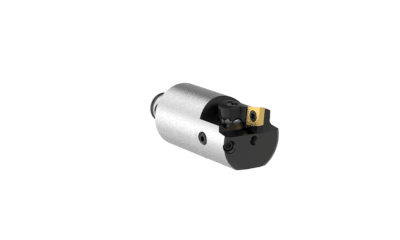

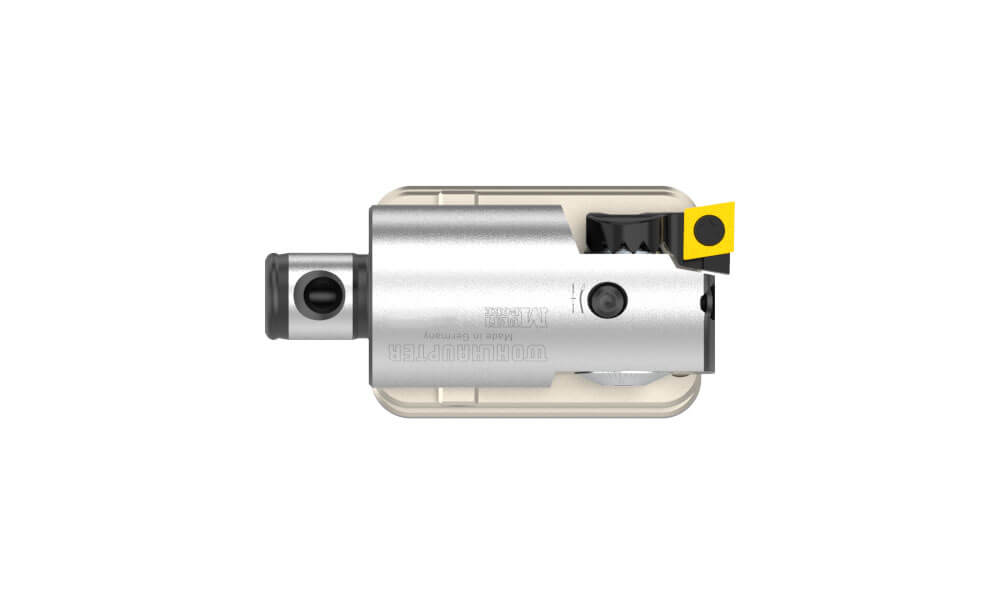

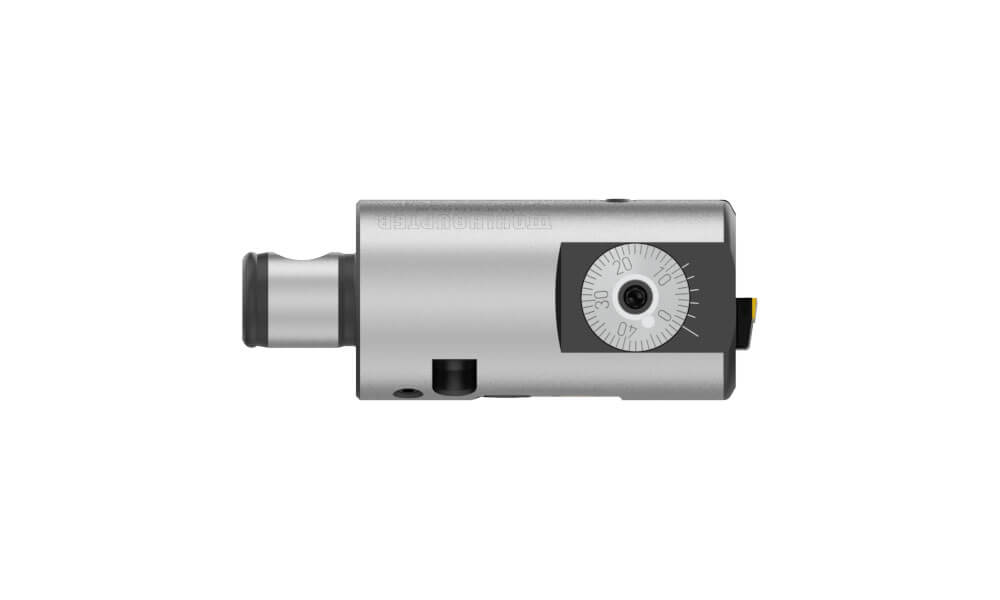

The Wohlhaupter® 420 (410) boring heads offer precision boring and are equipped with a 3ETECH docking port for easy digital diameter adjustments. It is the world’s smallest digital boring head with a peripheral cutting edge, capable of boring as small as 0.787” (20.00 mm).
Advantages
  • Digital adjustment provides ease of use vs. vernier scale
  • 3ETECH provides the ability to run with maximum coolant pressure while eliminating the risk of damaging digital components during operation
  • Using the same 3ETECH module on multiple boring tools reduces tooling cost
  • Diameter adjustments can be made at the machine
  • Max cutting speed: 3,281 SFM (1,000 m/min)
Features
  • Diameter range: 0.787” – 1.142” (20.00 mm – 29.00 mm)
  • Coolant through
  • Equipped with a 3ETECH digital readout module docking port
  • Digital diameter adjustment of 0.0001" (0.002 mm)
  • WEEE-Reg.-Nr. DE 15820388
Recommended Materials
Materials
x
Key Icon Steel
Material Key Icon High Temp Alloy
Key Icon Stainless Steel
Material Key Icon Hardened Steel
Key Icon Cast Iron
Material Key Icon Non-Ferrous
KeyIcon Reference

Material Key Icon
Material Key Icon
Material Key Icon
Material Key Icon
Material Key Icon
Material Key Icon



Recommended Industries
Industries
x
Key Icon Medical
Industry Key Icon Renewable Energy/ Energy
Key Icon Automotive
Industry Key Icon Aerospace
Key Icon Firearms
Industry Key Icon Agriculture
Key Icon Oil and Gas
Industry Key Icon Marine
Key Icon General Production
Industry Key Icon Heavy Equipment
Key Icon Hydraulics
Industry Key Icon Tool, Mold, and Die
Key Icon Structural Steel Fabricator
Key Icon Reference
Industry
Industry
Industry
Industry
Industry
Industry
Industry
Industry
Industry
Industry
Industry
Industry
Industry



Technical Information

Fine Boring Tools
Literature Thumbnail

Available Online Only
