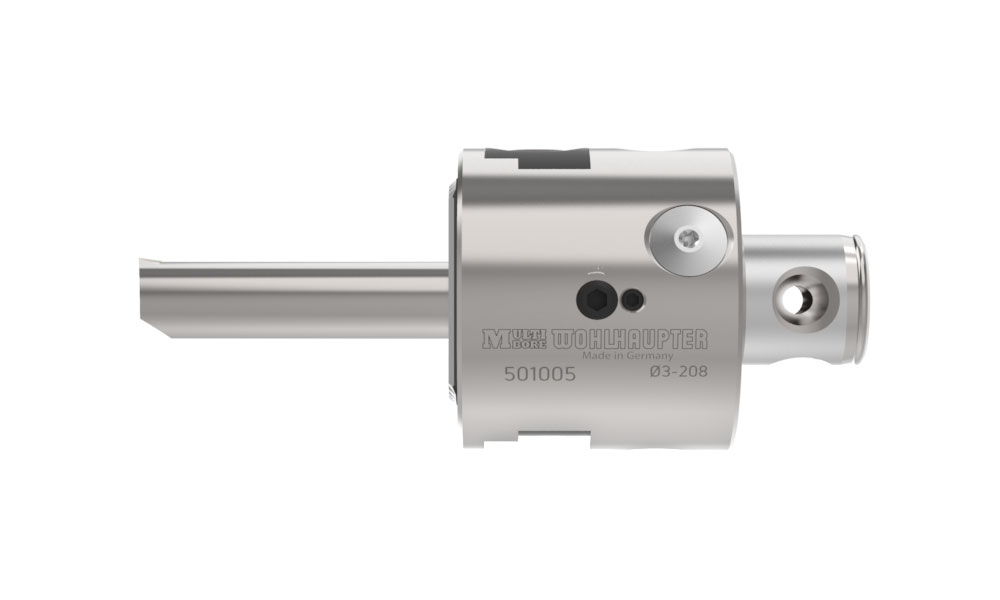

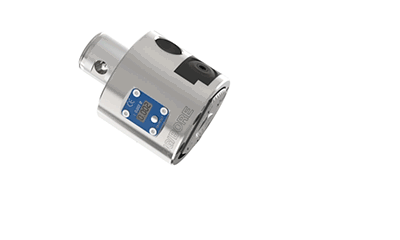

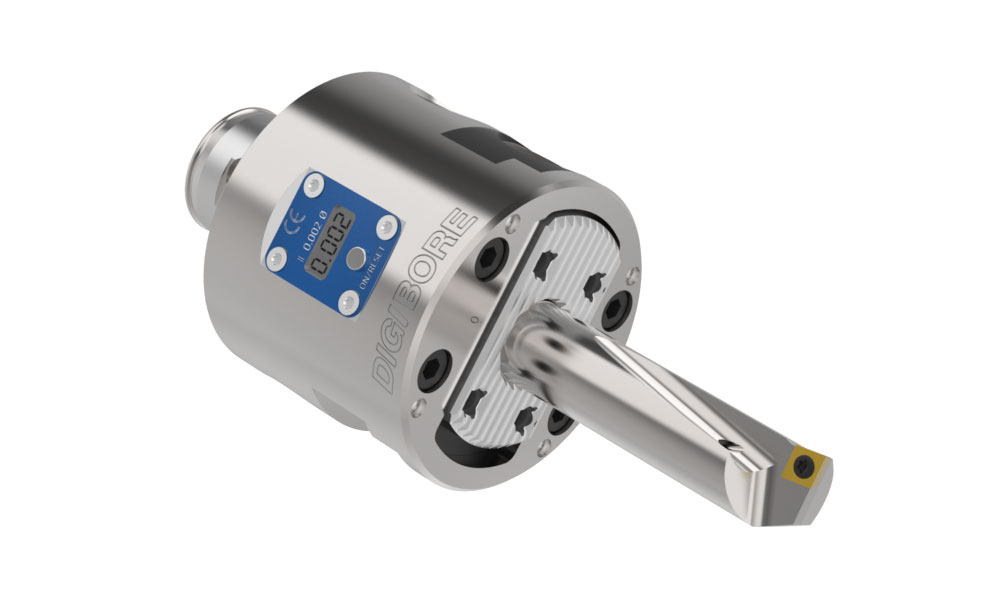

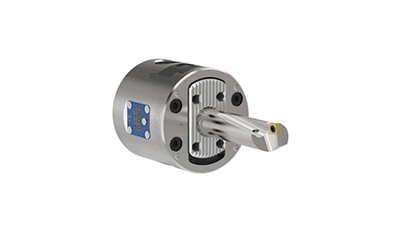

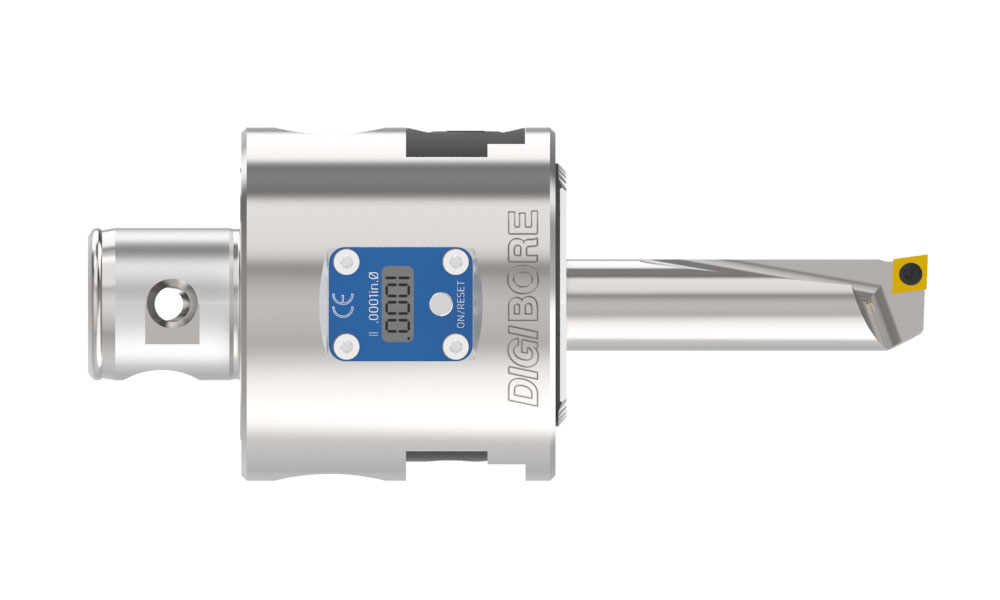

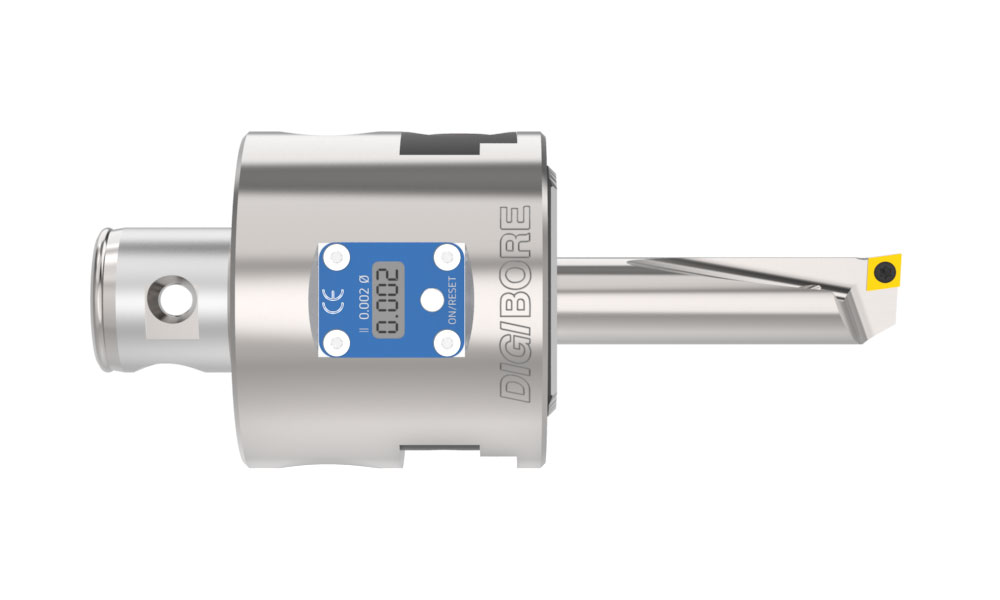

DigiBore Boring Head    360 Icon
The Wohlhaupter® DigiBore boring head provides internal balancing, which makes this tool the stress-free choice to meet your required surface finish. Its digital display allows for quick and accurate diameter corrections at the machine.
Advantages

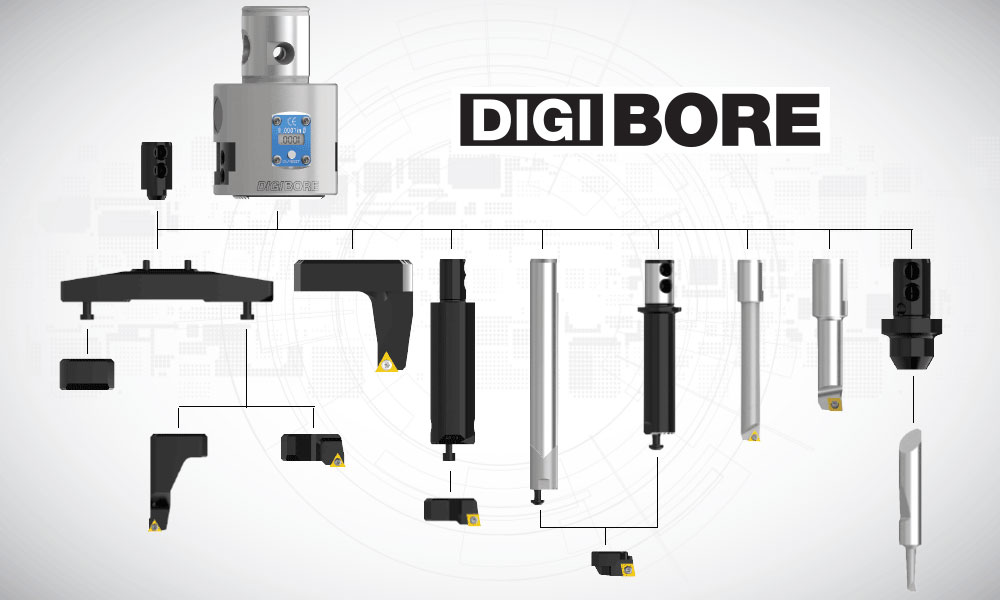

  • Bore multiple hole sizes with a broad range of compatible boring components
  • Ease the stress of working on different day-to-day projects with boring kits
  • Automatic internal balancing improves surface finish, tool life, and accuracy
  • Max spindle speed: 16,000 RPM
Features
  • Diameter range: 0.118" - 8.189" (3.00mm - 208.00mm)
  • Offers outside turning capabilities
  • Outside turning diameter range: 0.079" - 4.488" (2.00mm - 114.00mm)
  • Digital readout for simple 0.0001" (0.002mm) diameter adjustments
  • Coolant through
  • Max coolant pressure: 580 PSI (40 bar)
  • WEEE-Reg.-Nr. DE 15820388
Recommended Materials
Materials
x
Key Icon Steel
Material Key Icon High Temp Alloy
Key Icon Stainless Steel
Material Key Icon Hardened Steel
Key Icon Cast Iron
Material Key Icon Non-Ferrous
KeyIcon Reference

Material Key Icon
Material Key Icon
Material Key Icon
Material Key Icon
Material Key Icon
Material Key Icon



Recommended Industries
Industries
x
Key Icon Medical
Industry Key Icon Renewable Energy/ Energy
Key Icon Automotive
Industry Key Icon Aerospace
Key Icon Firearms
Industry Key Icon Agriculture
Key Icon Oil and Gas
Industry Key Icon Marine
Key Icon General Production
Industry Key Icon Heavy Equipment
Key Icon Hydraulics
Industry Key Icon Tool, Mold, and Die
Key Icon Structural Steel Fabricator
Key Icon Reference
Industry
Industry
Industry
Industry
Industry
Industry
Industry
Industry
Industry
Industry
Industry
Industry
Industry



Technical Information

Versatile Boring Heads
Literature Thumbnail

Available Online Only

Recommended Cutting Data
Wohlhaupter Boring Recommended Cutting Data
