Modular MVS Connection

The MVS Connection

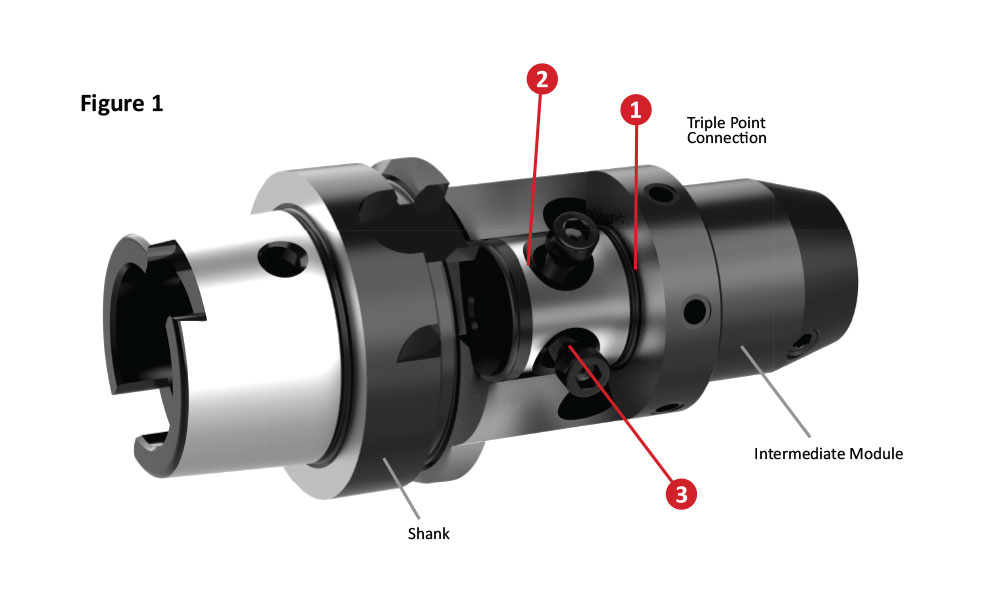

Wohlhaupter® GmbH developed the world's first modular tooling system called MultiBore in 1973. The modular tooling system was designed to be compatible with all machine spindles, and its connection features a triple point clamp (figure 1). The triple point clamp maximizes rigidity, and creates an accuracy less than 3µm when the tool is changed.
  • Ensures high axial clamping forces on mating surfaces
  • Provides maximum rigidity
  • Threaded taper pins for precise cutter positioning

MVS Color Guide

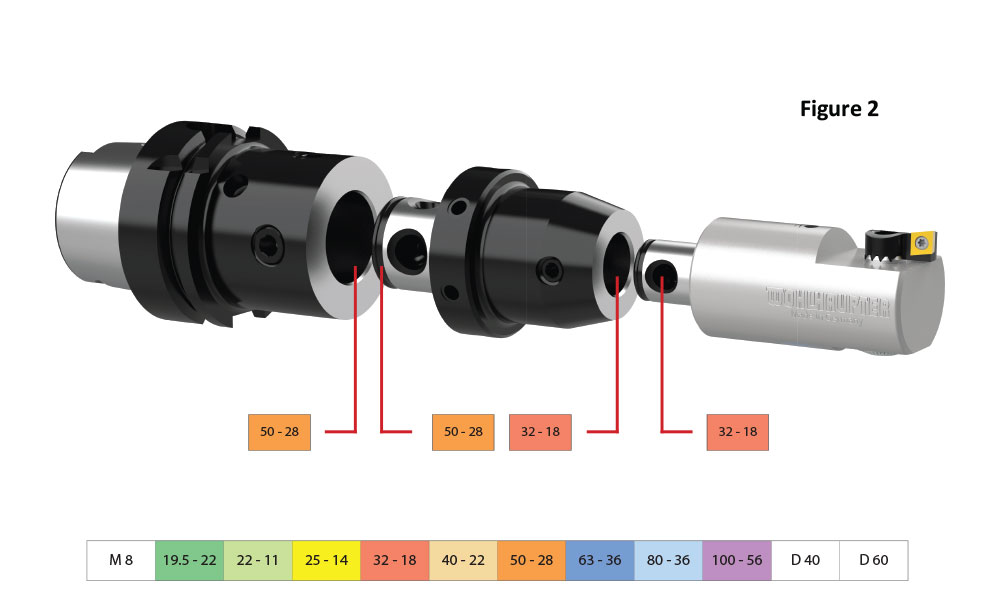

Wohlhaupter® created a unique color-coding system to find the right connections for different tool components quickly and easily. Each Wohlhaupter / MVS connection size has its own color-coding. Simply match the colors to select the correct combination of tool components (figure 2).
Advantages
  • Ensures high axial clamping forces on mating surfaces
  • Provides maximum rigidity
  • Threaded taper pins for precise cutter positioning
  • Compatable with all machine spindles
Features
  • Coolant-through
  • Quick and easy color-coding system for tooling components
Technical Information

Master Wohlhaupter® Catalog
MultiBore® System Tools

Literature Order Number: B10-WHL

Additional Resources and Guidelines

Setup / Assembly Information

How to assemble Wohlhaupter® MVS Connection components
