Axial Grooving Tools

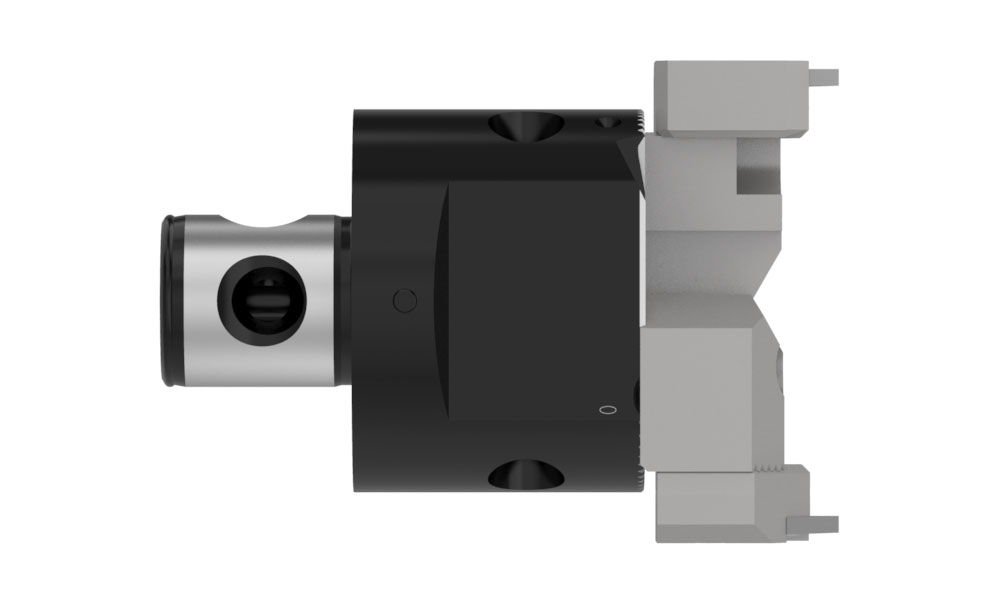

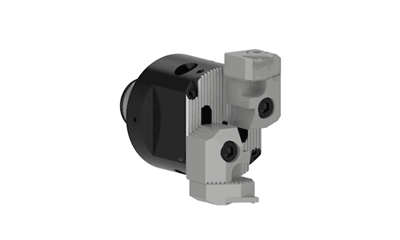

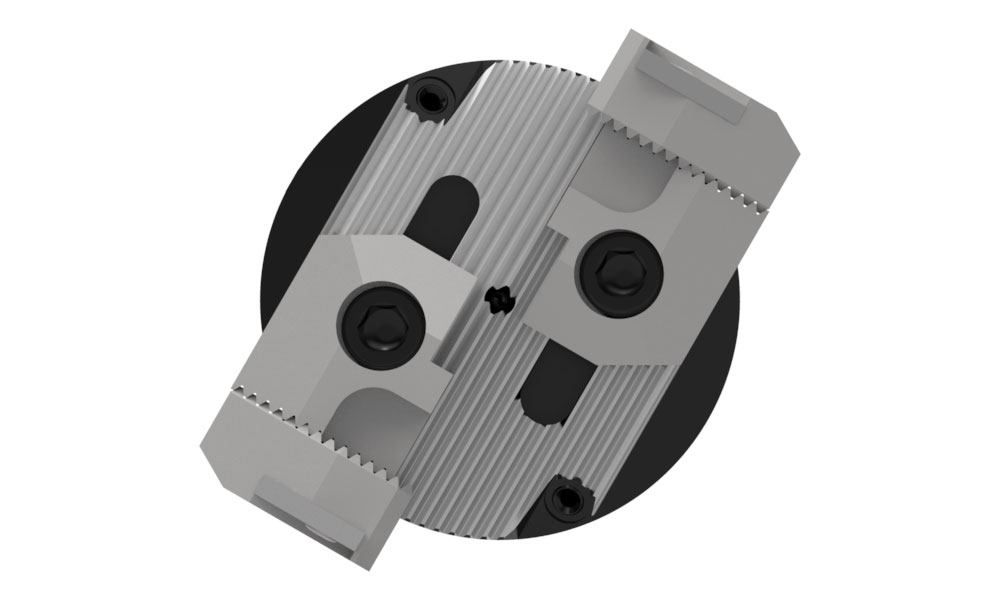

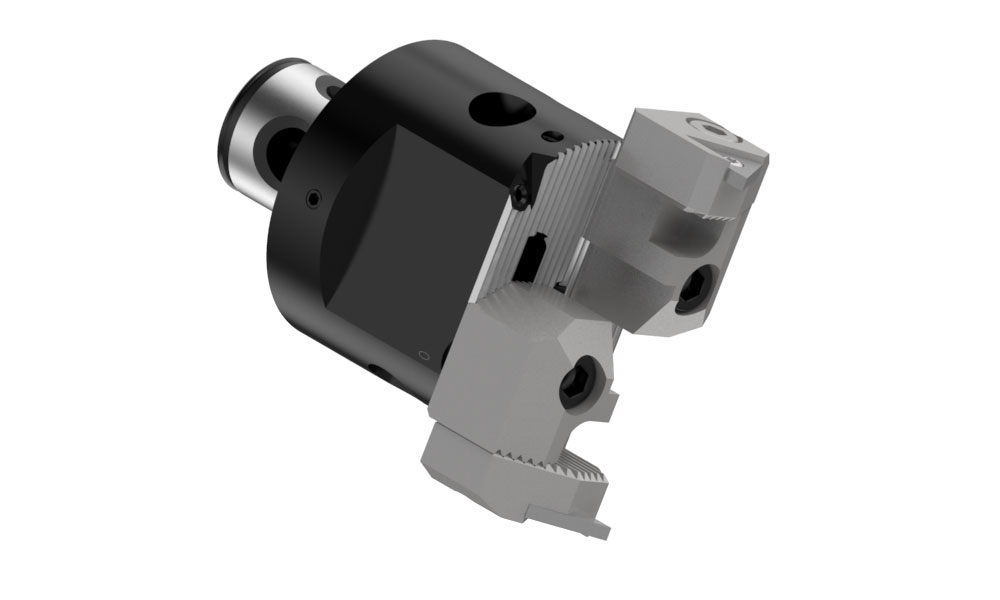

Create grooves with replaceable axial grooving insert holders. Wohlhaupter® replaceable axial grooving insert holders can be mounted onto serrated tool bodies used in various rough machining applications.

The replaceable insert holders and inserts reduce setup time while still providing the maximum durability you expect. Inserts can easily be replaced for different axial grooving applications.

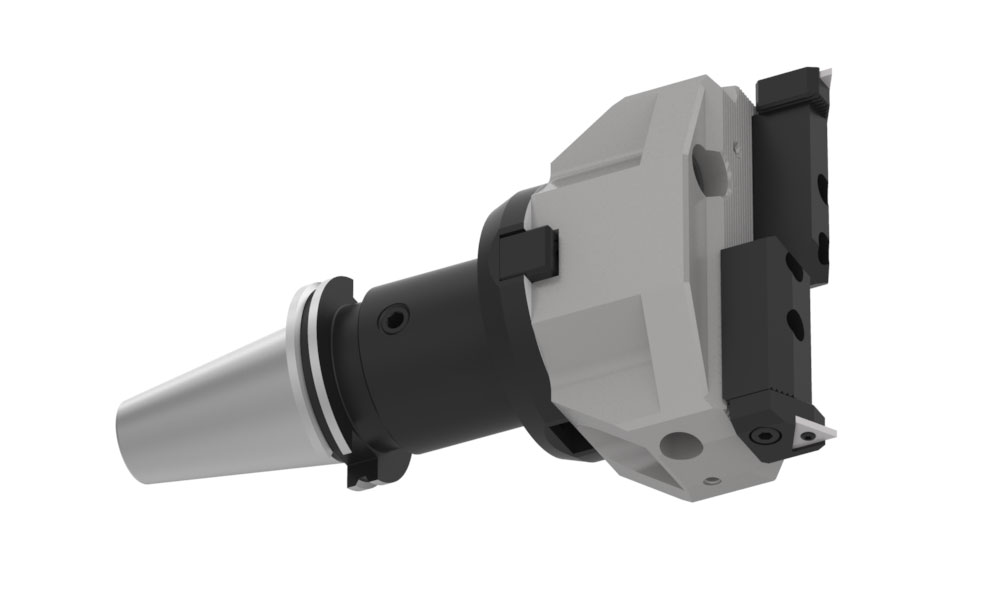

Grooving insert holders are also available for use with large diameter Alu-Line serrated tool bodies and slides found in section E of the Master Wohlhaupter boring catalog (B10-E: 13).

Advantages
  • Replaceable insert holders and inserts to save setup time and costs
  • Wohlhaupter MVS connection capable of adapting to any machine
  • Available for standard o-ring grooving applications
Features
  • Diameter range: 0.787" - 8.070" (20.00mm - 205.00mm)
  • Chamfering insert holders are also available for use with large diameter Alu-Line serrated tool bodies and slides found in section E of the Master Wohlhaupter boring catalog (B10-E: 13): 7.874" - 128.149" (200.00mm - 3255.00mm)
  • Groove width: 0.039" - 0.196" (1.00mm - 5.00mm)
  • Groove depth: 0.064" - 0.194" (1.65mm - 4.95mm)
  • Coolant through
Recommended Materials
Materials
x
Steel
High Temp Alloy
Stainless Steel
Hardened Steel
Cast Iron
Aluminum
Icon Reference




Recommended Industries
Industries
x
Medical
Renewable Energy/ Energy
Automotive
Aerospace
Firearms
Agriculture
Oil and Gas
Marine
General Production
Heavy Equipment
Hydraulics
Tool, Mold, and Die
Structural Steel Fabricator
Icon Reference
