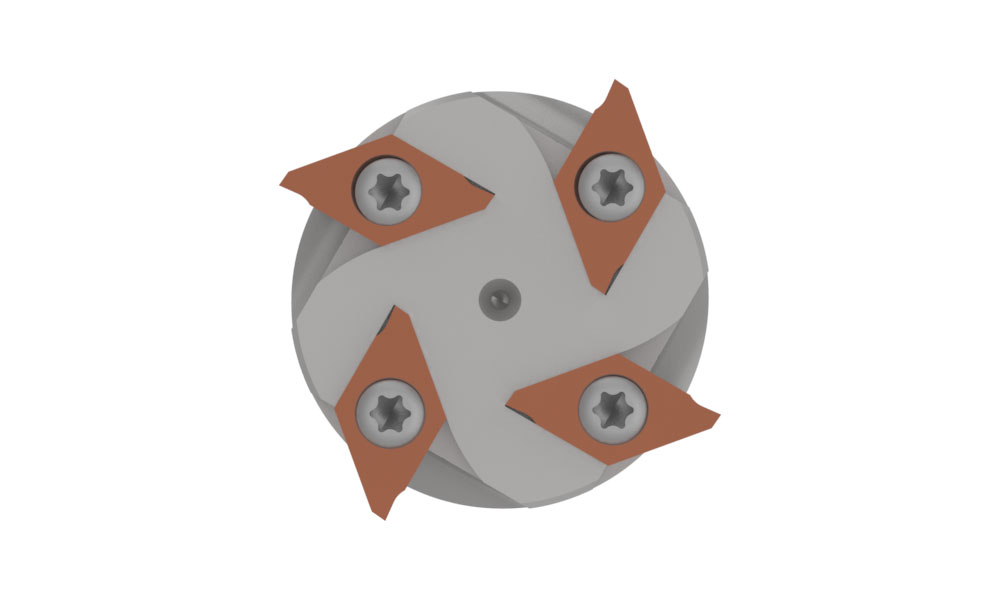

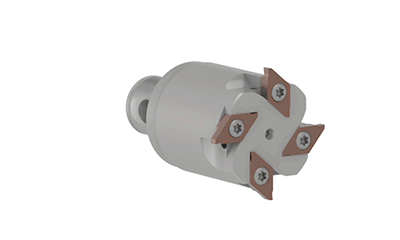

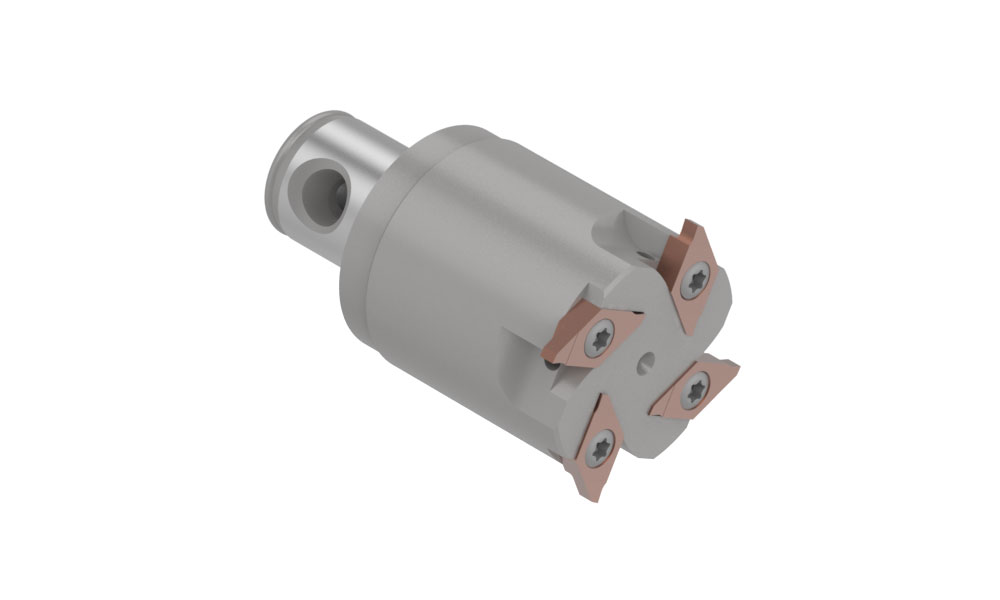

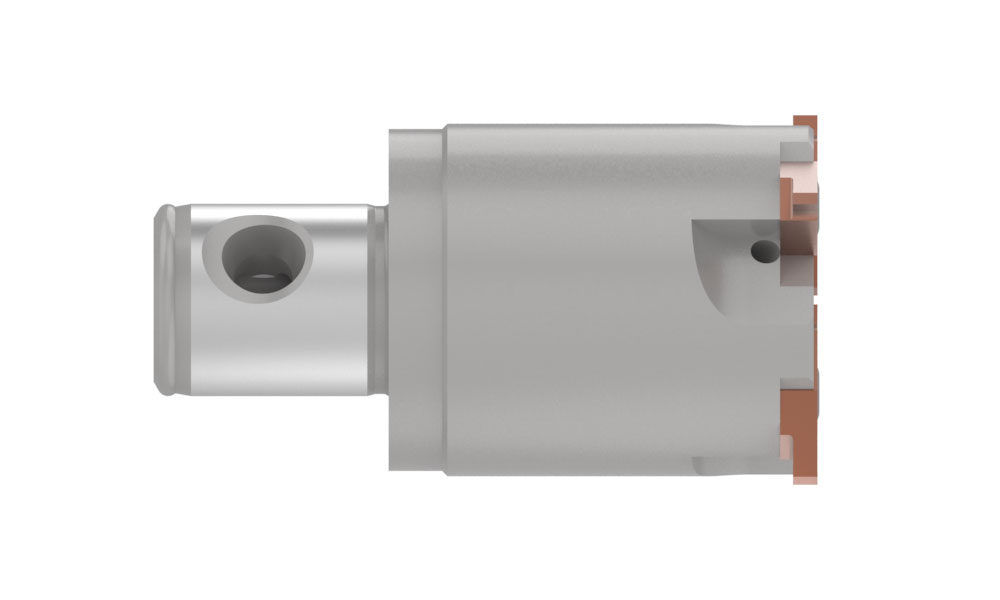

Radial Grooving Tools
Create radial grooves in holes on any machine with the Wohlhaupter® radial grooving tools. Wohlhaupter grooving tools for circular milling applications feature replaceable inserts to reduce costs. They also feature the MVS connection to adapt to any machine.


Advantages
  • Solid body for increased rigidity
  • Replaceable inserts reduce costs
  • Wohlhaupter MVS connection capable of adapting to any machine
Features
  • Diameter range: 0.787" - 3.110" (20.00mm - 79.00mm)
  • Groove width range: 0.048" - 0.208" (1.24mm - 5.29mm)
  • Groove depth range: 0.051" - 0.177" (1.30mm - 4.50mm)
  • Coolant through
Recommended Materials
Materials
x
Steel
High Temp Alloy
Stainless Steel
Hardened Steel
Cast Iron
Aluminum
Icon Reference




Recommended Industries
Industries
x
Medical
Renewable Energy/ Energy
Automotive
Aerospace
Firearms
Agriculture
Oil and Gas
Marine
General Production
Heavy Equipment
Hydraulics
Tool, Mold, and Die
Structural Steel Fabricator
Icon Reference



Technical Information

Wohlhaupter® Rough Machining Tools
Rough Machining Boring Tools

Available Online Only

Additional Resources and Guidelines
