Products > Drilling > Solid Carbide Drills > ASC 320® > Overview

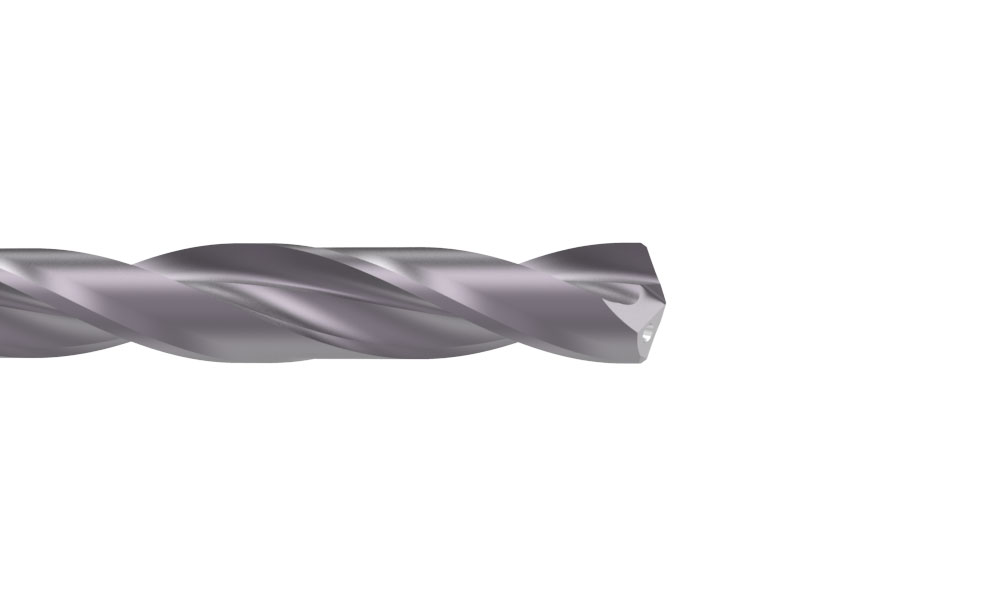

ASC 320®

ASC 320® is a coolant-fed solid carbide line available in diameters from 3 mm - 20 mm and in depths of 3.5xD, 6xD, and 9xD. A unique combination of geometry and coating allows for use in a wide variety of applications.

Advantages

Extended tool life
Excellent chip control
Factory reconditioning available
Utilizes a multilayered coating

Features

Reinforced shank adds durability
Through-coolant design
Available in 3.5xD, 6xD, and 9xD drill depth to diameter ratios

Contact Engineering Support

Recommended Materials

Materials

x

Steel

High Temp Alloy

Stainless Steel

Hardened Steel

Cast Iron

Non-Ferrous

Icon Reference

Recommended Industries

Industries

x

Medical

Renewable Energy/ Energy

Automotive

Aerospace

Firearms

Agriculture

Oil and Gas

Marine

General Production

Heavy Equipment

Hydraulics

Tool, Mold, and Die

Structural Steel Fabricator

Icon Reference

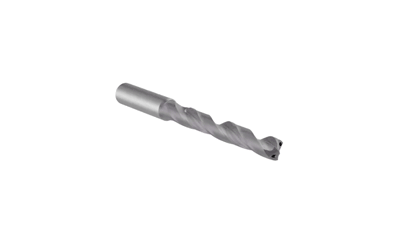

ASC 320: rotate

ASC 320: rotate

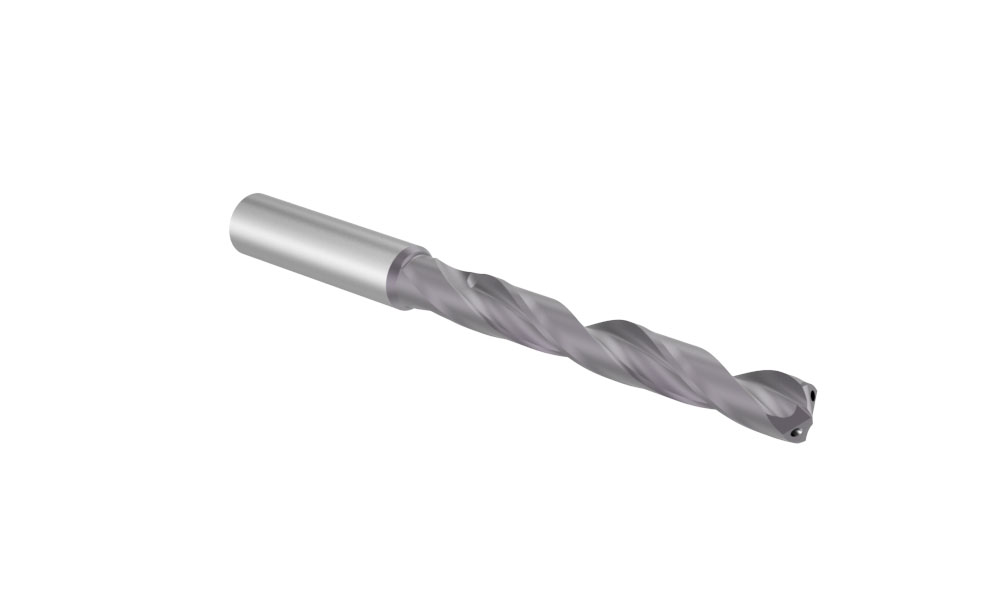

ASC 320 Angle

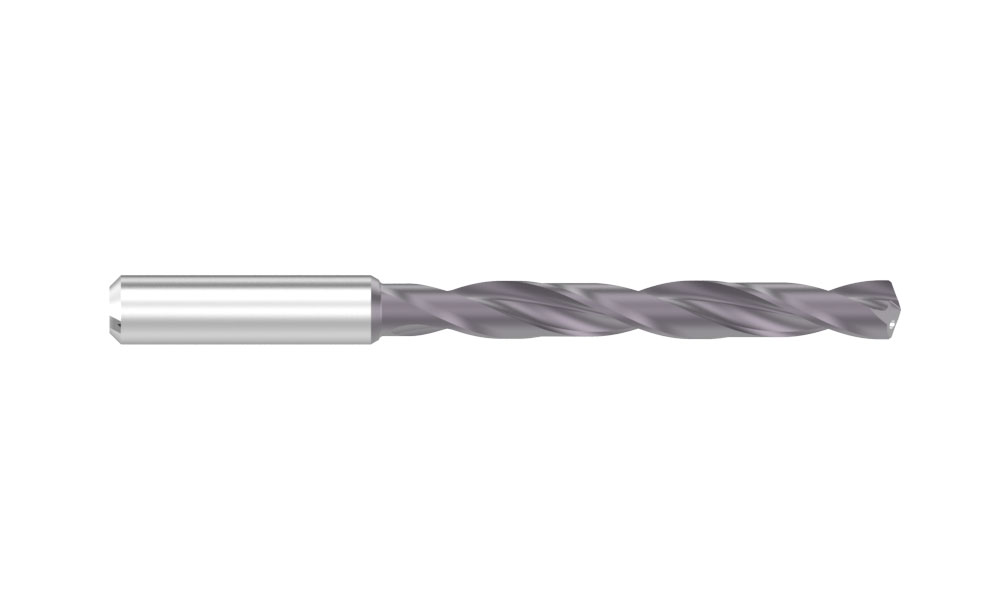

ASC 320 Side 1

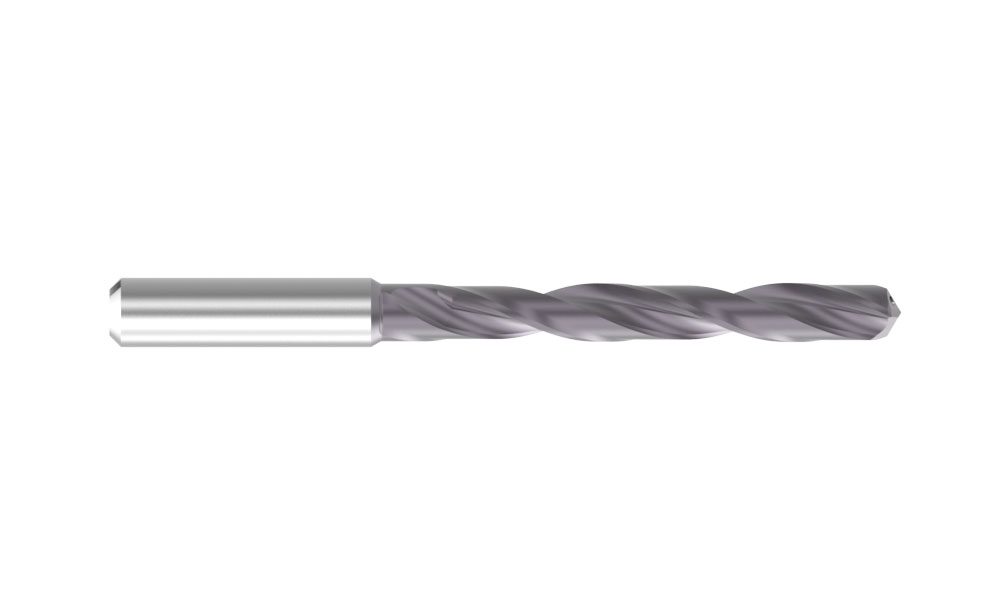

ASC 320 Side 2

Technical Information

Product Specifications

Product Type

Solid Carbide Drill

Diameter Range

0.1181" - 0.7874" (3.00 mm - 20.00 mm)

Coating

TiAlN

Drill Depth

3.5xD, 6xD, 9xD

Shank Options

Imperial, Metric

Coolant

Through Coolant

Product Nomenclature

ASC 320

ASC 320®

x

3 = Solid carbide

3

Length

x

35 = 3.5xD
60 = 6xD
90 = 9xD

60

Style

x

E = English (Imperial)
M = Metric

M

Diameter

x

07500 = 0.7500"

07500

Substrate Geometry

x

A21 = Standard

A21

Multi-Layer Coating

x

M = TiAlN

M

High Penetration Drilling

Literature Thumbnail

View Pdf

Download Pdf

Email Pdf

Available Online Only

Recommended Cutting Data

ASC 320

Metric Cutting Data

Imperial Cutting Data

Additional Resources and Guidelines

Thumbnail Image

Cost Per Hole Worksheet
