HPM2M Solid Carbide Drill

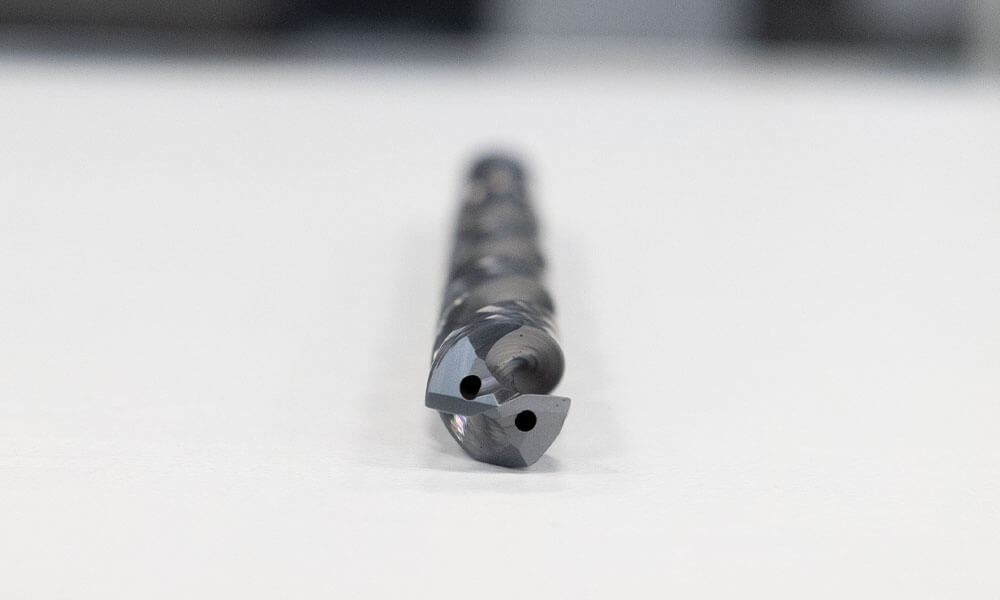

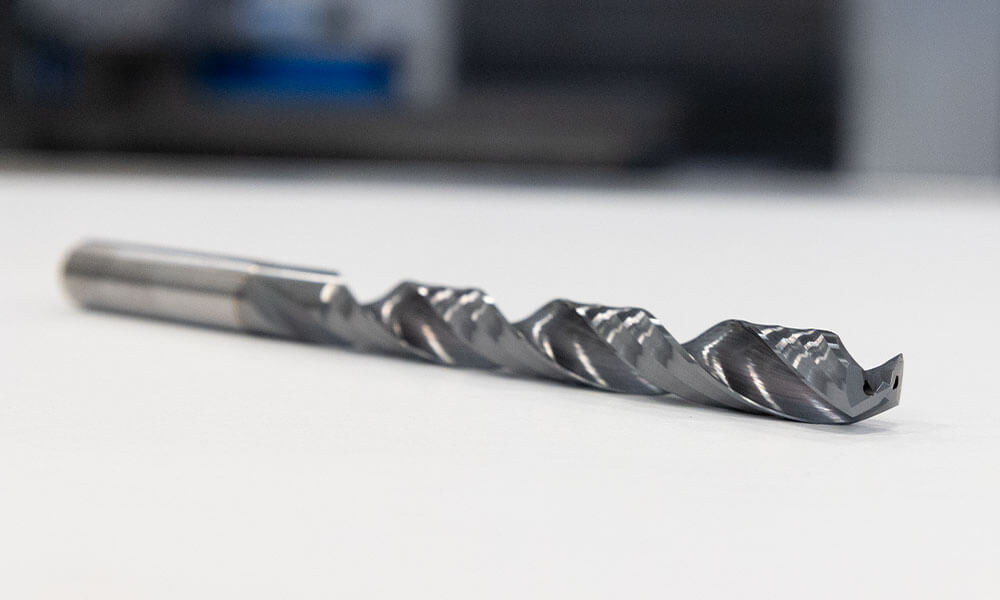

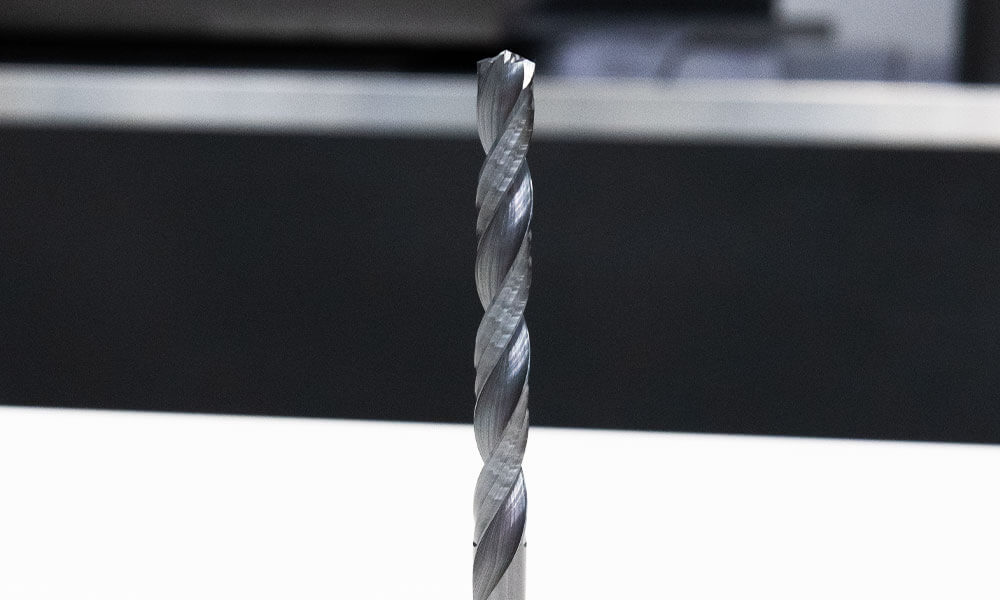

The Superion® solid carbide drill with HPM2M geometry is the HPM geometry with a double margin. HPM2M has superior performance in interrupted cuts and drill depths greater than 8xD.
  • Recommended for improved hole tolerance and hole finish
  • Recommended for interrupted cuts and drill depths greater than 8xD
  • HPS geometry with a double margin
  • Double margins are optimized with a unique web for full engagement of all four margins at entry, leading to better stability and chip evacuation
  • AM420 coating for enhanced heat thresholds and tool life
Recommended Materials
Key Icon Steel
Material Key Icon High Temp Alloy
Key Icon Stainless Steel
Material Key Icon Hardened Steel
Key Icon Cast Iron
Material Key Icon Non-Ferrous
KeyIcon Reference

Material Key Icon

Technical Information

Solid Carbide / PCD Drills
Literature Thumbnail

Literature Order Number: A15-SUP

Recommended Cutting Data
Superion Cutting Data

Additional Resources and Guidelines
