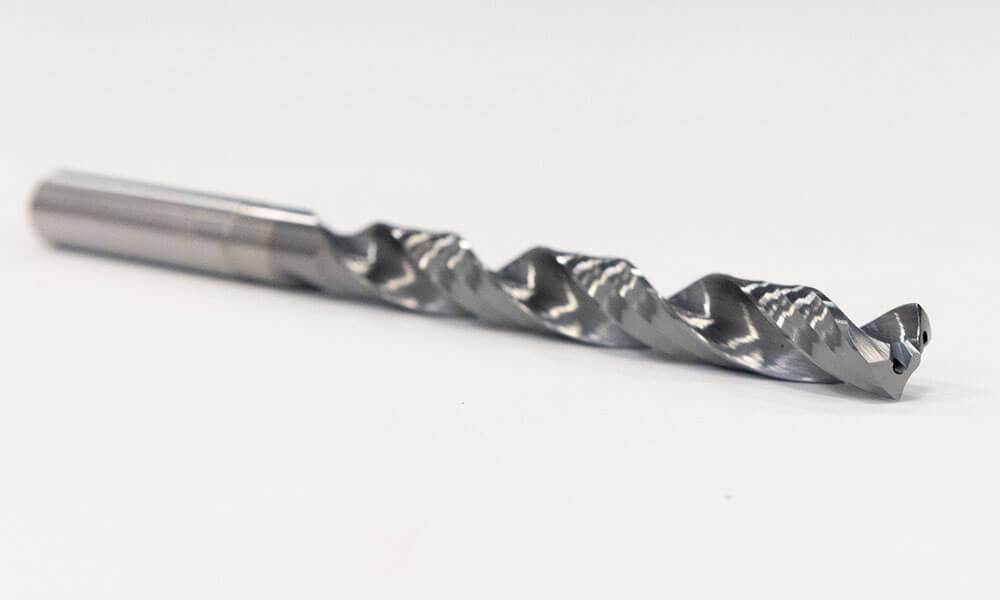

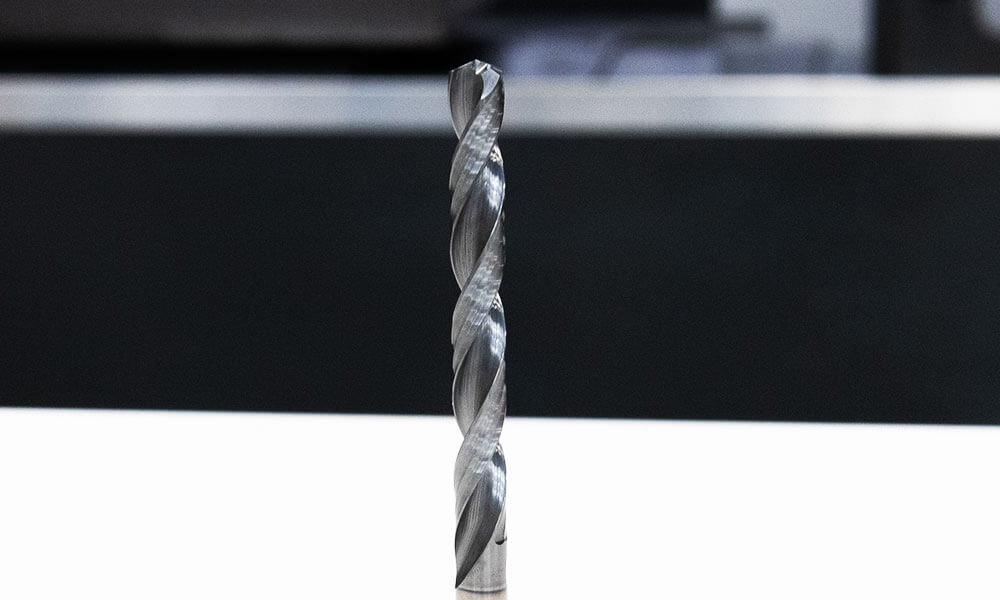

HPS2M Solid Carbide Drill
The Superion® solid carbide drill with HPS2M geometry is the HPS geometry with a double margin. HPS2M has superior performance in interrupted cuts and drill depths greater than 8xD. With two coating options, the HPS2M can be altered to best perform in the required application.
Advantages
  • Recommended for improved hole tolerance and hole finish
  • Recommended for interrupted cuts and drill depths greater than 8xD
  • Ideal for drilling gray/white and SG/nodular cast iron
Features
  • HPS geometry with a double margin
  • Double margins are optimized with a unique web for full engagement of all four margins at entry, leading to better stability and chip evacuation
  • AM420 coating for enhanced heat thresholds and tool life in steels
  • AM440 coating for reduced flank wear in cast irons
  • AM460 coating provides industry leading tool life in stainless and heat resistant super alloy (HRSA) materials with our highest heat threshold coating available
Recommended Materials
Materials
x
Key Icon Steel
Material Key Icon High Temp Alloy
Key Icon Stainless Steel
Material Key Icon Hardened Steel
Key Icon Cast Iron
Material Key Icon Non-Ferrous
KeyIcon Reference

Material Key Icon
Material Key Icon
Material Key Icon



Technical Information

Solid Carbide / PCD Drills
Literature Thumbnail

Literature Order Number: A15-SUP

Recommended Cutting Data
Superion Cutting Data

Additional Resources and Guidelines
