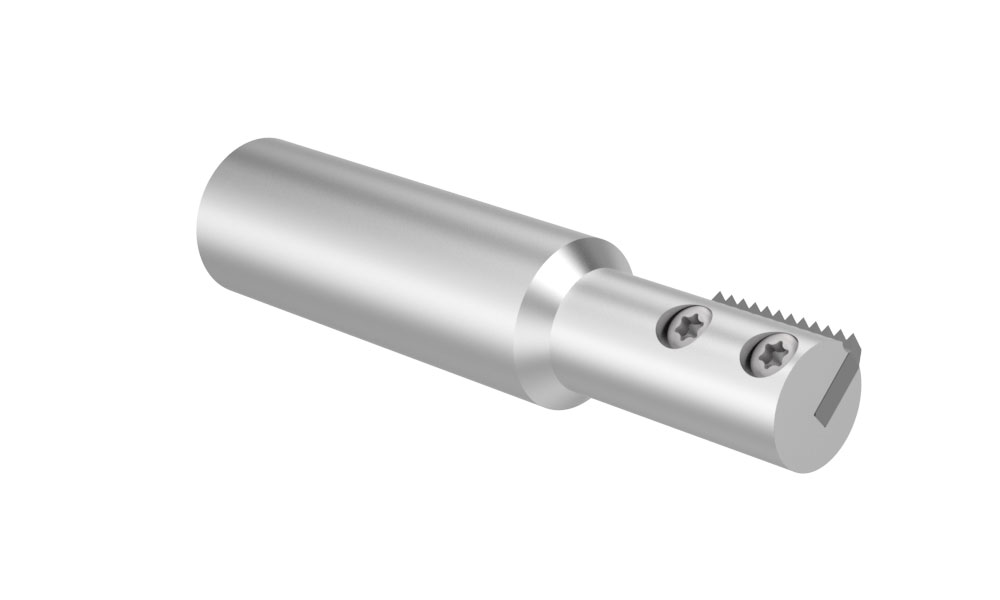

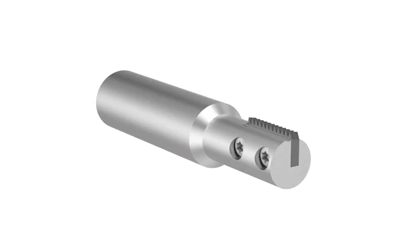

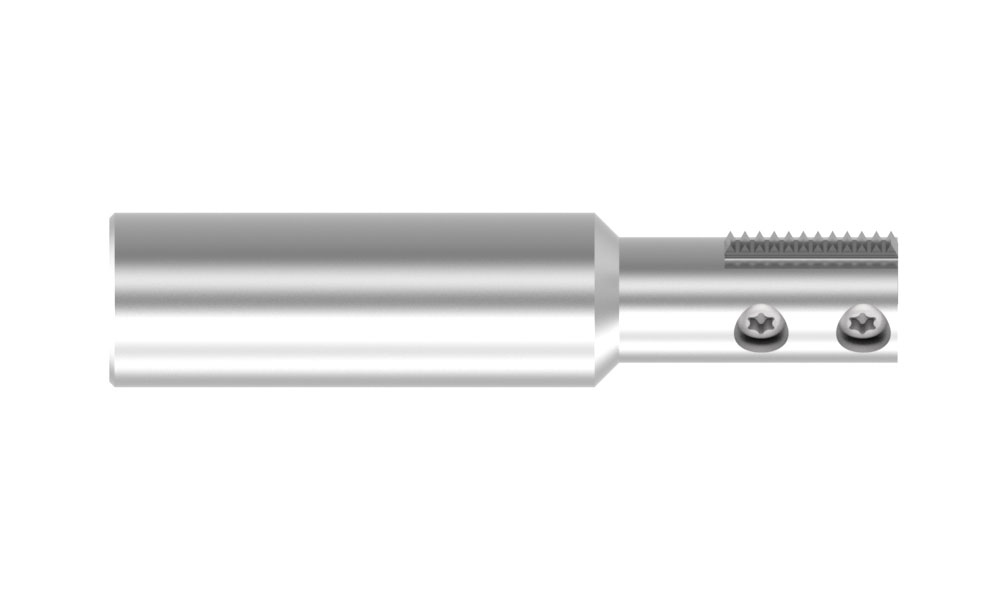

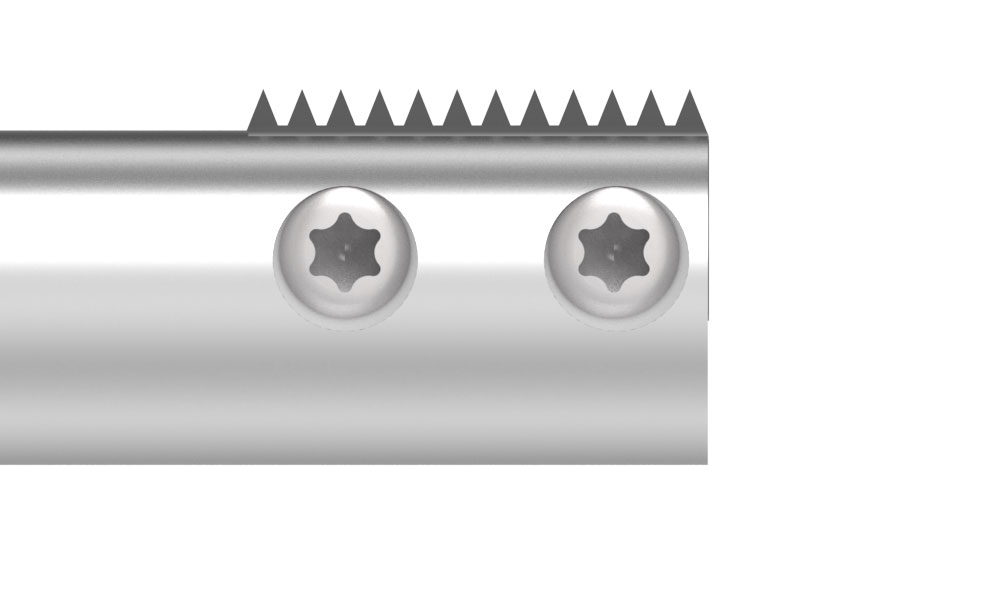

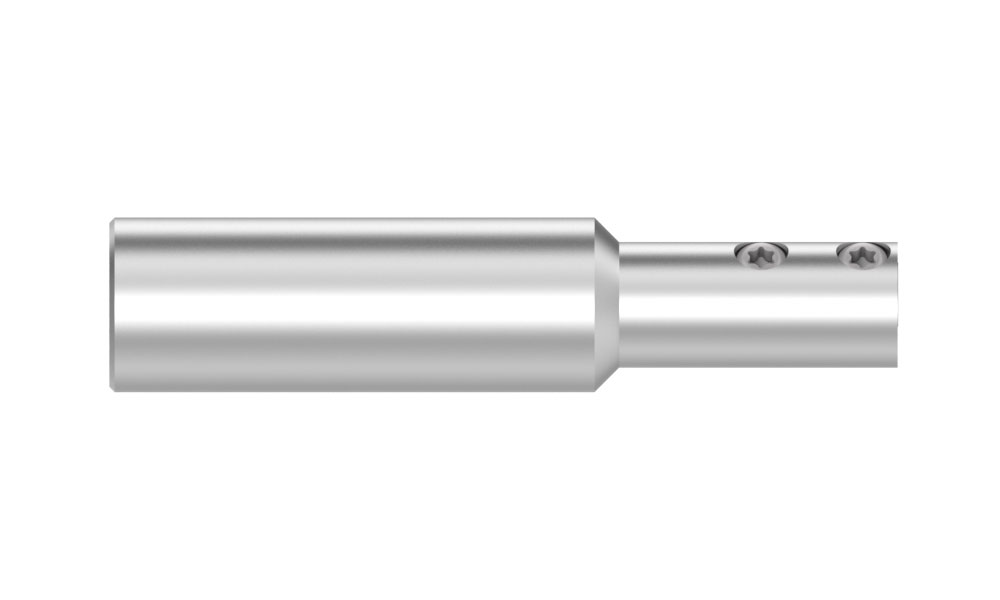

AccuThread® 856 Bolt-In Style    360 Icon
Thread mills drastically reduce the occurrences of scrap when compared to taps, which makes them desirable when manufacturing large and/or costly components. AccuThread® 856 are a premium thread milling product backed by Allied’s experienced technical staff. AccuThread® 856 replaceable thread mills provide quality threads when compared to other thread making processes and allow for easy replacement of cutting edges.
Advantages
  • Provides a 25-50% increase in tool life over the competition
  • Increased strength and rigidity when cutting forces are applied
  • Holders are engineered to dampen vibration
  • Reduces tooling inventory cost
  • No resharpening required
  • The bolt-in connection allows for small cutter diameters
Features
  • Allied's proprietary AM210® coating
  • Stainless steel holders
  • Wide range of forms and pitches
  • Imperial and metric shanks
  • Online programming
Recommended Materials
Materials
x
Key Icon Steel
Material Key Icon High Temp Alloy
Key Icon Stainless Steel
Material Key Icon Hardened Steel
Key Icon Cast Iron
Material Key Icon Non-Ferrous
KeyIcon Reference

Material Key Icon
Material Key Icon
Material Key Icon
Material Key Icon
Material Key Icon
Material Key Icon



Recommended Industries
Industries
x
Key Icon Medical
Industry Key Icon Renewable Energy/ Energy
Key Icon Automotive
Industry Key Icon Aerospace
Key Icon Firearms
Industry Key Icon Agriculture
Key Icon Oil and Gas
Industry Key Icon Marine
Key Icon General Production
Industry Key Icon Heavy Equipment
Key Icon Hydraulics
Industry Key Icon Tool, Mold, and Die
Key Icon Structural Steel Fabricator
Key Icon Reference
Industry
Industry
Industry
Industry
Industry
Industry
Industry



Technical Information

Product Specifications
Product Type
Inserted Thread Mill
Thread Form
NPT, NPTF, BSPT, BSPP, UN, UNJ, ISO
Shank Options
Imperial, Metric
Coating
AM210®
Substrate Options
Carbide
Coolant
Non-coolant
Geometry Options
Positive Rake

Product Nomenclature
AccuThread® 856 Indexable Insert Holders
Holder Style
x
THT = Tapered Head
THN = Straight Head
THT
-
Length of Insert
x
0400 = 0.400
0400
-
Shank Designation
x
1F = 1 flute
2F = 2 flutes
3F = 3 flutes
5F = 5 flutes


6F = 6 flutes
7F = 7 flutes
8F = 8 flutes
1F
Length of Insert
x
075 = 3/4
100 = 1.00
150 = 1.50
075
Shank Designation
x
Blank = Inch
M = Metric
M
AccuThread® 856 Indexable Inserts
Insert Style
x
TP = Bolt-in
TP
Insert Length
x
075 = 3/4
100 = 1.00
150 = 1.50
075
Coating
x
K = AM210®
A = TiAIN
U = Uncoated
K
-
Thread Class
x
UN = UN
UNJ = UNJ
NPT = NPT
NPTF = NPTF
BSPP = BSPP

BSPT  = BSPT
M = ISO
FA = Full ACME
AP  = API Round
UN
Thread Pitch
x
20 = UN
1.0 = ISO
32
Thread Style
x
I = Internal
E = External
I
Solid Carbide and Indexable Thread Mills
Literature Thumbnail

Available Online Only

Recommended Cutting Data
AccuThread 856 Indexable Neutral Rake
AccuThread 856 Indexable Positive Rake
