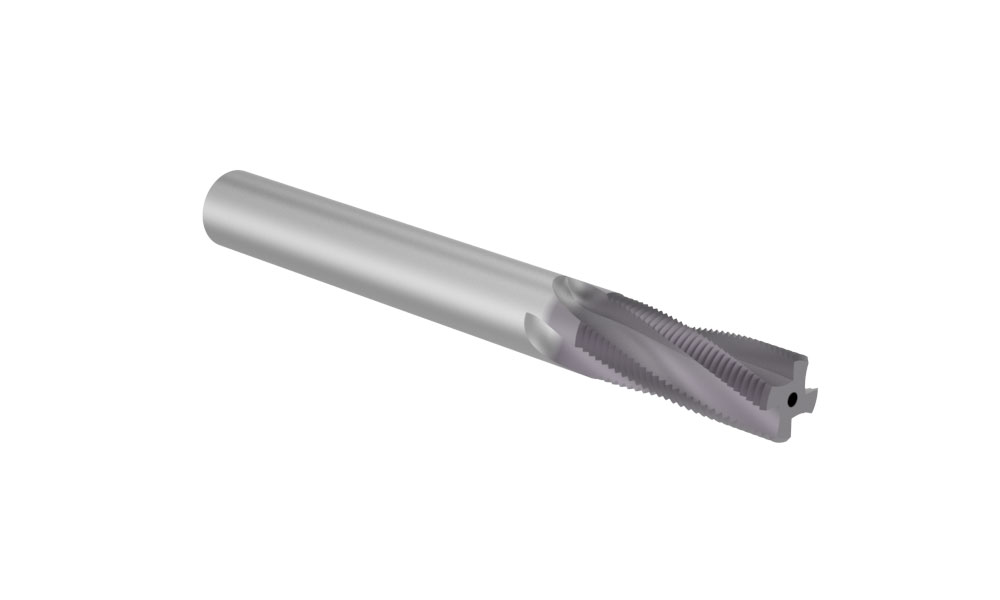

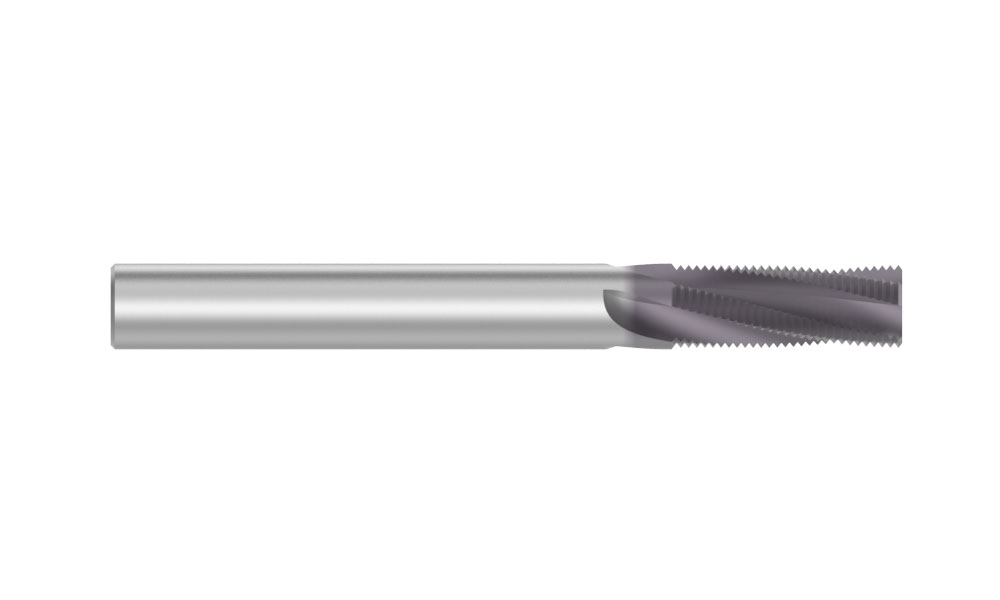

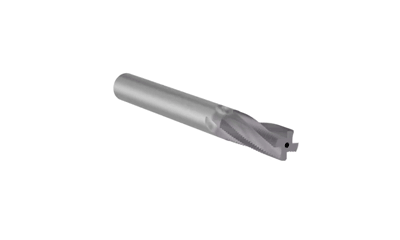

ThreadMills USA®    360 Icon
Thread mills drastically reduce the occurrences of scrap when compared to taps, which makes them desirable when manufacturing large and/or costly components. ThreadMills USA® is an economic thread milling product backed by Allied’s experienced technical staff and provides quality threads when compared to other thread making processes. ThreadMills USA® is an Allied Machine & Engineering Company known for producing high quality thread mills.

Watch Video
Advantages
  • Quality thread mills at an affordable price
  • One tool can cut right and left hand threads
  • Increased strength and rigidity when cutting forces are applied
  • Standard cutting lengths accommodate multiple applications without the need for an engineered special
  • Reduced chipping and longer tool life in blind hole applications when using coolant through
  • Re-sharpening service available
Features
  • TiAlN coating
  • Thicker core

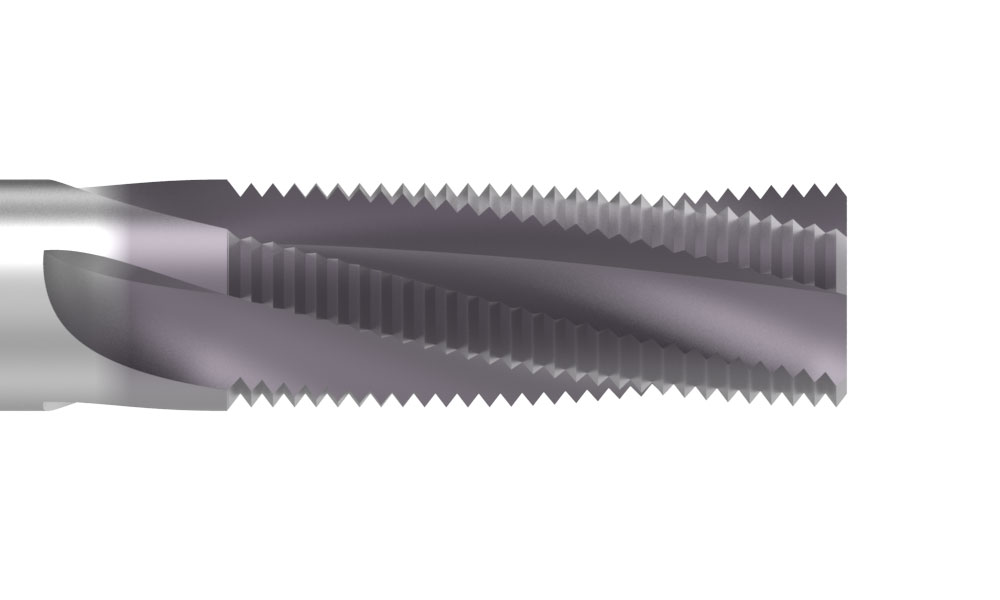

  • Helical flutes
  • Wide range of forms and pitches
  • Imperial and metric shanks
  • Coolant through
  • Online programming
Recommended Materials
Materials
x
Key Icon Steel
Material Key Icon High Temp Alloy
Key Icon Stainless Steel
Material Key Icon Hardened Steel
Key Icon Cast Iron
Material Key Icon Non-Ferrous
KeyIcon Reference

Material Key Icon
Material Key Icon
Material Key Icon
Material Key Icon
Material Key Icon
Material Key Icon



Recommended Industries
Industries
x
Key Icon Medical
Industry Key Icon Renewable Energy/ Energy
Key Icon Automotive
Industry Key Icon Aerospace
Key Icon Firearms
Industry Key Icon Agriculture
Key Icon Oil and Gas
Industry Key Icon Marine
Key Icon General Production
Industry Key Icon Heavy Equipment
Key Icon Hydraulics
Industry Key Icon Tool, Mold, and Die
Key Icon Structural Steel Fabricator
Key Icon Reference
Industry
Industry
Industry
Industry
Industry
Industry
Industry
Industry
Industry



Technical Information

Product Specifications
Product Type
Solid carbide thread mill
Thread Form
NPT, NPTF, NPS, NPSF, BSPP, BSPT, BSW, UN, ISO
Shank Options
Imperial, Metric
Coating
TiAlN
Substrate Options
Carbide
Coolant
Coolant and Non-coolant

Product Nomenclature
ThreadMills USA® Solid Carbide Thread Mills
Thread Mill
x
TM = TiAIN
TMFT = Uncoated
HDTM = Heavy duty
HDTMFT = Heavy duty uncoated

TM
Min Thread Diameter
x
250 = 1/4 (English)
08 = #8 (number drill)
45 = M4.5 (ISO)

250
Thread Pitch
x
20 = UN 20 TPI
075 = ISO 0.75
NPT = All pipe threads will show thread form
20
Optional
x
CH = Coolant hole
DE = Double end
NPT = All pipe threads will show thread form
CH
Shank
x
Blank = Imperial
M = Metric
M
Solid Carbide and Indexable Thread Mills
