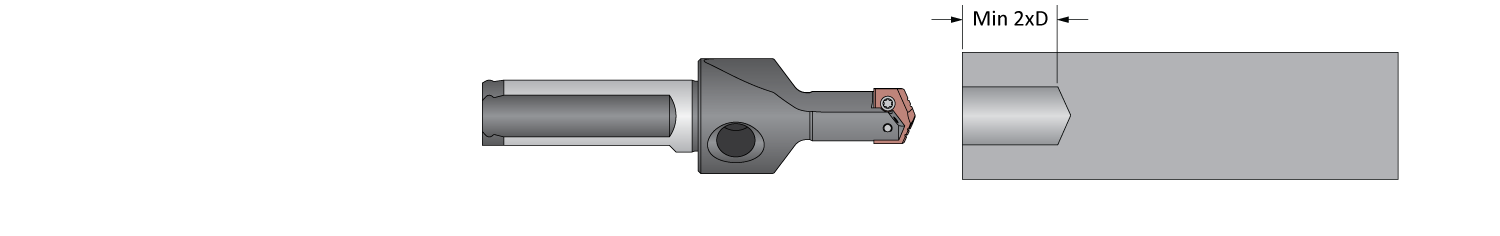

Step 1: Pilot Hole

100% RPM
100% IPR (mm/rev)

Details:

Establish the pilot hole using the same diameter short drill to a depth of 2xD minimum.
Utilize a pilot drill with the same or larger included point angle.

Coolant: ON

Step 2: Feed-In

50 RPM max
12 IPM (300 mm/min)

Details:

Feed the longer drill within 1/16" (1.5mm) short of the established pilot hole bottom at a maximum of 50 RPM and 12 IPM (300 mm/min) feed rate.

Coolant: OFF

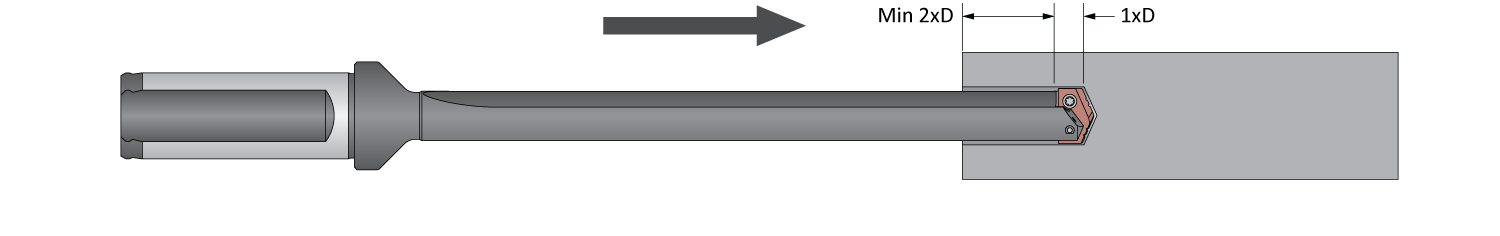

Step 3: Deep Hole Transition Drilling

50% RPM
75% IPR (mm/rev)

Details:

Drill additional 1xD past the bottom of the pilot hole at 50% reduction of recommended speed and 25% reduction of recommended feed.
Minimum of 1 second dwell is required to meet full speed before feeding.

Coolant: ON

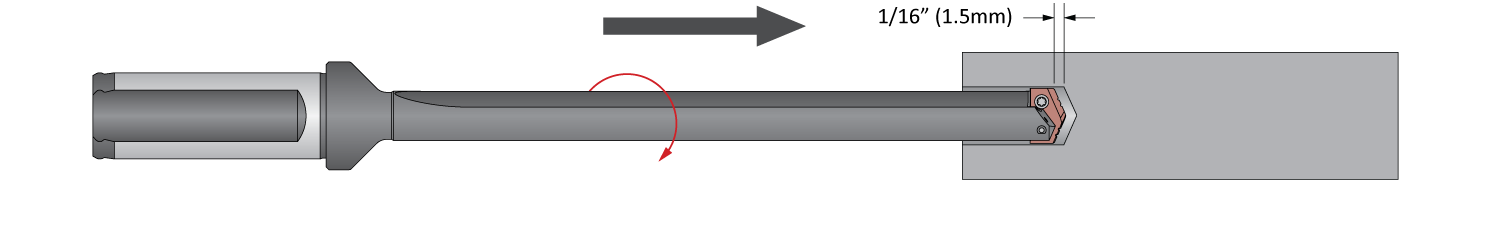

Step 4: Deep Hole Drilling - Blind

100% RPM
100% IPR (mm/rev)

Details:

Drill to full depth at recommended speed and feed for longer drill according to Allied speed and feed charts.
No peck cycle recommended.

Coolant: ON

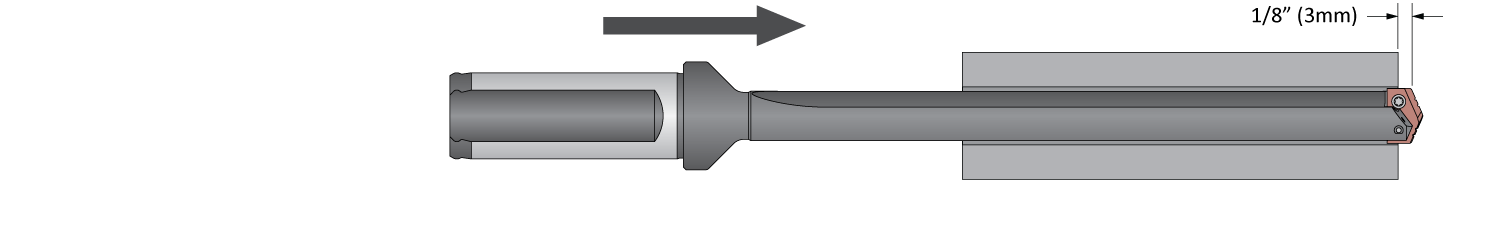

Step 5: Deep Hole Drilling at Breakout

50% RPM
75% IPR (mm/rev)

Details:
For through holes only:

Reduce speed by 50% and feed by 25% prior to breakout.
Do not break out more than 1/8" (3mm) past the full diameter of the drill.

Coolant: ON

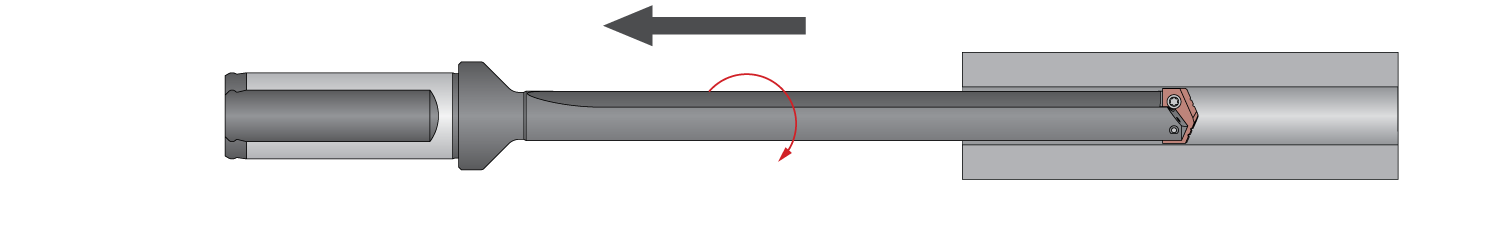

Step 6: Drill Retract

50 RPM max

Details:

Reduce speed to a maximum of 50 RPM before retracting from the hole.

Coolant: OFF

Tool failure can cause serious injury. To Prevent:
- When using holders without support bushing, use a short T-A® holder to establish an initial hole that is a minimum of 2 diameters deep.
- Do not rotate tool holders more than 50 RPM unless it is engaged with the workpiece or fixture.
Factory technical assistance is available for your applications through our Application Engineering Team.
