Deep Hole Drilling Guidelines

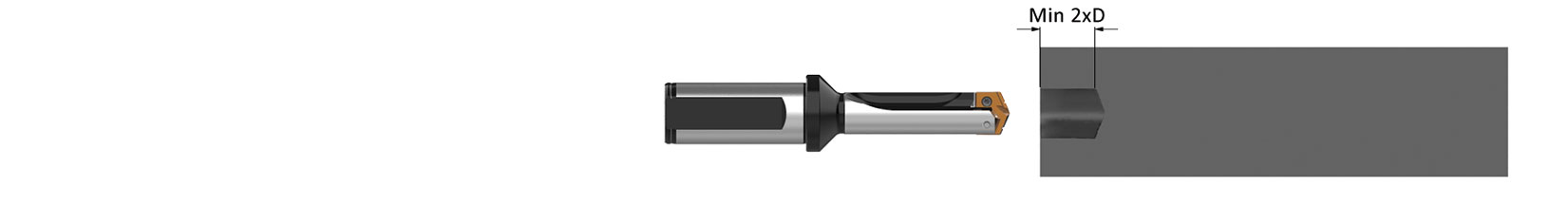

Step 1: Pilot Hole
  • 100 % RPM
  • 100% IPR (mm/rev)
Details:
  • Establish the pilot hole using the same diameter short drill to a depth of 2xD minimum.
  • Utilize a pilot drill with the same or larger included point angle.

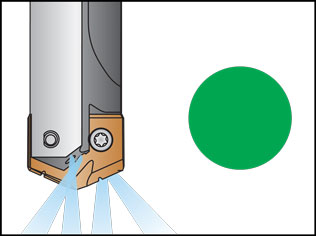

Coolant: ON

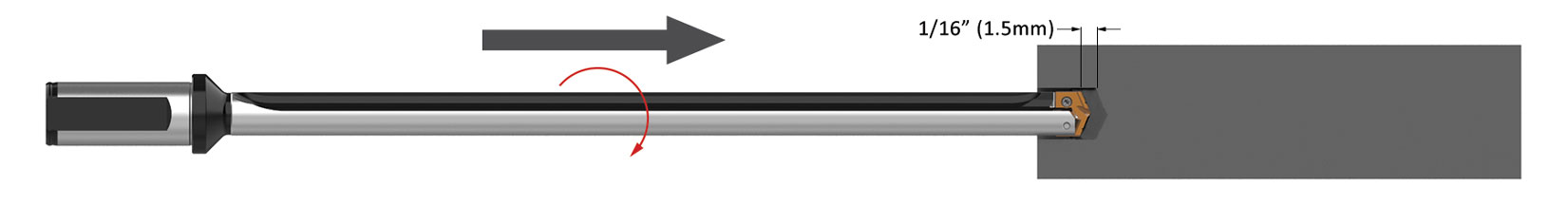

Step 2: Feed-in
  • 50 RPM max
  • ​12 IPM (300 mm/min)
Details:
  • Feed the longer drill within 1/16" (1.5mm) short of the established pilot hole bottom at a maximum of 50 RPM and 12 IPM (300 mm/min) feed rate.

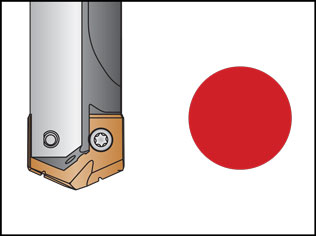

Coolant: OFF

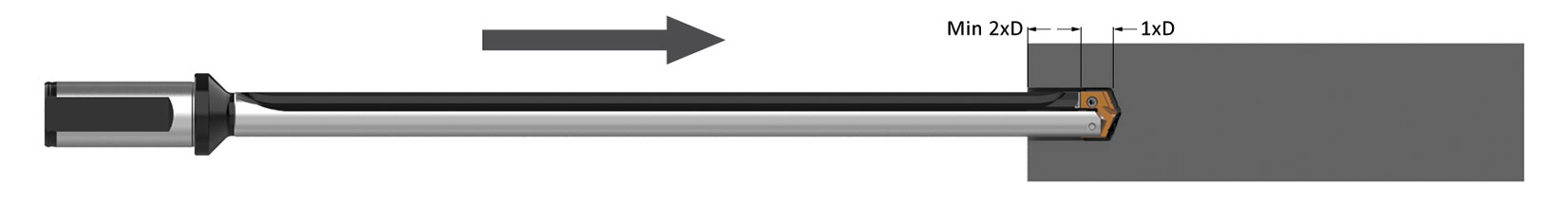

Step 3: Deep Hole Transition Drilling
  • 50 % RPM
  • 75% IPR (mm/rev)
Details:
  • Drill additional 1xD past the bottom of the pilot hole at 50% reduction of recommended speed and 25% reduction of recommended feed.
  • Minimum of one second dwell is required to meet full speed before feeding.
Coolant: ON

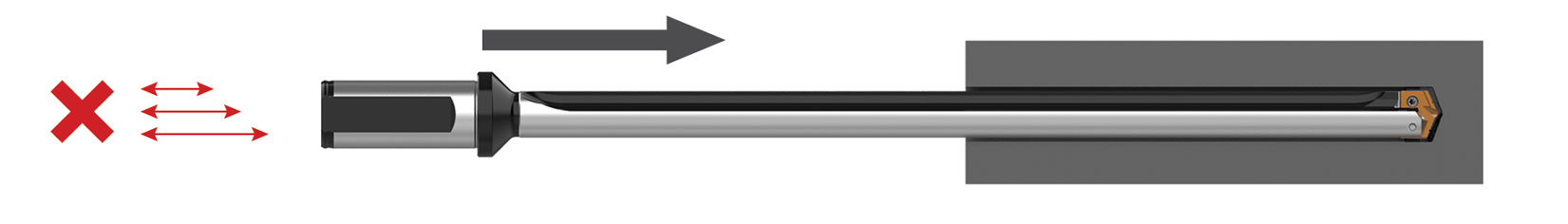

Step 4: Deep Hole Drilling - Blind
  • 100% RPM
  • 100% IPR (mm/rev)
Details:
  • Drill to full depth at recommended speed and feed for longer drill according to Allied speed and feed charts.
  • No peck cycle recommended.
Coolant: ON

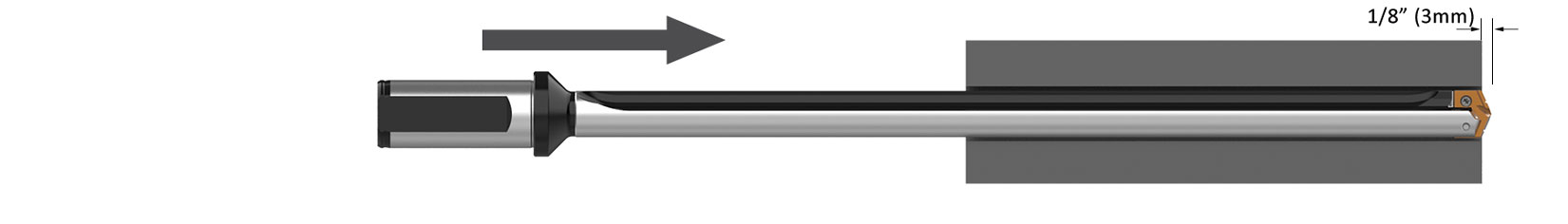

Step 5: Deep Hole Drilling - at Breakout
  • 50% RPM
  • 75% IPR (mm/rev)
Details:
For through holes only:
  • Reduce speed by 50% and feed by 25% prior to breakout.
  • Do not break out more than 1/8" (3mm) past the full diameter of the drill.
Coolant: ON

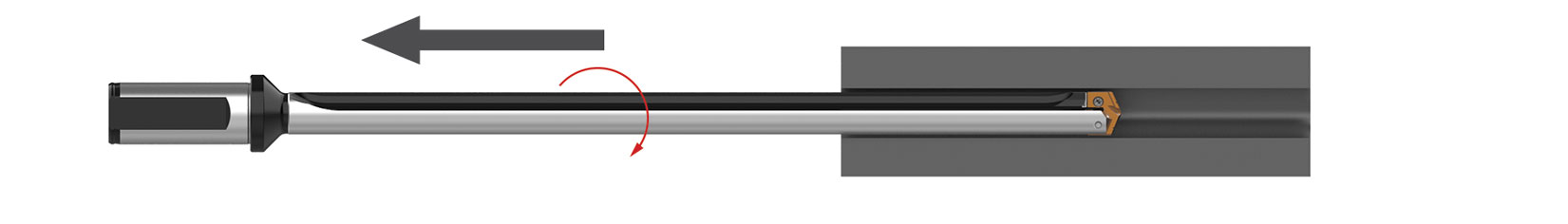

Step 6: Drill Retract
  • 50 RPM max
Details:
  • Reduce speed to a maximum of 50 RPM before retracting from the hole.
Coolant: OFF
Tool failure can cause serious injury. To prevent:
   -  When using holders without support bushing, use a short T-A Pro holder to establish an initial hole that is a minimum of 2 diameters deep.
   -  Do not rotate tool holders more than 50 RPM unless it is engaged with the workpiece or fixture.
Visit www.alliedmachine.com/DeepHoleGuidelines for the most up-to-date information and procedures.
Factory technical assistance is available for your specific applications through our Application Engineering department.
North and South America and Asia: 1-330-343-4285 ext: 7611   |   email: appeng@alliedmachine.com
Germany: +49 (0)7022 408-0 | email: info@wohlhaupter.de
United Kingdom:  +44 (0) 1384 400 900 Ext. 4 | engineering.eu@alliedmachine.com


This triangle is a safety hazard symbol. It alerts you to potential safety hazards that can cause tool failure and serious injury. When you see this symbol in the catalog, look for a related safety message that may be near this triangle or referred to in the nearby text.
