103088

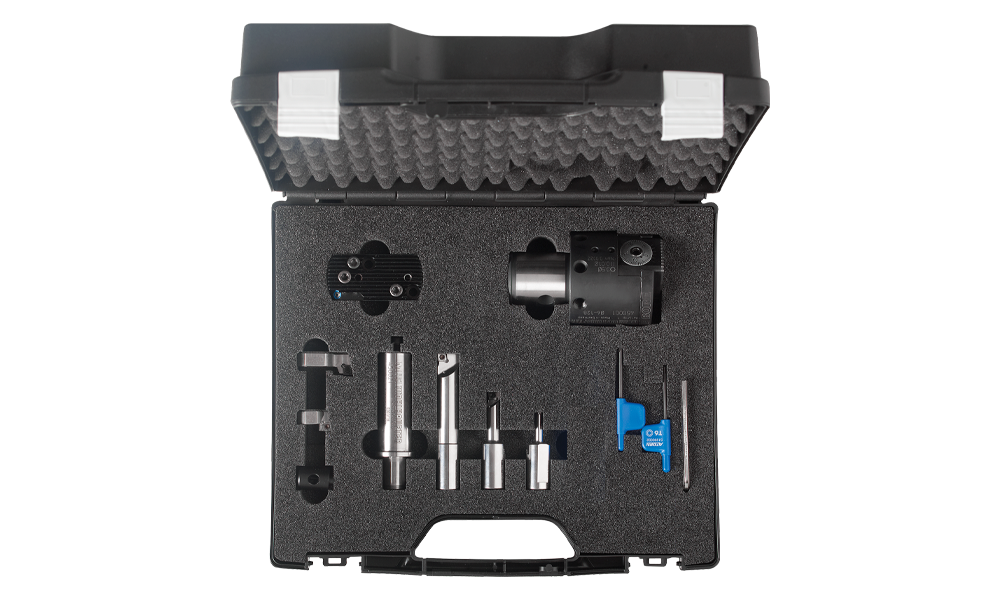

PRIME KIT F101 6-128MM
Wohlhaupter® Kit






Product Specifications
Type of ProductBoring Tool Kit
Head typePrimeBore
Adjustment TypeAnalog
Adjustment UnitMetric
Insert SizeForm 101
Minimum diameter inch0.236
Maximum diameter inch5.039
Minimum diameter mm6.00
Maximum diameter mm128.00


Items Included
450001     (Qty: 1)
Boring Head
PRIME, 3-208MM, MVS63-36
450026     (Qty: 1)

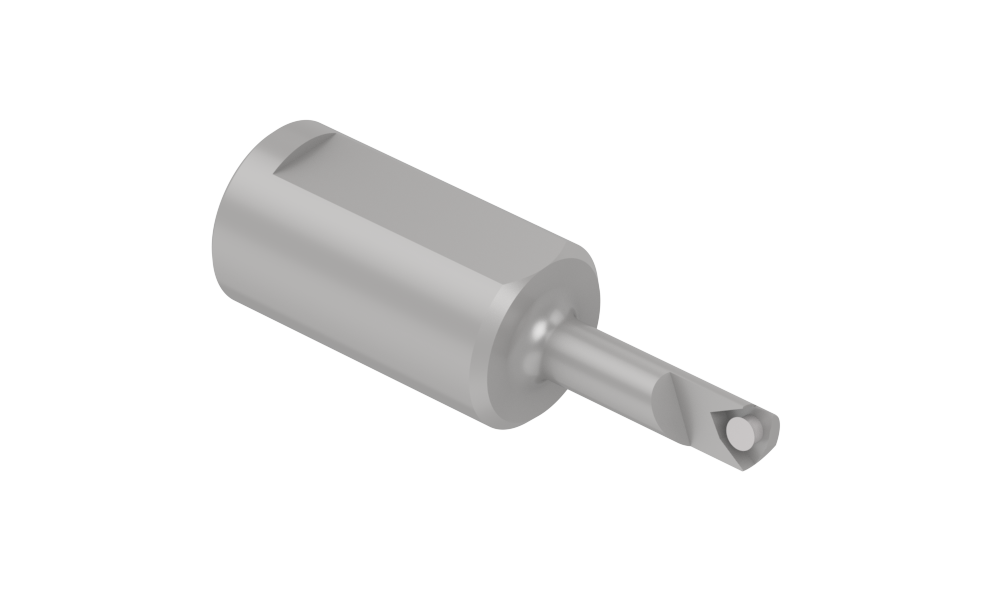

Boring Bar
F211 FROM 6MM X=22MM 92°
450027     (Qty: 1)
Boring Bar
F101 FROM 10MM X=35MM 92°
450028     (Qty: 1)

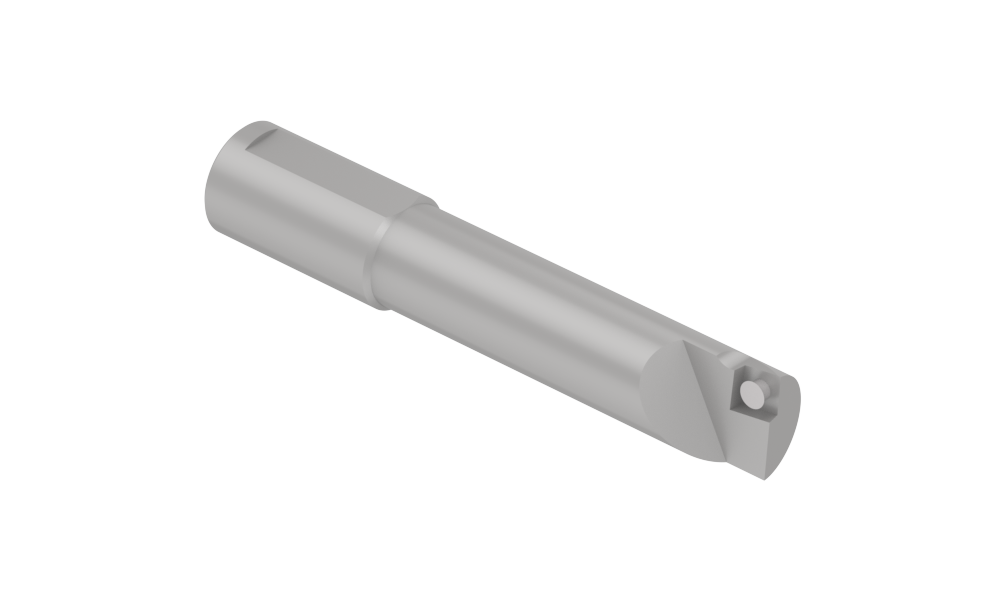

Boring Bar
F101 FROM 16MM X=60MM 92°
450021     (Qty: 1)

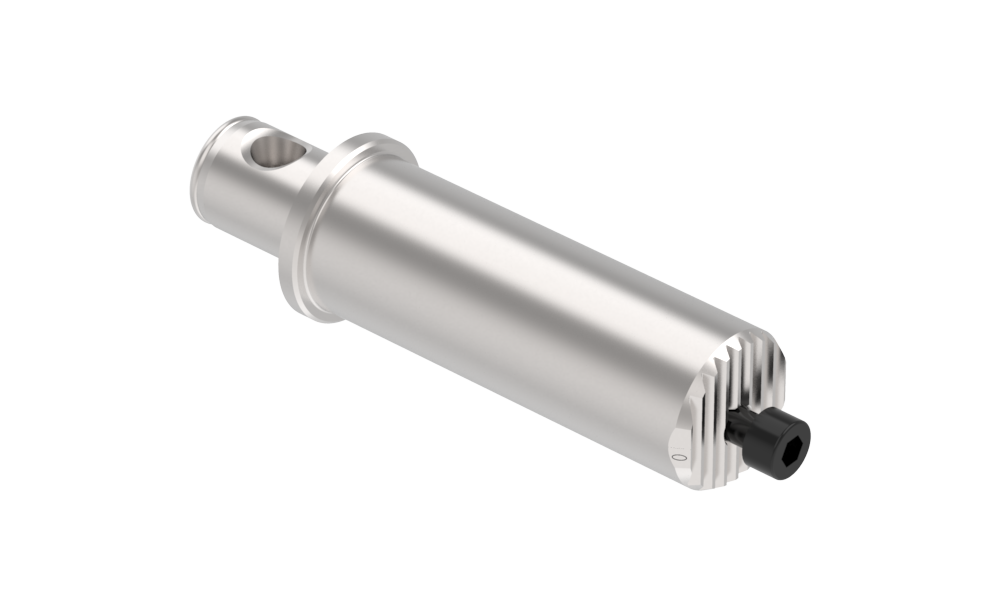

Serrated Tool Body
A24-65 MVS27-16 X=68MM
450024     (Qty: 1)
Serrated Slide
A65-128 X=14,5MM
450022     (Qty: 1)

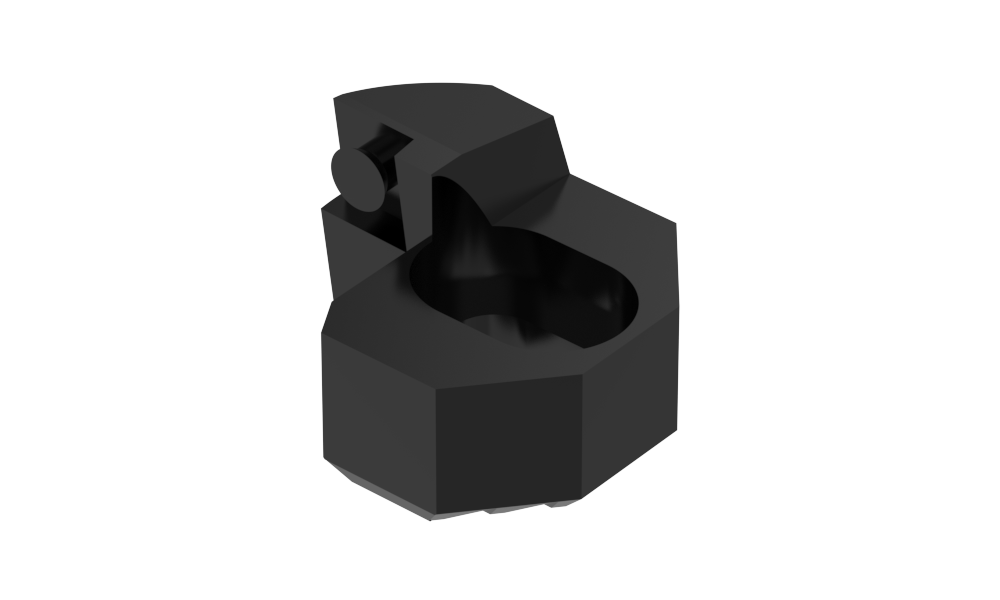

Insert Holder
F101 FOR BORING FROM 24MM 92°
450023     (Qty: 1)
Insert Holder
F101 FOR BORING FROM 40MM 92°
450125     (Qty: 1)

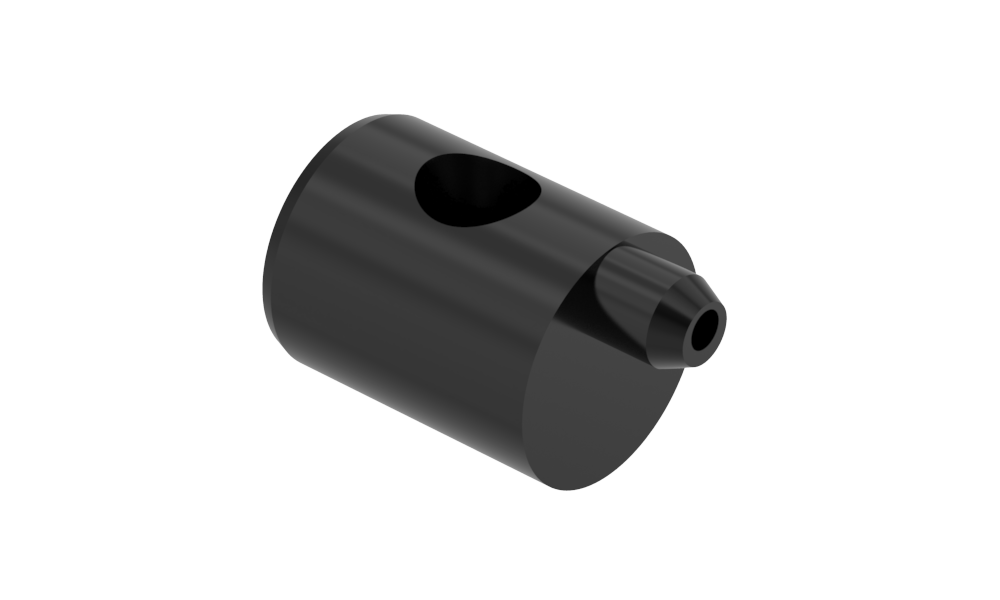

Coolant Delivery Section
COOLANT ADAPTOR
003195     (Qty: 1)
Service Key
UPA WRENCH
515451     (Qty: 1)
Service Key
OBS T6
515452     (Qty: 1)
Service Key
OBS T8
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)5.7
CategoryStocked
